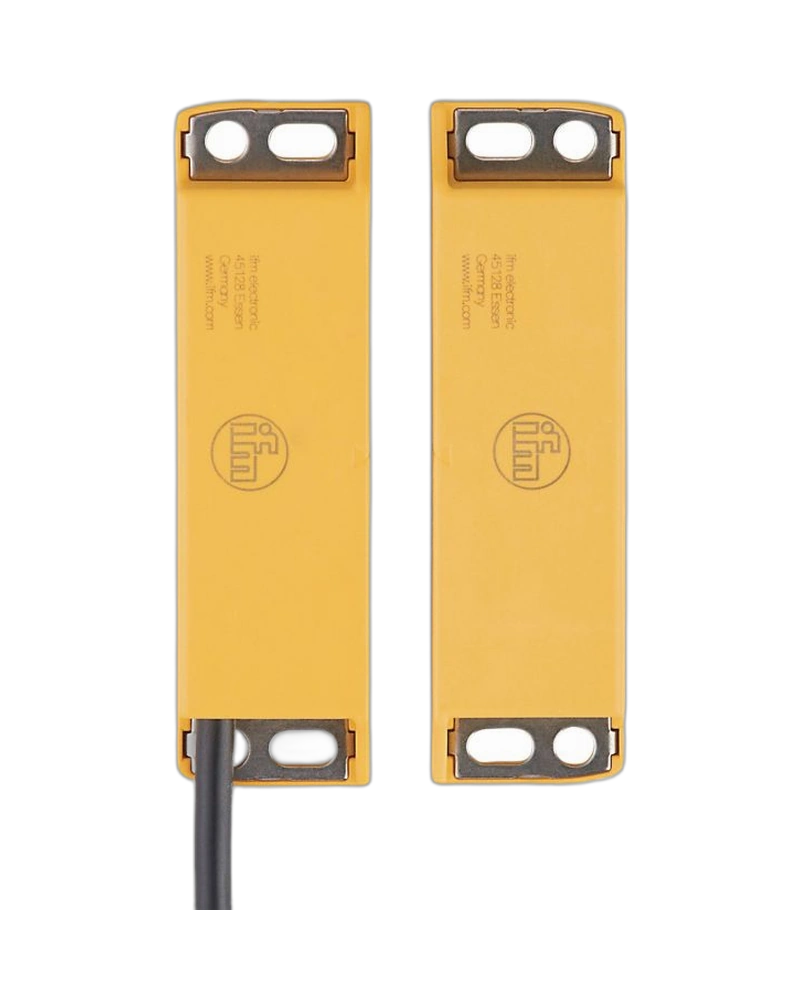

The IFM MN500S is a magnetically coded safety sensor designed for monitoring movable machine guards. It uses a coded actuator so that ordinary magnets cannot easily trigger the safety sensor. The sensor provides two normally open potential-free contacts. Its 88 × 25 × 13 mm rectangular construction supports installation on safety doors and guards. The 8 mm sensing range provides reliable coded-actuator detection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN500S uses magnetically coded sensing to monitor protective doors and guards. The coded actuator provides enhanced resistance to simple manipulation. Two normally open potential-free contacts provide safety-related switching information. The sensor can be connected to a suitable safety evaluation unit. This makes it suitable for machine-guard monitoring.
The rectangular sensor measures approximately 88 × 25 × 13 mm. Its compact format allows mounting on safety doors and protective guards. The sensing system uses a defined coded actuator. The actuator and sensor are positioned according to the specified sensing range. This arrangement supports reliable guard-position detection.
Magnetically coded sensing provides a practical alternative to conventional mechanical safety switches. The sensor is designed for continuous industrial operation. Suitable evaluation units can be used to achieve high safety performance levels. The system supports machine access monitoring. This helps prevent operation when the monitored guard is in an unsafe state.
Magnetically coded technology
8 mm sensing range
2 normally open contacts
Potential-free outputs
88 × 25 × 13 mm housing
Rectangular construction
Coded actuator system
Guard monitoring
Safety-door monitoring
Non-contact detection
IP67 protection
IP69K protection with protected cable routing
150 Hz switching frequency
6 m cable version
PA housing
Safety doors
Machine guards
Access doors
Protective covers
Packaging machinery
Machine tools
Production cells
Robotic cells
Industrial automation
Guard-position monitoring
The coded actuator is specifically designed to reduce unintended or unauthorized actuation. The sensor responds to the defined magnetic coding. This provides improved safety compared with simple magnetic switches. The non-contact principle reduces mechanical wear. The arrangement is suitable for repeated safety-door operation.
The MN500S can be connected to suitable safety evaluation units. When correctly evaluated, the magnetically coded system can support high safety-performance levels. The potential-free contacts simplify connection to safety circuits. IP protection supports industrial installation. This makes the sensor suitable for machine safeguarding.
| Specification | MN500S |
|---|---|
| Product Type | Magnetically coded safety sensor |
| Model | MN500S |
| Sensing Principle | Magnetically coded |
| Sensing Range | 8 mm |
| Actuator | Coded magnetic actuator |
| Output Contacts | 2 × normally open |
| Contact Type | Potential-free |
| Housing Shape | Rectangular |
| Housing Dimensions | 88 × 25 × 13 mm |
| Housing Material | PA |
| Switching Frequency | 150 Hz |
| Cable Length | 2 m PVC |
| Protection | IP67 |
| Additional Protection | IP69K with protected cable routing |
| Operating Mode | Continuous |
| Safety Function | Guard position monitoring |
| Application | Safety-door monitoring |
| Output Type | Safety contact |
| Contact Arrangement | Dual NO |
| Mounting | Surface mounting |
| Actuator Type | Coded |
| Detection | Non-contact |
| Ambient Range | -25...80 °C |
| Humidity | 5...95% briefly |
| Permanent Humidity | 5...70% |
| Air Pressure | 80...106 kPa |
| Max. Altitude | 2000 m |
| Salt Spray | No |
| Shock Resistance | 30 g / 11 ms |
| Vibration Resistance | 10 g / 10...55 Hz |
