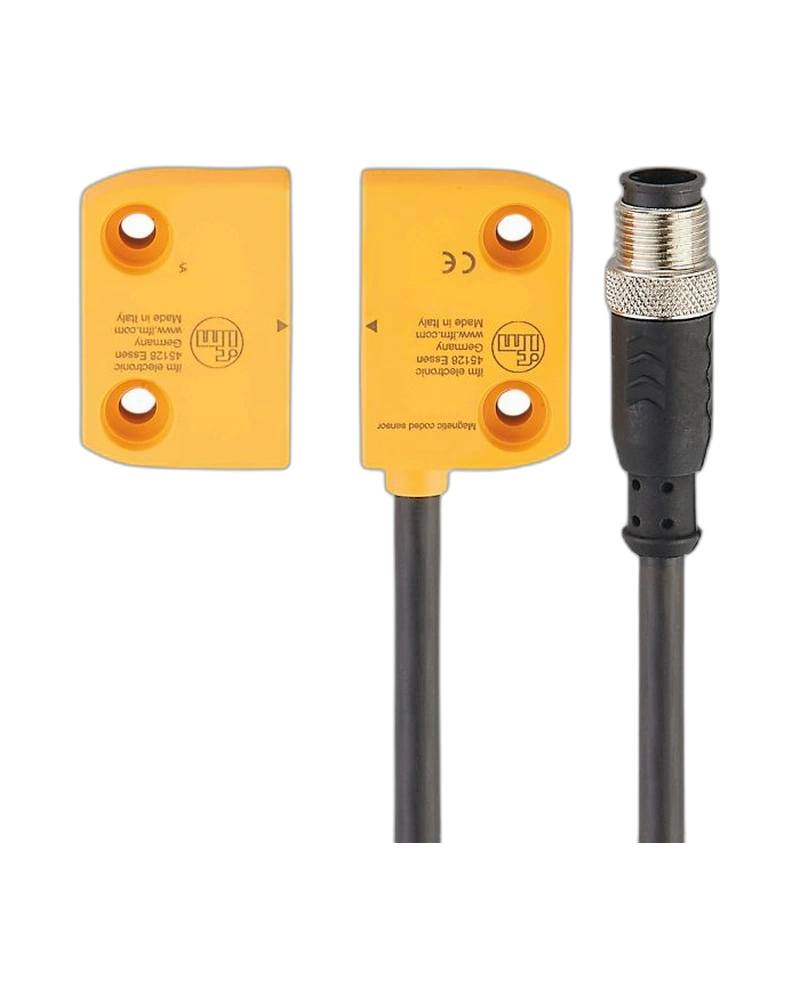

The IFM MN207S is a magnetically coded safety sensor with a 5 mm sensing range. It provides two normally open potential-free contacts for safety-door monitoring. The sensor uses a 0.1 m PVC cable with a 4-pin M12 connector. Its 36 × 13 × 26 mm PA housing supports compact non-flush mounting. IP67 and IP69K protection provide strong environmental protection when cable routing is suitably protected.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN207S uses a coded magnetic actuator to detect the position of a protective guard. The coded principle improves tamper resistance compared with basic magnetic switches. A defined 5 mm sensing range provides reliable actuator detection. Two normally open contacts provide safety-circuit signals. This makes the sensor suitable for machine guarding.
The sensor uses a 36 × 13 × 26 mm rectangular PA housing. Its non-flush design supports installation on safety doors and guards. The 0.1 m cable provides a short connection to the M12 plug. The coded actuator is supplied with the product. This arrangement simplifies compact safety-system installation.
The MN207S provides IP67 and IP69K protection with protected cable routing. It withstands 30 g shock and 10 g vibration according to its specified tests. Its mission time is 20 years. The PA housing provides a lightweight construction. These characteristics support long-term industrial safety applications.
5 mm sensing range
Magnetically coded actuator
2 × normally open contacts
Potential-free outputs
36 × 13 × 26 mm housing
PA housing
0.1 m PVC cable
M12 4-pin connector
IP67 protection
IP69K protection
150 Hz switching frequency
Non-flush mounting
30 g shock resistance
10 g vibration resistance
20-year mission time
Safety doors
Machine guards
Access protection
Packaging machines
Robotic cells
Machine tools
Production lines
Protective covers
Industrial automation
Machine safety systems
The MN207S provides coded non-contact guard monitoring. The coded actuator reduces the risk of simple magnetic manipulation. Dual safety contacts provide switching information to the evaluation system. Its compact construction makes it suitable for restricted mounting areas. This supports reliable machine-access protection.
| Specification | MN207S |
|---|---|
| Product Type | Magnetically coded safety sensor |
| Model | MN207S |
| Order Code | MN14005-AKOG/L/0.1m/-H/US |
| Sensing Principle | Magnetically coded |
| Sensing Range | 5 mm |
| Output Function | 2 × normally open |
| Contact Type | Potential-free |
| Housing | Rectangular |
| Dimensions | 36 × 13 × 26 mm |
| Housing Material | PA |
| Mounting | Non-flush |
| Cable | 0.1 m PVC |
| Cable Diameter | 5 mm |
| Connector | M12 |
| Connector Pins | 4 |
| Switching Frequency | 150 Hz |
| Protection | IP67 |
| Additional Protection | IP69K |
| Cable Routing | Protected |
| Ambient Temperature | -25...80 °C |
| Shock Resistance | 30 g / 11 ms |
| Vibration Resistance | 10 g / 10...55 Hz |
| Mission Time | 20 years |
| Mission Time | ≤175200 h |
| B10D | 20,000,000 without load |
| Actuator | Coded target |
| Safety Function | Guard monitoring |
| Detection | Non-contact |
| Pack Quantity | 1 |
