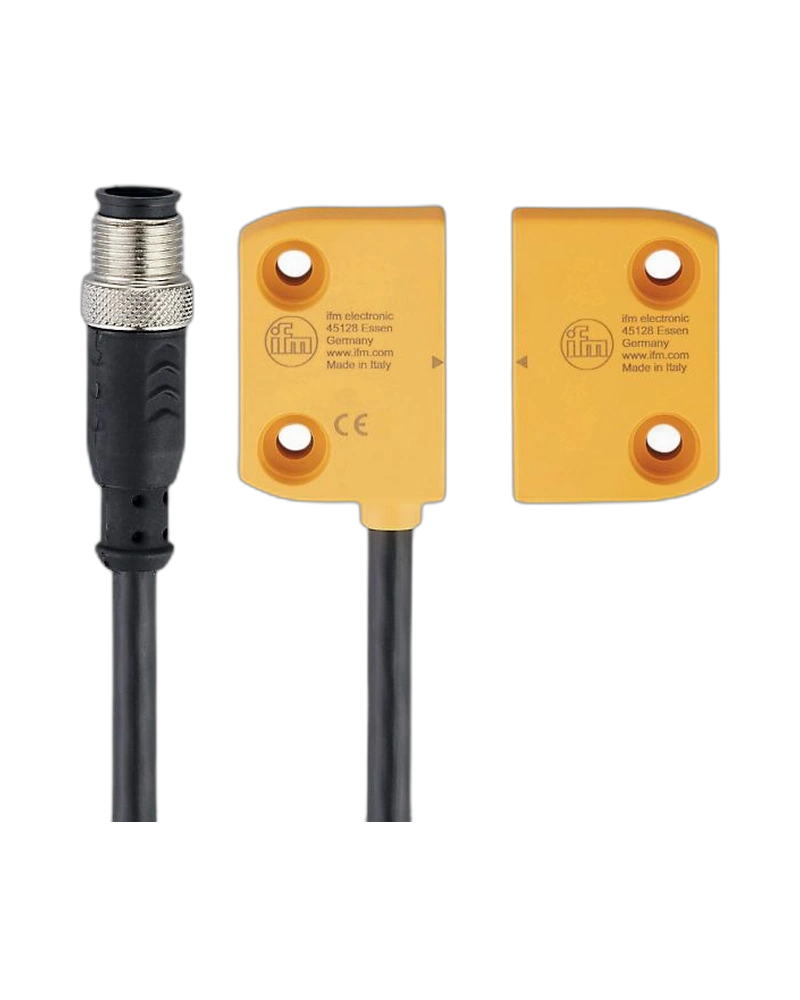

The IFM MN203S is a compact magnetically coded safety sensor with a 5 mm sensing range. It provides two normally open potential-free safety contacts. The sensor uses a 0.1 m PVC cable and a 4-pin M12 connector. Its 36 × 13 × 26 mm PA housing is designed for non-flush installation. IP67 and IP69K protection support demanding machine-safety applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MN203S detects a defined coded actuator without mechanical contact. Its 5 mm sensing range provides a controlled guard-position detection zone. Two normally open potential-free contacts support safety-circuit integration. The coded actuator reduces the possibility of simple magnetic bypassing. This makes the model suitable for machine access monitoring.
The sensor measures 36 × 13 × 26 mm. Its rectangular housing allows installation on machine guards and doors. The sensor is non-flush mountable. The 0.1 m cable with M12 connector simplifies connection to suitable safety wiring. This provides a compact and serviceable installation arrangement.
The MN203S is rated IP67 and IP69K when the cable is properly protected. It withstands 30 g shock and 10 g vibration within its specified test conditions. The operating environment supports temperatures from -25...80 °C. The PA housing provides a lightweight safety-sensor construction. These features support industrial guard-monitoring applications.
5 mm sensing range
Coded magnetic actuator
2 × normally open contacts
Potential-free contacts
36 × 13 × 26 mm housing
PA housing
0.1 m PVC cable
4-pin M12 connector
IP67 protection
IP69K protection
150 Hz switching frequency
Non-flush installation
30 g shock resistance
10 g vibration resistance
Safety evaluation compatible
Safety doors
Machine guards
Protective covers
Access monitoring
Packaging machines
Robotic cells
Machine tools
Production machinery
Safety circuits
Industrial automation
The MN203S provides non-contact monitoring of movable machine guards. Its coded actuator system improves resistance to unintended triggering. The dual contacts provide safety-related switching information. Suitable safety evaluation units can process the sensor signals. This supports reliable machine-access protection.
| Specification | MN203S |
|---|---|
| Product Type | Magnetically coded safety sensor |
| Model | MN203S |
| Order Code | MN14005-AKOG/0.1m/-H/US |
| Sensing Principle | Magnetically coded |
| Sensing Range | 5 mm |
| Defined Actuator Range | 5 mm |
| Output Contacts | 2 × normally open |
| Contact Type | Potential-free |
| Housing | Rectangular |
| Dimensions | 36 × 13 × 26 mm |
| Housing Material | PA |
| Mounting | Non-flush |
| Cable Length | 0.1 m |
| Cable Material | PVC |
| Connector | M12 |
| Connector Contacts | 4 |
| Switching Frequency | 150 Hz |
| Protection | IP67 |
| Additional Protection | IP69K |
| Cable Routing | Protected |
| Ambient Temperature | -25...80 °C |
| Shock Resistance | 30 g / 11 ms |
| Vibration Resistance | 10 g / 10...55 Hz |
| Mission Time | 20 years |
| Mission Time Hours | ≤175,200 h |
| B10D | 20,000,000 without load |
| Actuator | Coded target |
| Safety Function | Guard monitoring |
| Detection Type | Non-contact |
| Pack Quantity | 1 |
