The IFM MQ2005 is a compact magnetic-field sensor designed for reliable position detection in industrial automation. It provides a ±5 mm sensing range with configurable PNP/NPN normally-open or normally-closed switching. The sensor operates from a 10–30 V DC supply and supports switching frequencies up to 200 Hz. Its compact 20 × 8 × 32 mm cast-zinc housing is suitable for space-constrained installations. IP65/IP67 protection and integrated electrical protection support dependable machine operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MQ2005 detects magnetic fields for non-contact position monitoring. Its specified measuring range is ±5 mm around the magnetic operating position. This makes it suitable for detecting the position of moving machine components. The electronic switching principle avoids mechanical contact during normal operation. It can therefore be used for repetitive industrial position-detection tasks.
The MQ2005 supports PNP/NPN output configurations with NO/NC functionality. This provides flexibility when integrating the sensor into different control architectures. The sensor supports three electrical pins for its compact connection arrangement. Switching frequencies up to 200 Hz allow use in moderately fast machine movements. This flexibility is useful for automation equipment requiring magnetic position feedback.

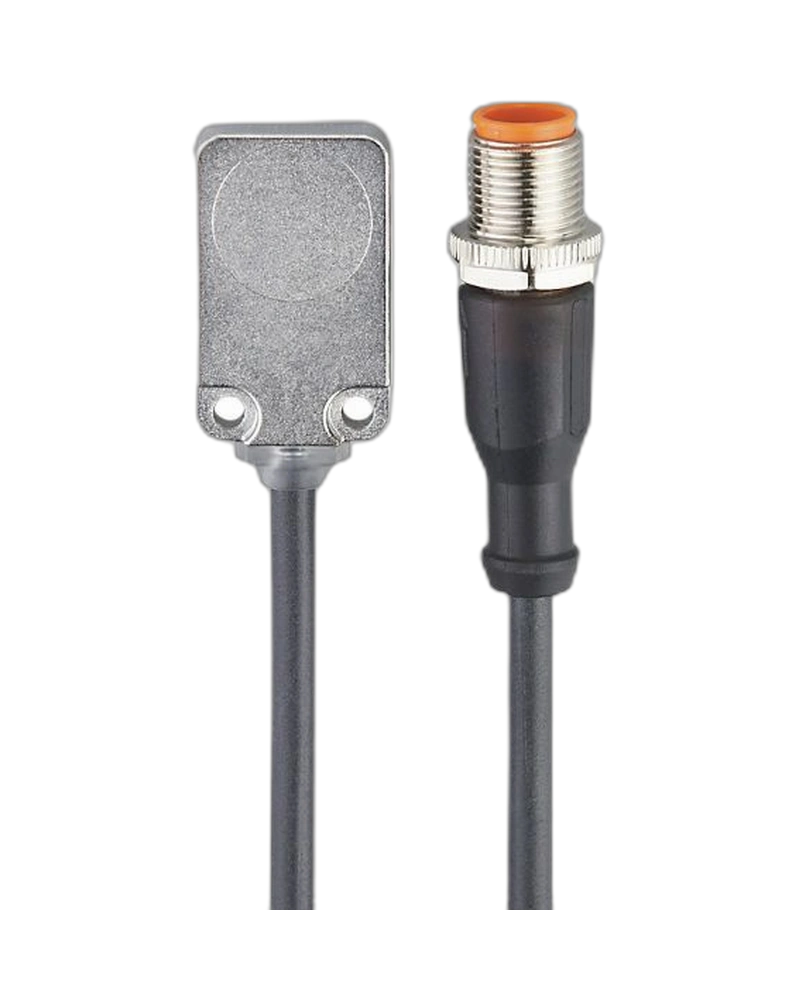

The sensor uses a rectangular cast-zinc housing measuring 20 × 8 × 32 mm. Its compact construction allows installation where cylindrical sensors may not fit conveniently. An LED provides local switching-status indication. The sensor can be connected through cable or M12-related connection configurations depending on the supplied version. Its compact form factor is suitable for machine-position monitoring.
±5 mm magnetic-field measuring range
PNP/NPN output configuration
NO/NC switching function
10–30 V DC supply
Up to 200 Hz switching frequency
20 × 8 × 32 mm housing
Cast-zinc housing
LED switching indication
3-pin connection
PUR cable insulation
IP65/IP67 protection
Short-circuit protection
Overload protection
Machine position monitoring
Magnetic actuator detection
Industrial automation
Conveyor position detection
Mechanical movement monitoring
Packaging machinery
Assembly equipment
Machine-status detection
The MQ2005 includes short-circuit and overload protection for improved electrical reliability. Its 10–30 V DC operating range supports common industrial control voltages. The compact sensor can be integrated into PLC-based automation systems. LED indication provides a quick visual check of switching status. These features simplify installation and routine machine diagnostics.
The compact rectangular housing provides several mounting possibilities in machine structures. IP65/IP67 protection allows the sensor to operate in environments exposed to dust and water. The cast-zinc body provides mechanical rigidity for industrial installations. The operating temperature range extends from -25 to 80 °C. This combination makes the MQ2005 suitable for general-purpose magnetic position sensing.
| Specification | MQ2005 |
|---|---|
| Product type | Magnetic sensor |
| Sensing principle | Magnetic field |
| Measuring range | ±5 mm |
| Output configuration | PNP/NPN |
| Switching function | NO/NC |
| Supply voltage | 10–30 V DC |
| Switching frequency | 200 Hz |
| Housing dimensions | 20 × 8 × 32 mm |
| Housing shape | Rectangular |
| Housing material | Cast zinc |
| Connection | Cable / M12 |
| Number of pins | 3 |
| Cable length | 0.3 m |
| Cable insulation | PUR |
| Status indication | LED |
| Protection rating | IP65/IP67 |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Sensor type | Magnetic field sensor |
| Installation type | Machine mounting |
| Detection method | Non-contact |
| Output signal | Digital switching |
| Magnetic target | Magnetic field |
| Typical application | Position detection |
| Operating environment | Industrial |
| Operating temperature | -25…80 °C |
| Electrical connection | 3-wire |
| Body construction | Compact rectangular |
| Manufacturer | IFM electronic |
| Model | MQ2005 |
