The IFM MQ2001 is a compact magnetic-field sensor for non-contact position detection. It provides a ±5 mm sensing range and a PNP normally-open output. The sensor operates from 10–30 V DC and supports switching frequencies up to 300 Hz. Its 20 × 8 × 32 mm cast-zinc housing is designed for compact machine installations. IP65/IP67 protection and short-circuit and overload protection improve operational reliability.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MQ2001 detects magnetic fields to determine the position of moving machine components. Its ±5 mm specified sensing range provides a defined magnetic detection zone. The non-contact operating principle reduces mechanical wear associated with physical switches. It is suitable for repetitive position-monitoring operations. The sensor is particularly useful where compact magnetic detection is required.
The MQ2001 provides a PNP normally-open switching output. Its maximum switching frequency is 300 Hz. The sensor is powered directly from a 10–30 V DC industrial supply. A three-pin connection arrangement supports straightforward machine integration. This makes the MQ2001 suitable for PLC and controller-based position monitoring.

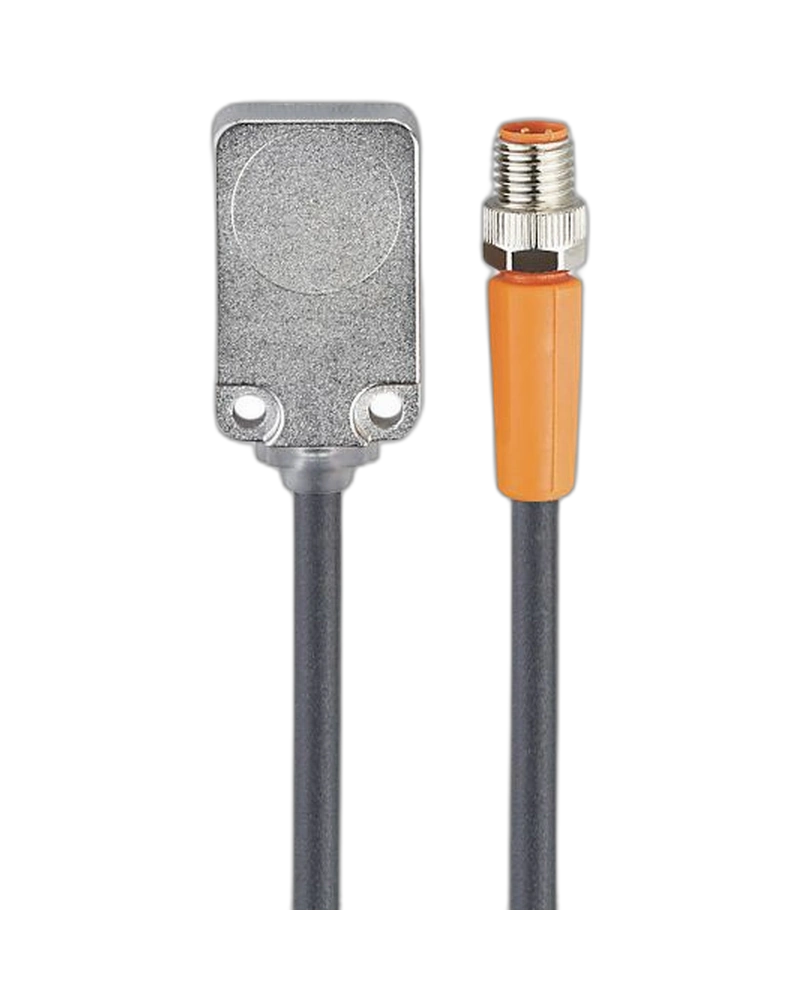

The sensor uses a 20 × 8 × 32 mm rectangular cast-zinc body. Its small dimensions allow installation in restricted machine spaces. An LED provides visual indication of the switching state. The connection arrangement includes an M8 interface with a 0.3 m cable. This construction provides a practical solution for compact automation equipment.
±5 mm measuring range
PNP normally-open output
10–30 V DC supply
300 Hz switching frequency
20 × 8 × 32 mm housing
Cast-zinc construction
M8 connection
0.3 m cable
PUR cable insulation
3-pin connection
LED status indication
IP65/IP67 protection
Short-circuit protection
Overload protection
Machine position sensing
Actuator position monitoring
Industrial automation
Conveyor systems
Assembly machinery
Packaging equipment
Motion detection
Machine status monitoring
The MQ2001 incorporates short-circuit and overload protection. Its 10–30 V DC operating range is compatible with common industrial control supplies. Reverse wiring and electrical faults can therefore be better managed during machine operation. The LED provides immediate visual feedback during commissioning. These features simplify integration into automated control systems.
The MQ2001 is rated for operation between -25 and 80 °C. IP65 and IP67 protection provide resistance to dust and water exposure. Its cast-zinc body supports robust industrial installation. The compact design is suitable for machine structures where installation space is limited. This makes the sensor appropriate for general industrial magnetic position detection.
| Specification | MQ2001 |
|---|---|
| Product type | Magnetic sensor |
| Sensing principle | Magnetic field |
| Measuring range | ±5 mm |
| Output configuration | PNP |
| Switching function | Normally open |
| Supply voltage | 10–30 V DC |
| Switching frequency | 300 Hz |
| Housing dimensions | 20 × 8 × 32 mm |
| Housing shape | Rectangular |
| Housing material | Cast zinc |
| Connection | M8 |
| Cable length | 0.3 m |
| Number of pins | 3 |
| Cable insulation | PUR |
| Status indication | LED |
| Protection rating | IP65/IP67 |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Protection class | III |
| Detection method | Magnetic field |
| Output signal | Digital switching |
| Electrical design | PNP |
| Switching mode | Normally open |
| Installation | Machine mounting |
| Operating temperature | -25…80 °C |
| Target type | Magnetic target |
| Body construction | Compact rectangular |
| Typical application | Position detection |
| Manufacturer | IFM electronic |
| Model | MQ2001 |
