The IFM ME5015 is a compact magnetic sensor with a 60 mm sensing range. It uses an NPN normally open output and a 2 m PUR cable. The sensor operates from 10...30 V DC and supports a 5000 Hz switching frequency. Its stainless-steel 316L housing provides robust mechanical protection. IP67 protection and a yellow switching LED support dependable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The ME5015 detects a specified magnetic actuator over a 60 mm sensing range. Its magnetic sensing principle provides non-contact position detection. A 1.2 mT magnetic sensitivity is specified for the sensing system. The normally open output provides a straightforward switching signal. This makes the sensor suitable for actuator and position monitoring.
The sensor operates from 10...30 V DC with less than 10 mA current consumption. Its NPN output supports 200 mA continuous current. The switching frequency reaches 5000 Hz. Short-circuit and overload protection are integrated. These characteristics support reliable high-speed machine operation.

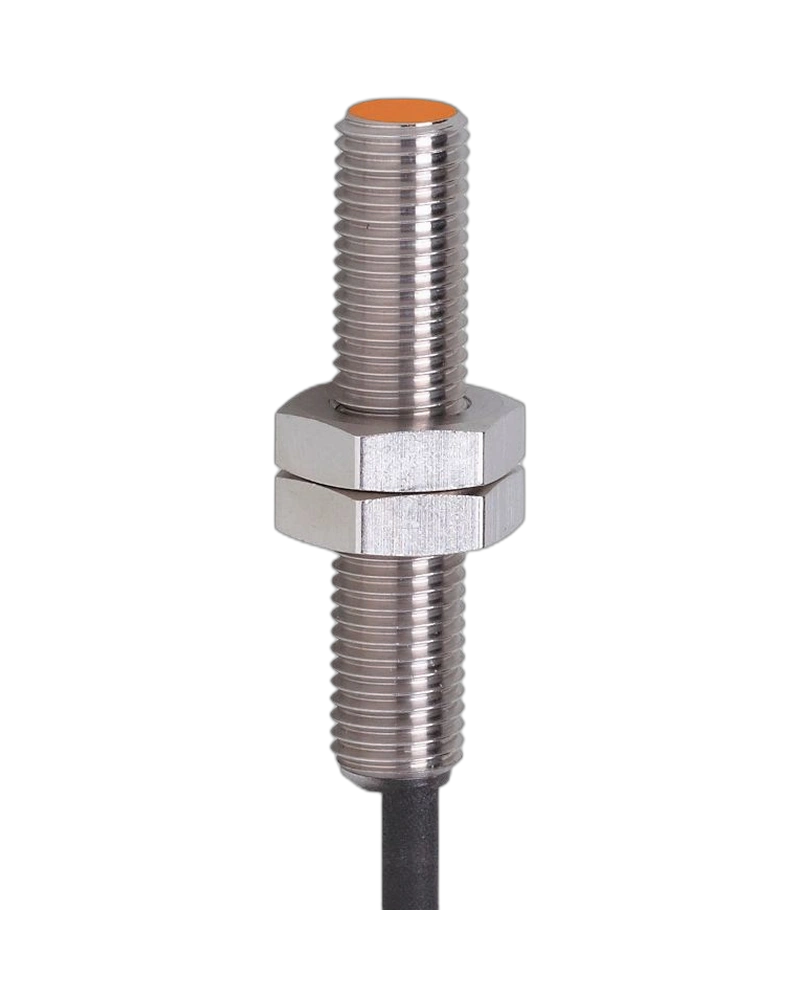

The ME5015 uses a stainless-steel 316L housing and stainless-steel active face. Its M8 × 1 threaded body has a 50 mm length. A 2 m PUR cable provides the electrical connection. IP67 protection supports industrial environments with dust and moisture. Two brass lock nuts are supplied for mounting.
60 mm sensing range
NPN normally open output
10...30 V DC
5000 Hz switching frequency
200 mA output
Stainless-steel 316L housing
M8 × 1 thread
50 mm length
2 m PUR cable
IP67 protection
Short-circuit protection
Overload protection
Yellow LED
1...10% hysteresis
Brass lock nuts
Position detection
Cylinder monitoring
Actuator sensing
Machine automation
Conveyor equipment
Packaging machinery
Production machinery
Industrial equipment
End-position monitoring
Automation systems
The 5000 Hz switching frequency allows the ME5015 to detect rapid magnetic actuator movements. This supports machines with frequent operating cycles. Non-contact sensing minimizes mechanical wear. The NPN output provides direct switching information to compatible controllers. The result is dependable position feedback.
The stainless-steel housing is suited to demanding machine environments. IP67 protection helps protect the sensor from dust and water exposure. The threaded M8 body provides secure mounting. The 2 m PUR cable simplifies electrical installation. The compact format is useful where mounting space is limited.
| Specification | ME5015 |
|---|---|
| Product Type | Magnetic sensor |
| Model | ME5015 |
| Electrical Design | NPN |
| Output Function | Normally open |
| Sensing Principle | Magnetic |
| Sensing Range | 60 mm |
| Reference Magnet | M4.0 |
| Magnetic Sensitivity | 1.2 mT |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Voltage Drop | 2.5 V |
| Output Current | 200 mA |
| Switching Frequency | 5000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 1...10% of Sr |
| Ambient Temperature | -25...75 °C |
| Protection Rating | IP67 |
| Housing | Threaded cylindrical |
| Housing Material | Stainless steel 316L |
| Sensing Face | Stainless steel |
| Dimensions | M8 × 1 / L=50 mm |
| Connection | 2 m PUR cable |
| Cable Conductors | 3 × 0.14 mm² |
| Status Indicator | Yellow LED |
| Mounting | Threaded |
| Accessories | 2 lock nuts |
