The IFM ME5011 is a cylindrical magnetic sensor with a 60 mm sensing range. It provides a PNP normally open output through a 2 m cable. The sensor operates from 10...30 V DC and switches at up to 5000 Hz. Its stainless-steel 316L housing provides robust construction for industrial installations. IP67 protection supports reliable operation in demanding machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The ME5011 uses magnetic-field detection for non-contact position sensing. Its 60 mm sensing range is referenced to the M4.0 magnetic actuator. A magnetic sensitivity of 1.2 mT provides defined actuator detection. The normally open PNP output produces a clear switching signal. This makes the sensor useful for machine-position applications.
The sensor operates from 10...30 V DC. Its current consumption is below 10 mA. The PNP output supports 200 mA continuous current and 5000 Hz switching. Short-circuit and overload protection are included. These characteristics support rapid and reliable switching operation.

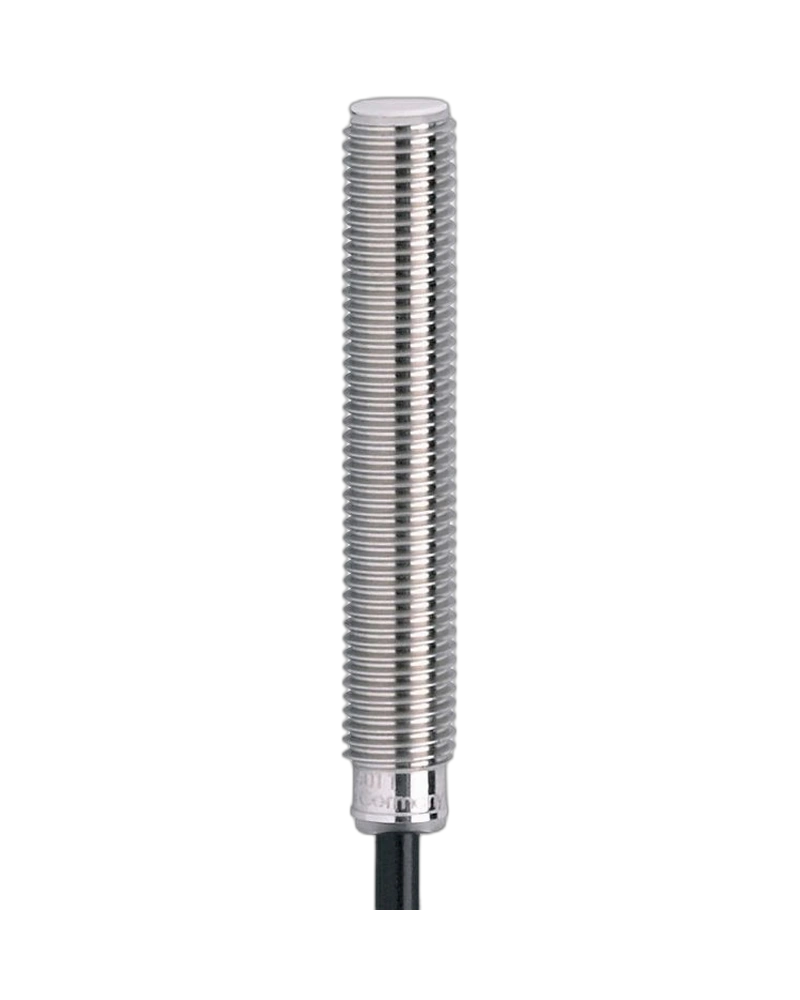

The ME5011 uses an M8 × 1 threaded stainless-steel housing. The sensor length is 50 mm. A 2 m cable provides a permanent electrical connection. The active sensing face is designed for magnetic detection. IP67 protection supports industrial use.
60 mm sensing range
PNP normally open output
10...30 V DC
5000 Hz switching frequency
200 mA output
M8 × 1 threaded body
Stainless-steel 316L housing
2 m cable
IP67 protection
Yellow switching LED
Short-circuit protection
Overload protection
Reverse-polarity protection
1.2 mT magnetic sensitivity
3-wire connection
Position sensing
Cylinder monitoring
Machine automation
Actuator detection
Conveyor systems
Packaging machinery
Production equipment
Machine tools
End-position monitoring
Industrial automation
The ME5011 supports fast switching with a 5000 Hz frequency. This enables reliable detection during repeated actuator movements. Non-contact operation reduces mechanical wear. The PNP output can be connected to compatible PLC inputs. This provides stable position information during machine cycles.
The stainless-steel housing provides mechanical strength and corrosion resistance. IP67 protection supports operation in dust and moisture. The threaded construction provides secure machine installation. The cable connection eliminates the need for a separate sensor socket. This makes the ME5011 a practical industrial magnetic sensor.
| Specification | ME5011 |
|---|---|
| Product Type | Magnetic sensor |
| Model | ME5011 |
| Electrical Design | PNP |
| Output Function | Normally open |
| Sensing Principle | Magnetic |
| Sensing Range | 60 mm |
| Reference Magnet | M4.0 |
| Magnetic Sensitivity | 1.2 mT |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Voltage Drop | 2.5 V |
| Output Current | 200 mA |
| Switching Frequency | 5000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Hysteresis | 1...10% |
| Ambient Temperature | -25...75 °C |
| Protection Rating | IP67 |
| Housing Type | Threaded cylinder |
| Housing Material | Stainless steel 316L |
| Thread | M8 × 1 |
| Length | 50 mm |
| Connection | 2 m cable |
| Wiring | 3-wire |
| Status LED | Yellow |
| Detection Method | Magnetic field |
| Mounting | Threaded |
| Application | Position detection |
