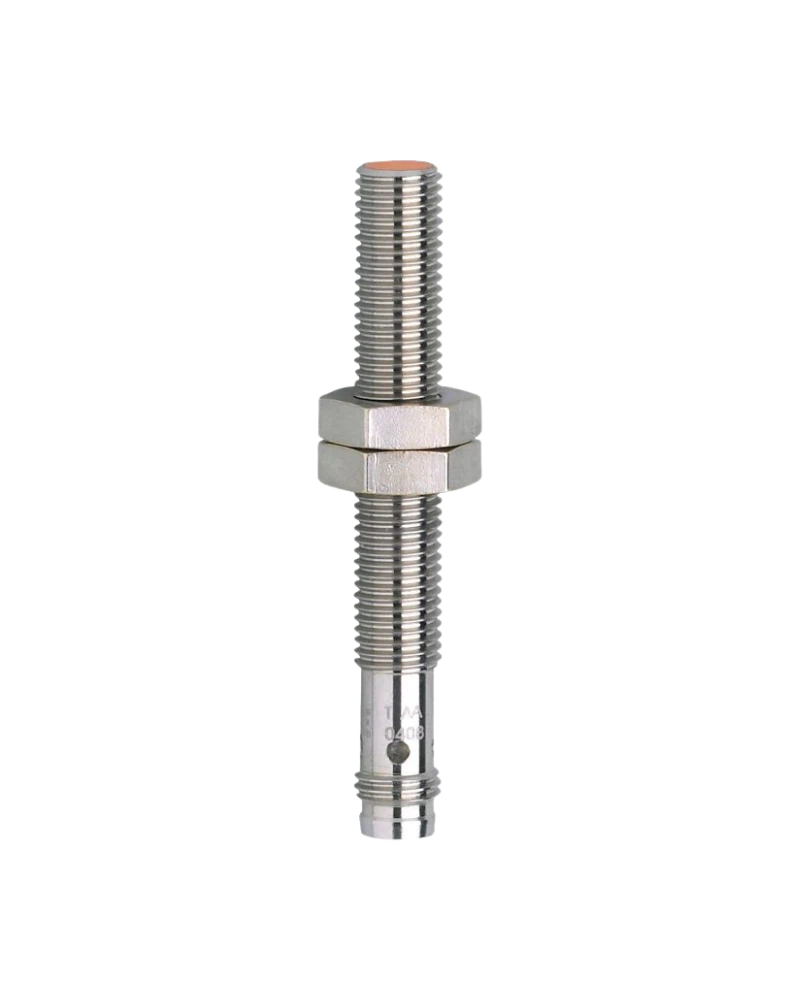

The IFM ME5010 is a cylindrical magnetic sensor designed for reliable position detection using a magnetic actuator. It provides a 60 mm sensing range when used with the specified M4.0 magnet. The sensor uses a PNP normally open output and operates from 10...30 V DC. Its stainless-steel housing and IP67 protection support demanding industrial installations. The M8 connector and 5000 Hz switching frequency make it suitable for fast machine-position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The ME5010 detects magnetic fields without mechanical contact with the sensing element. Its 60 mm sensing range provides flexible actuator positioning. Magnetic sensitivity is specified at 1.2 mT. The sensor uses a normally open switching function for straightforward control integration. This makes it suitable for position and end-position monitoring.
The sensor operates from 10...30 V DC with current consumption below 10 mA. Its PNP output supports up to 200 mA continuous current. The switching frequency reaches 5000 Hz for rapid signal response. Short-circuit and overload protection improve electrical reliability. Reverse-polarity protection is also provided.
The ME5010 uses a stainless-steel 316L housing with an orange PBT sensing face. Its M8 × 1 threaded body provides secure mechanical installation. The M8 connector uses gold-plated contacts. IP67 protection supports operation in dusty and wet industrial environments. Two lock nuts are supplied for installation.
60 mm sensing range
PNP normally open output
10...30 V DC supply
5000 Hz switching frequency
200 mA output current
1.2 mT magnetic sensitivity
Stainless-steel 316L housing
Orange PBT sensing face
M8 × 1 threaded body
M8 connector
Gold-plated contacts
IP67 protection
Short-circuit protection
Overload protection
Reverse-polarity protection
Yellow switching LED
Cylinder position detection
Machine position monitoring
End-position detection
Industrial automation
Material handling
Machine tools
Conveyor equipment
Actuator monitoring
Automation machinery
Production equipment
The high switching frequency allows the ME5010 to respond quickly to changing magnetic positions. The sensor can therefore be used where actuators move repeatedly at high speed. Non-contact sensing eliminates mechanical switching wear. The long 60 mm range provides installation flexibility. These characteristics support continuous machine operation.
The stainless-steel construction provides strong mechanical resistance in industrial environments. IP67 protection helps protect the electronics against dust and temporary water exposure. Gold-plated contacts support reliable electrical connection. Integrated protection functions help reduce damage from electrical faults. The ME5010 is therefore suitable for demanding position-sensing applications.
| Specification | ME5010 |
|---|---|
| Product Type | Magnetic sensor |
| Model | ME5010 |
| Electrical Design | PNP |
| Output Function | Normally open |
| Sensing Principle | Magnetic field |
| Sensing Range | 60 mm |
| Reference Actuator | Magnet M4.0 |
| Magnetic Sensitivity | 1.2 mT |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Voltage Drop | 2.5 V |
| Continuous Output Current | 200 mA |
| Switching Frequency | 5000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Short-Circuit Type | Non-latching |
| Hysteresis | 1...10% of Sr |
| Ambient Temperature | -25...75 °C |
| Protection Rating | IP67 |
| Housing Type | Threaded cylindrical |
| Housing Material | Stainless steel 1.4404/316L |
| Sensing Face | Orange PBT |
| Dimensions | M8 × 1 / L=60 mm |
| Connection | M8 connector |
| Connector Contacts | Gold-plated |
| Status Indication | Yellow LED |
| Mounting Accessories | 2 lock nuts |
| MTTF | 2935 years |
