A switching frequency of ≤ 1,500 Hz.
The output type is NPN. The operating voltage is 10….30 VDC, with load current of ≤ 200 mA.
No-load supply current is μ25 mA typ. A / at UB =24 V and leakage current is limited to ≤ 0.1 mA. Maximum ripple is ≤ 20% V / al / UB.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes. Ingress protection is rated IP64 (EN60529).
LED indicators is LE.
The housing material is PBTP. Dimensions are 10x31x60 mm.
Weight is 17 g.
The operating temperature range is - 25 °C…+ 55 °C (non-condensing). EMC compatibility is EN 60947-5-2.
Sensitivity adjustment is Teach-in.

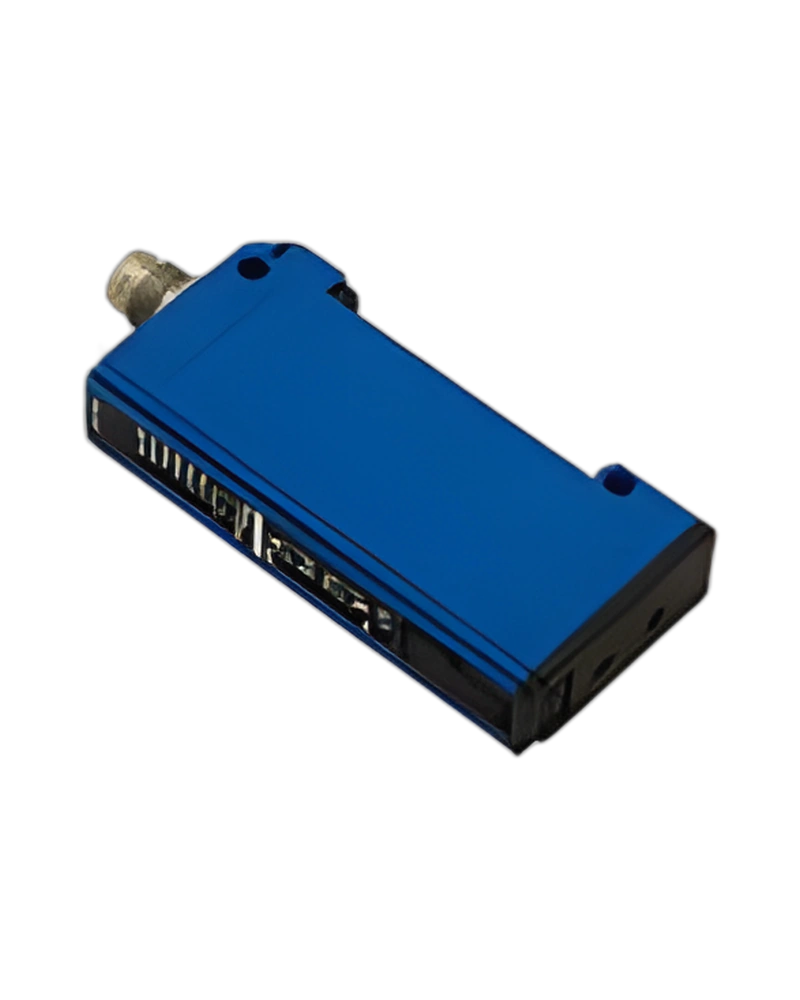

The manufacturer part number is FX4/0N-0F. This model is manufactured by M.D. Micro Detectors. Time to availability is 80 ms.
External-light interference is limited to 5.000 lx (Incandescent lamp), 10.000 lx (Sunlight).
For electrical integration, it provides output type NPN, operating voltage 10….30 VDC, switching frequency ≤ 1,500 Hz. The physical configuration includes PBTP housing, dimensions 10x31x60 mm. It is rated IP64 (EN60529) for an operating temperature range of - 25 °C…+ 55 °C (non-condensing).
| Specification | Details |
|---|---|
| Model | FX4/0N-0F |
| Manufacturer part number | FX4/0N-0F |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN |
| Switching frequency | ≤ 1,500 Hz |
| Weight | 17 g |
| Housing material | PBTP |
| Operating temperature | - 25 °C…+ 55 °C (non-condensing) |
| Dimensions | 10x31x60 mm |
| Hysteresis | 10% |
| Sensitivity adjustment | Teach-in |
| Thermal drift Sr | 0.2 % / °C |
| Degree of protection | IP64 (EN60529) |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 80 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤ 20% V / al / UB |
| External light interference | 5.000 lx (Incandescent lamp), 10.000 lx (Sunlight) |
| Operating voltage | 10….30 VDC |
| LED indicators | LE |
| Load current | ≤ 200 mA |
| No-load supply current | μ25 mA typ. A / at UB =24 V |
| Leakage current | ≤ 0.1 mA |
