The IFM MGT203 is a full-metal magnetic sensor designed for reliable long-range position detection. It provides a 70 mm sensing range with the M4.0 reference magnet. The sensor uses a PNP normally-open output and operates from 10–30 V DC. Its M18 × 1 stainless-steel housing provides robust mechanical construction. IP65, IP68 and IP69K protection makes it suitable for hygienic and wet industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The MGT203 provides a 70 mm sensing range with the specified M4.0 magnet. This allows position detection even when the sensor cannot be mounted directly against the moving component. Its magnetic sensing principle provides non-contact operation. A response sensitivity of 0.9 mT supports reliable magnetic switching. The sensor is suitable for machine-position and movement monitoring.

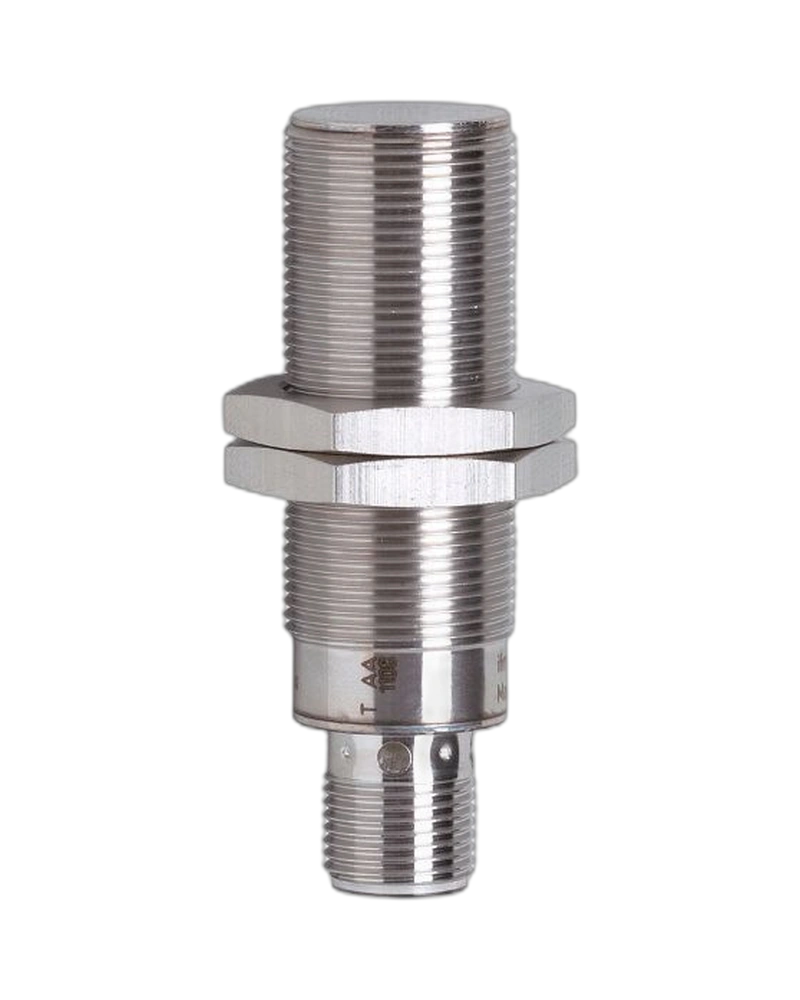

The MGT203 uses a full-metal stainless-steel housing with an M18 × 1 threaded body. The sensing face is also made from stainless steel. A PEI LED window provides visible switching indication. Two stainless-steel lock nuts are supplied for secure mounting. This design provides strong mechanical resistance in demanding installations.
The sensor operates from 10–30 V DC and consumes less than 10 mA. Its PNP normally-open output supports 100 mA continuous current. The switching frequency reaches 5000 Hz. Short-circuit and overload protection are integrated. These characteristics provide fast and reliable position feedback.
70 mm sensing range
M4.0 reference magnet
PNP normally-open output
10–30 V DC
100 mA continuous current
5000 Hz switching frequency
0.9 mT sensitivity
M18 × 1 threaded body
Full-metal construction
Stainless-steel housing
Gold-plated M12 contacts
IP65/IP68/IP69K
Yellow LED indication
Short-circuit protection
Overload protection
Food-processing machinery
Hygienic automation
Wet-area equipment
Machine position monitoring
Conveyor systems
Packaging machinery
Movement detection
Industrial automation
The MGT203 has an M18 × 1 threaded body with a 60 mm overall length. Its stainless-steel housing provides a robust mounting platform. Two lock nuts allow secure mechanical adjustment. The M12 connector provides a standard detachable electrical connection. This configuration supports straightforward installation in industrial machines.
The sensor supports ambient temperatures from 0 to 100 °C. IP65, IP68 and IP69K protection support use in wet and hygienic environments. The full-metal body is resistant to mechanical impact and vibration. Its design is suitable for applications where high environmental protection is required. The sensor therefore fits demanding food, beverage and industrial automation installations.
| Specification | MGT203 |
|---|---|
| Product type | Full-metal magnetic sensor |
| Product code | MGK3070-BPKG/AM/V4A/G/US |
| Sensing principle | Magnetic |
| Electrical design | PNP |
| Output function | Normally open |
| Sensing range | 70 mm |
| Reference magnet | M4.0 |
| Response sensitivity | 0.9 mT |
| Hysteresis | 1–10% of Sr |
| Operating voltage | 10–30 V DC |
| Current consumption | <10 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Voltage drop | 2.5 V |
| Continuous current | 100 mA |
| Switching frequency | 5000 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Pressure rating | 100 bar |
| Housing type | Threaded |
| Thread | M18 × 1 |
| Overall length | 60 mm |
| Housing material | Stainless steel 316L/1.4404 |
| Sensing-face material | Stainless steel 316L/1.4404 |
| LED window | PEI |
| Connection | M12 A-coded |
| Contacts | Gold-plated |
| Status indication | Yellow LED |
| Ambient temperature | 0…100 °C |
| Protection rating | IP65/IP68/IP69K |
