The IFM MFT204 is a full-metal magnetic sensor designed for demanding industrial and pressure-intensive applications. It provides a 60 mm sensing range when used with the specified M4.0 magnet. The sensor uses a PNP normally open output with a 200 mA current rating. Its full-metal stainless-steel construction supports applications requiring high mechanical robustness. The model is rated for pressures up to 100 bar and uses gold-plated contacts.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

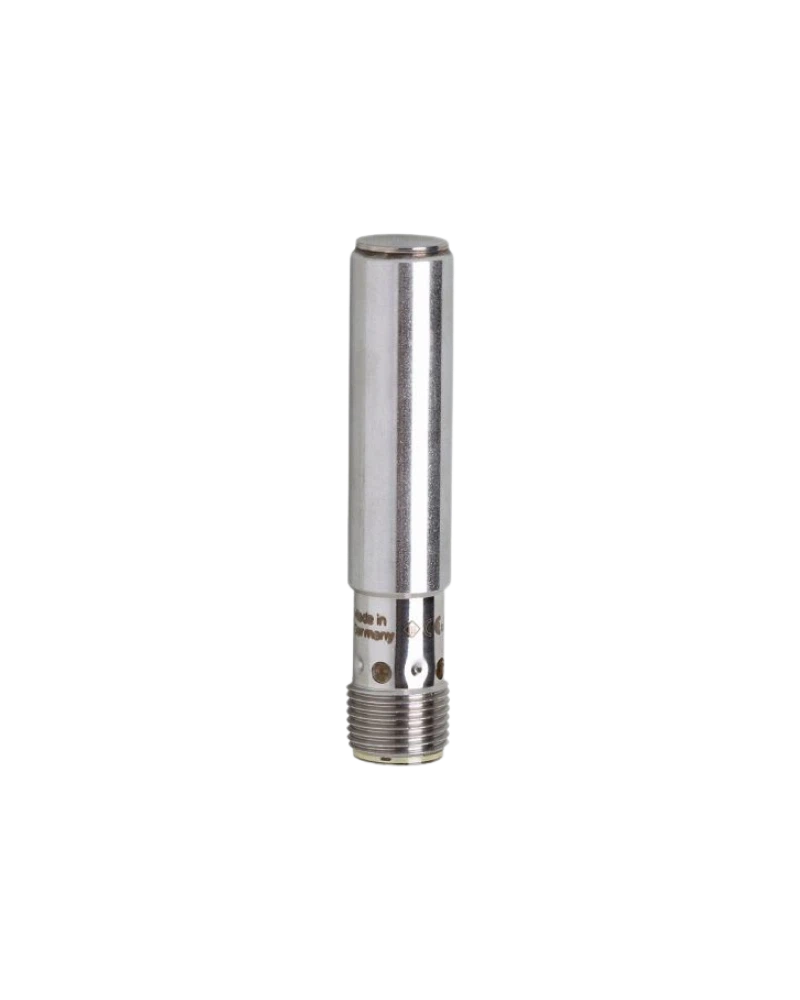

The MFT204 uses a complete metal housing for improved mechanical resistance. The cylindrical Ø12 × 60 mm format allows compact machine installation. Its sensing system detects the specified magnetic actuator over 60 mm. The stainless-steel construction is suitable for demanding machinery. This design is particularly useful where plastic sensor housings are less suitable.
The MFT204 is rated for a pressure of up to 100 bar or 10 MPa. This enables use in applications involving high-pressure mechanical systems. The full-metal construction supports the pressure-resistant design. Magnetic position detection remains non-contact. This makes the sensor useful for demanding actuator-position applications.
The sensor operates from 10...30 V DC. Its PNP normally open output provides up to 200 mA continuous current. Switching frequency reaches 5000 Hz. Short-circuit and overload protection are integrated. These features provide reliable electrical performance.
60 mm sensing range
PNP normally open
Full-metal construction
Ø12 × 60 mm housing
10...30 V DC
200 mA output
5000 Hz switching
10 MPa pressure rating
100 bar pressure resistance
Gold-plated contacts
Short-circuit protection
Overload protection
Stainless-steel construction
Magnetic sensitivity 1.3 mT
IP-rated industrial construction
Hydraulic equipment
Pneumatic machinery
Pressure-intensive systems
Actuator monitoring
Machine tools
Industrial automation
Mobile machinery
Cylinder position detection
Machine position sensing
Heavy-duty equipment
The MFT204 is designed for applications where sensor pressure resistance is important. Its 100 bar rating provides a significant mechanical protection capability. Magnetic sensing avoids physical contact with the moving actuator. The 60 mm range provides flexible installation. These features support demanding industrial position-monitoring tasks.
| Specification | MFT204 |
|---|---|
| Product Type | Full-metal magnetic sensor |
| Model | MFT204 |
| Electrical Design | PNP |
| Output Function | Normally open |
| Sensing Principle | Magnetic |
| Sensing Range | 60 mm |
| Reference Magnet | M4.0 |
| Magnetic Sensitivity | 1.3 mT |
| Supply Voltage | 10...30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Voltage Drop | 2.5 V |
| Output Current | 200 mA |
| Switching Frequency | 5000 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Housing Type | Cylindrical full-metal |
| Housing Diameter | 12 mm |
| Housing Length | 60 mm |
| Housing Material | Stainless steel |
| Pressure Rating | 10 MPa |
| Pressure Rating | 100 bar |
| Connection | M12 connector |
| Contacts | Gold-plated |
| Detection Target | Magnetic actuator |
| Reference Actuator | M4.0 magnet |
| Mounting | Cylindrical |
| Product Status | Phase-out article |
| Alternative | MFS211 |
