The optical emission is Red (660 nm). A switching frequency of 1 kHz.
The output type is PNP. The operating voltage is 10….30 VDC, with load current of 30 mA.
No-load supply current is 100 mA. Maximum ripple is ≤ 10 %.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP65 (EN60529).
Dimensions are 15x26x67 mm. Weight is 50 g.
The operating temperature range is - 25 °C…+ 70 °C (Non-freezing).

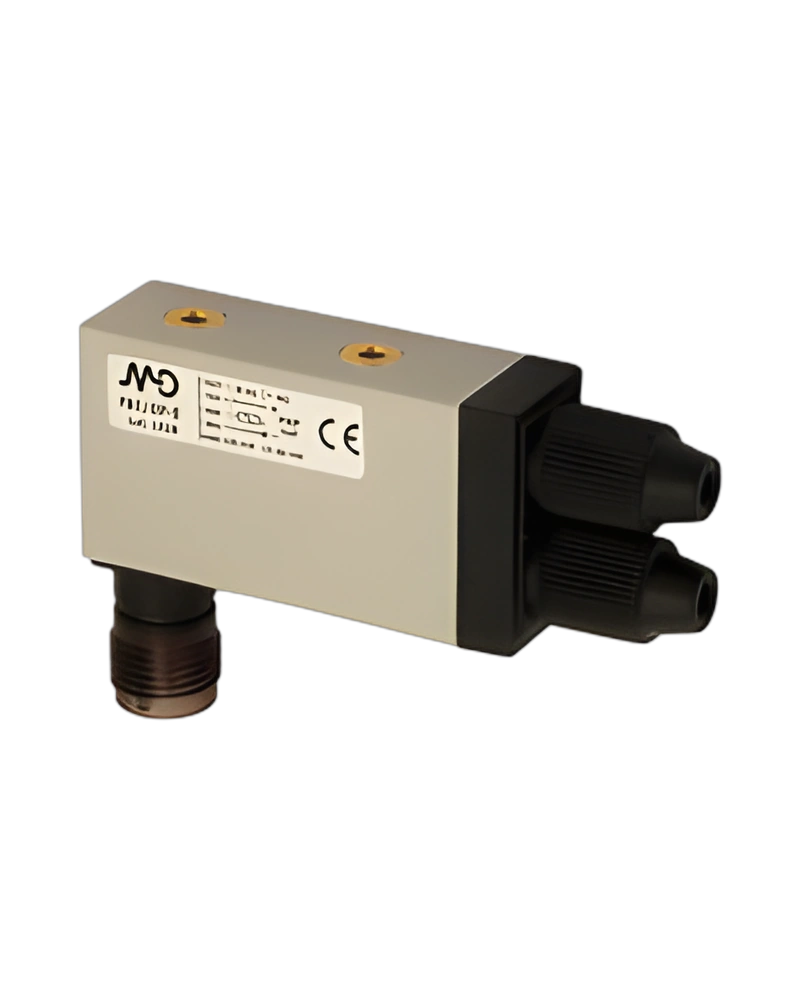

The manufacturer part number is FS1/0P-E. This model is manufactured by M.D. Micro Detectors. Time to availability is 200 ms.
External-light interference is limited to 30.000 lx (Incandescent lamp), 10.000 lx (Sunlight).
| Specification | Details |
|---|---|
| Model | FS1/0P-E |
| Manufacturer part number | FS1/0P-E |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Switching frequency | 1 kHz |
| Weight | 50 g |
| Operating temperature | - 25 °C…+ 70 °C (Non-freezing) |
| Dimensions | 15x26x67 mm |
| Degree of protection | IP65 (EN60529) |
| Time to availability | 200 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10 % |
| External light interference | 30.000 lx (Incandescent lamp), 10.000 lx (Sunlight) |
| Operating voltage | 10….30 VDC |
| Load current | 30 mA |
| No-load supply current | 100 mA |
| Emission | Red (660 nm) |
