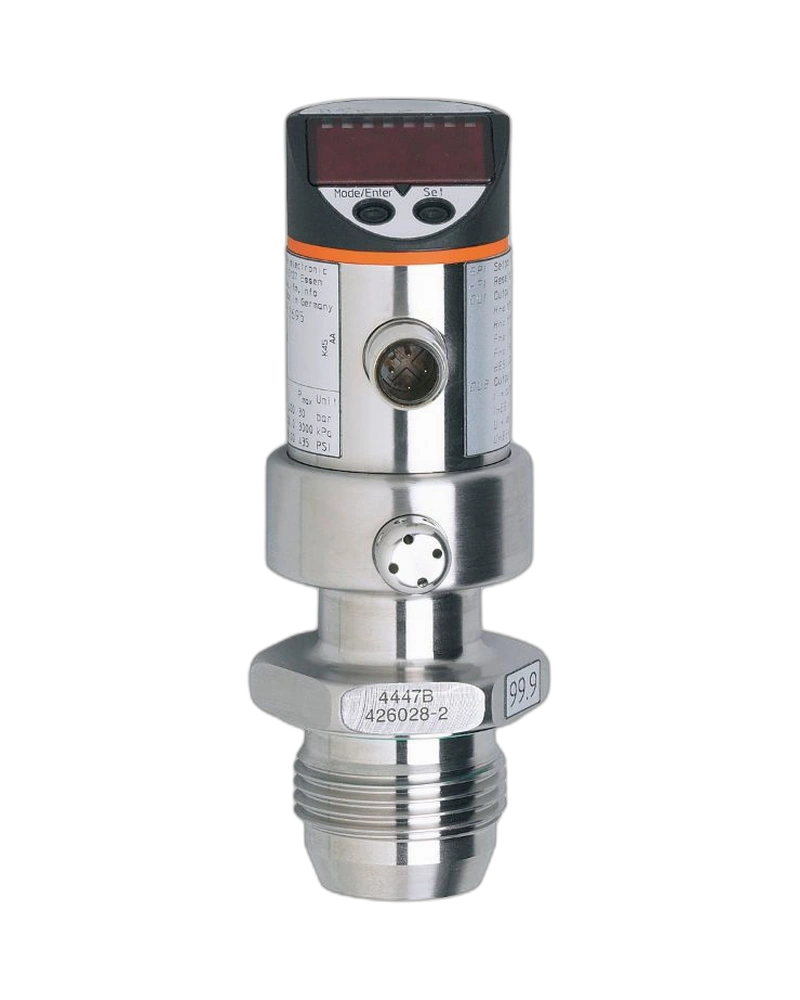

The IFM PI7698 is a flush pressure sensor with an integrated display for hygienic and industrial pressure monitoring. It measures relative pressure in the low-pressure range of approximately -12.4 to 250 mbar. The sensor provides two programmable digital outputs and supports PNP/NPN operation. Its flush construction, stainless-steel wetted materials and IP67/IP69K protection make it suitable for demanding fluid applications. A four-digit alphanumeric display provides clear pressure indication and parameterisation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PI7698 is designed for accurate measurement of low relative pressures. Its control range extends from approximately -12.4 to 250 mbar. The sensor is suitable for liquids and gases used in hygienic and industrial systems. The flush pressure connection helps minimise dead zones around the sensing element. This design is useful for applications involving viscous media or media containing suspended solids.
The sensor provides two digital outputs with programmable switching behaviour. The outputs can be configured as normally open or normally closed. PNP/NPN operation provides flexibility when connecting the sensor to different control systems. One output can also be configured for diagnostic functionality. This allows pressure monitoring and fault indication to be handled by the same device.
The PI7698 uses stainless-steel construction with ceramic, PTFE and FKM components in the wetted area. Its G1 sealing-cone process connection is suitable for hygienic installations. IP67 and IP69K protection support demanding washdown environments. The sensor supports medium temperatures up to 125 °C, with short-duration operation up to 145 °C. These characteristics make it suitable for food, beverage and process-fluid equipment.
Low-pressure measurement
Relative pressure measurement
-12.4…250 mbar control range
PNP/NPN electrical design
2 programmable digital outputs
NO/NC programmable outputs
Four-digit alphanumeric display
G1 sealing-cone process connection
M12 A-coded connector
Stainless-steel construction
Ceramic sensing element
PTFE wetted material
FKM sealing
IP67 protection
IP69K protection
Hygienic process systems
Food-processing equipment
Beverage-processing machinery
Liquid pressure monitoring
Gas pressure monitoring
Viscous media applications
Media containing solids
Low-pressure process monitoring
The four-digit alphanumeric display provides direct indication of the measured pressure. Five green LEDs are used for display-unit and parameter indication. Two yellow LEDs provide switching-status indication. The zero point and measuring range can be adjusted through the sensor interface. This allows convenient commissioning without requiring an external display device.
The PI7698 operates from 18–32 V DC and provides reverse-polarity protection. Its ambient operating range is -25 to 80 °C. The medium temperature range extends from -25 to 125 °C, with 145 °C permitted for short periods. IP67/IP69K protection supports demanding industrial and hygienic environments. The stainless-steel construction further improves durability in process applications.
| Specification | PI7698 |
|---|---|
| Product type | Flush pressure sensor with display |
| Product code | PI-,25BREA01-QFRKG/US/ /P |
| Pressure type | Relative pressure |
| Control range | -12.4…250 mbar |
| Pressure measuring range | -12.4…250 mbar |
| Process connection | G1 sealing cone |
| Output type | Digital switching |
| Number of outputs | 2 |
| Electrical design | PNP/NPN |
| Output function | NO/NC programmable |
| Diagnostic output | Available |
| Operating voltage | 18–32 V DC |
| Connection | M12 |
| Connector coding | A-coded |
| Display | 4-digit alphanumeric |
| Display LEDs | 5 green |
| Switching-status LEDs | 2 yellow |
| Wetted sensing material | Ceramic |
| Wetted polymer | PTFE |
| Seal material | FKM |
| Housing material | Stainless steel |
| Surface finish | Ra <0.4 µm |
| Medium temperature | -25…125 °C |
| Short-time medium temperature | 145 °C |
| Ambient temperature | -25…80 °C |
| Protection rating | IP67/IP69K |
| Minimum burst pressure | 30 bar |
| Pressure rating | 10 bar |
| Electrical protection | Reverse polarity |
| Process application | Liquids and gases |
