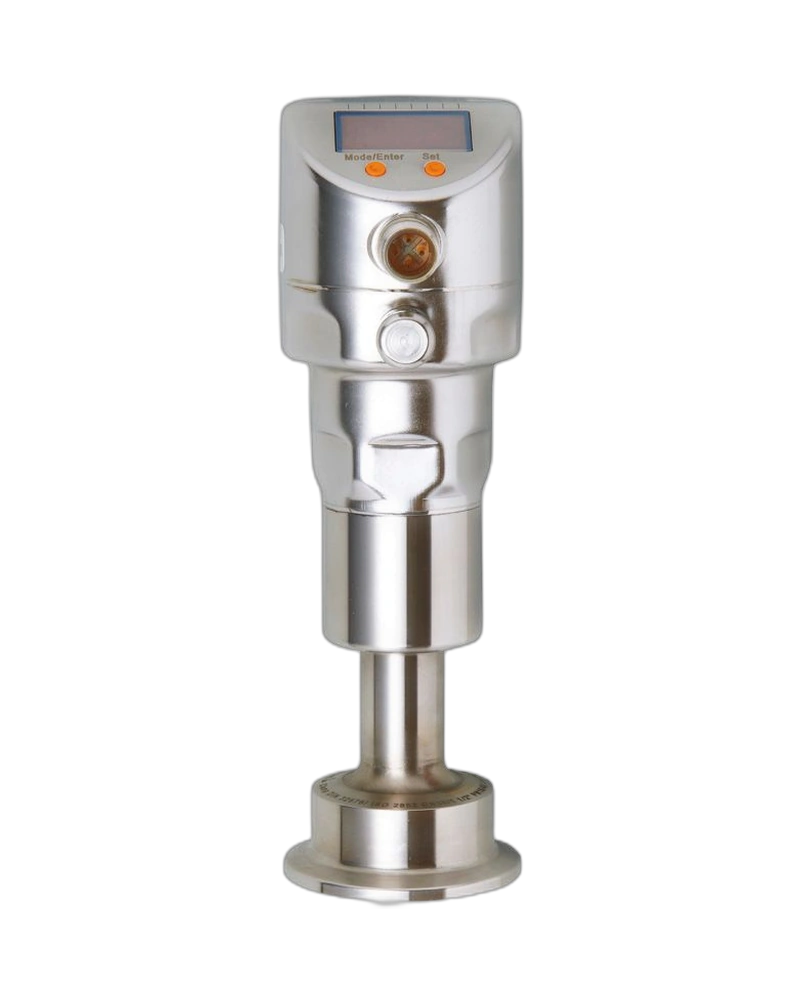

The IFM PI2204 is a flush pressure sensor with display designed for hygienic pressure measurement in food and beverage applications. It measures relative pressure and vacuum from -1 to 10 bar and supports liquids, gases, viscous media, and liquids containing suspended particles. Two digital outputs, a scalable 4…20 mA analogue output, and IO-Link provide flexible automation connectivity. Its DN40 Clamp process connection and flush design support hygienic installation with low dead-space characteristics. The sensor can operate with medium temperatures up to 200 °C under specified ambient conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PI2204 is designed for flush installation in hygienic process systems. Its DN40 Clamp connection follows DIN 32676/ISO 2852. The -1…10 bar range allows both vacuum and positive-pressure monitoring. It can handle viscous media and liquids containing suspended particles. This makes it suitable for food, beverage, and process applications.
The PI2204 supports medium temperatures from -20…200 °C, with restrictions when measuring negative pressure. At medium temperatures up to 200 °C, the ambient temperature is limited to -25…65 °C. The pressure rating is 50 bar and the minimum burst pressure is 100 bar. IP67/IP68/IP69K protection provides strong resistance against demanding process environments. These characteristics make the sensor suitable for high-temperature process equipment.
The PI2204 provides two digital outputs and one scalable 4…20 mA analogue output. The digital outputs can be configured as normally open or normally closed. IO-Link communication operates through COM2 at 38.4 kBaud. The minimum IO-Link process cycle time is 2.3 ms. These interfaces provide both conventional PLC connectivity and digital sensor integration.
Flush pressure measurement
-1…10 bar measuring range
Relative pressure and vacuum
DN40 Clamp connection
DIN 32676 / ISO 2852
4-digit alphanumeric display
Two digital outputs
One analogue output
4…20 mA scalable
PNP/NPN
NO/NC configurable
IO-Link 1.0
COM2 38.4 kBaud
Medium temperature up to 200 °C
IP67/IP68/IP69K
Ra <0.38 µm wetted surface
Food processing
Beverage processing
Dairy equipment
Hygienic process systems
High-temperature process monitoring
CIP/SIP equipment
Tank pressure monitoring
Process pipelines
The PI2204 uses stainless-steel 316L/1.4435 wetted construction. Its wetted surface has a specified Ra <0.38 µm finish. The flush design helps minimise product accumulation at the pressure measuring point. The pressure transmission fill fluid is NEOBEE food-grade and FDA compliant. These features support hygienic process requirements.
Install the PI2204 using a compatible DN40 Clamp connection. Ensure the hygienic sealing arrangement is correctly installed before pressurising the system. Observe the specified ambient-temperature limits when operating at elevated medium temperatures. Keep the flush process surface clean during routine operation and maintenance. Use the display or IO-Link interface to verify pressure values and configuration.
| Specification | Details |
|---|---|
| Model | PI2204 |
| Product type | Flush pressure sensor with display |
| Order code | PI-010-REZ01-MFRKG/US/P |
| Measuring principle | Electronic pressure measurement |
| Measuring range | -1…10 bar |
| Pressure type | Relative pressure / vacuum |
| Media | Liquids and gases |
| Special media | Viscous media / suspended particles |
| Process connection | Clamp DN40, 1.5" |
| Connection standard | DIN 32676 / ISO 2852 |
| Pressure rating | 50 bar |
| Minimum burst pressure | 100 bar |
| Medium temperature | -20…200 °C |
| Negative-pressure temperature limit | ≤90 °C |
| Supply voltage, 2-wire | 20…32 V DC |
| Supply voltage, 3-wire | 18…32 V DC |
| Digital outputs | 2 |
| Analogue outputs | 1 |
| Output signal | Switching / analogue / IO-Link |
| Electrical design | PNP/NPN |
| Switching function | NO/NC configurable |
| Analogue output | 4…20 mA |
| Analogue output | Scalable / invertible |
| Switching current | 250 mA |
| Switching frequency | 125 Hz |
| Short-circuit protection | Yes, pulsed |
| Overload protection | Yes |
| IO-Link revision | 1.0 |
| IO-Link transmission | COM2, 38.4 kBaud |
| Minimum IO-Link cycle | 2.3 ms |
| Ambient temperature | -25…65 °C at medium ≤200 °C |
| Storage temperature | -25…100 °C |
| Protection rating | IP67/IP68/IP69K |
| Wetted material | Stainless steel 316L/1.4435 |
| Surface finish | Ra <0.38 µm |
| Pressure transmission fluid | NEOBEE, food-grade/FDA compliant |
| Dimensions | Ø50 × 163 mm |
| Weight | 1053 g |
| Electrical connection | M12, gold-plated |
