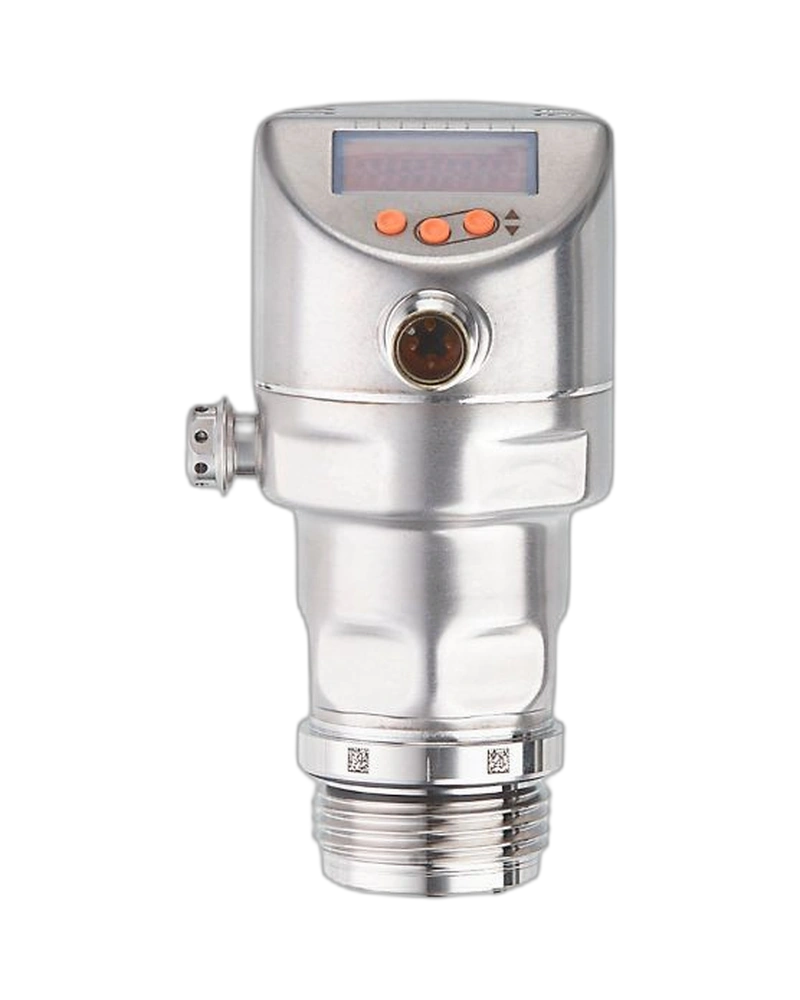

The IFM PI1718 is a flush pressure sensor with display designed for hygienic food and beverage process applications. It measures from -50 to 400 mbar and provides pressure and temperature monitoring in one device. Two digital outputs, a scalable 4…20 mA output, and IO-Link provide comprehensive automation connectivity. Its G1 Aseptoflex Vario connection, 316L stainless-steel construction, and ceramic measuring cell are designed for hygienic process environments. IP67, IP68, and IP69K protection together with high temperature capability support demanding cleaning and production conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The PI1718 is designed for applications requiring accurate low-pressure and vacuum measurement. Its measuring range is -50…400 mbar. The sensor can detect both relative pressure and vacuum conditions. The pressure measuring cell is based on 99.9% Al₂O₃ ceramic. This makes the sensor suitable for sensitive pressure monitoring in hygienic process systems.
In addition to pressure, the PI1718 provides temperature measurement from -25…150 °C. Temperature information can be transmitted through IO-Link. The temperature measurement has a resolution of 0.2 K. Its dynamic response is specified with T05/T09 values below 45/200 seconds under the stated test conditions. This enables combined pressure and thermal monitoring from one process device.
The PI1718 uses a G1 Aseptoflex Vario external thread with a flush sealing contour. Wetted materials include ceramic, stainless steel 316L/1.4435, and PTFE. The process connection has a specified surface characteristic of Ra <0.4 µm / Rz 4 µm. The sensor supports medium temperatures up to 150 °C. IP67/IP68/IP69K protection supports hygienic washdown environments.
Flush pressure sensor
4-digit alphanumeric display
-50…400 mbar range
Vacuum measurement
Temperature monitoring
Two digital outputs
One analogue output
4…20 mA
PNP/NPN
NO/NC configurable
IO-Link 1.1
COM2 38.4 kBaud
G1 Aseptoflex Vario
316L stainless steel
IP67/IP68/IP69K
Food and beverage processing
Hygienic process equipment
Low-pressure monitoring
Vacuum monitoring
Tank monitoring
Process pipelines
Temperature monitoring
CIP/SIP process equipment
The PI1718 provides pressure and temperature as cyclic IO-Link process data. Its IO-Link pressure resolution is 0.02 mbar. Temperature resolution is 0.2 K. Additional diagnostic information includes operating hours, switching cycles, pressure peaks, and measuring-cell diagnostics. The minimum process cycle time is 5.6 ms. This provides detailed digital information for modern process-control systems.
Install the sensor through the specified G1 Aseptoflex Vario process connection. Ensure the sealing contour and process surface remain clean during installation. The sensor should be tightened according to the specified torque requirements. Use the display and IO-Link to verify pressure and temperature values after commissioning. Periodic inspection should follow the hygienic cleaning requirements of the installation.
| Specification | Details |
|---|---|
| Model | PI1718 |
| Product type | Flush pressure sensor with display |
| Order code | PI-,40BREA01-MFRKG/US/ /P |
| Measuring principle | Ceramic pressure measuring cell |
| Measuring range | -50…400 mbar |
| Pressure type | Relative pressure / vacuum |
| Application | Food and beverage industry |
| Media | Liquids, gases, viscous media, suspended particles |
| Process connection | G1 external thread |
| Connection system | Aseptoflex Vario |
| Pressure rating | 8 bar |
| Minimum burst pressure | 30 bar |
| Vacuum resistance | -1000 mbar |
| Medium temperature | -25…150 °C |
| Temperature monitoring | Yes |
| Temperature range | -25…150 °C |
| Digital outputs | 2 |
| Analogue outputs | 1 |
| Output signal | Switching / analogue / IO-Link |
| Electrical design | PNP/NPN |
| Switching function | NO/NC configurable |
| Analogue output | 4…20 mA |
| Analogue output scaling | Scalable / invertible |
| Switching current | 100 mA |
| Switching frequency | 125 Hz |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| 3-wire supply | 18…30 V DC |
| IO-Link | Revision 1.1 |
| IO-Link mode | COM2, 38.4 kBaud |
| IO-Link cycle time | 5.6 ms |
| Ambient temperature | -25…80 °C |
| Protection rating | IP67 / IP68 / IP69K |
| Housing material | Stainless steel 316L |
| Wetted materials | Ceramic Al₂O₃, stainless steel 316L, PTFE |
| Surface finish | Ra <0.4 µm / Rz 4 µm |
| Dimensions | Ø50 × 107 mm |
| Weight | 356.4 g |
| Electrical connection | M12, 4-pin, gold-plated |
| Display | 4-digit alphanumeric |
