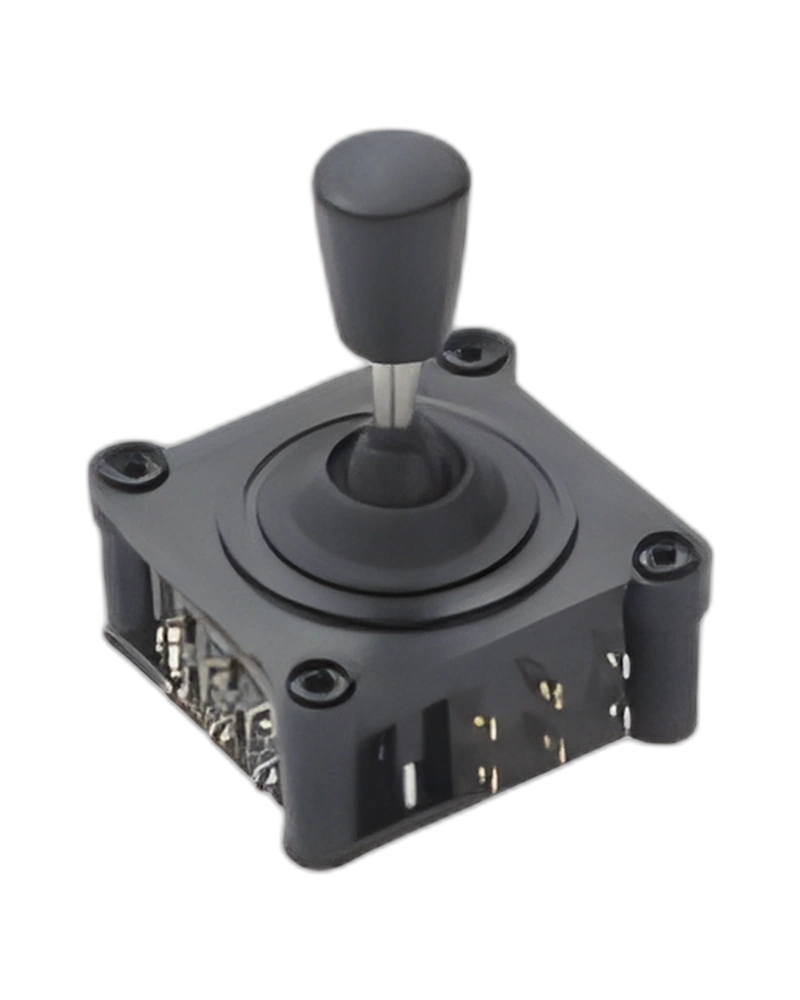

The APEM FINGERTIP SWITCH - 1000 SERIES is a compact, robust motion control switch designed for industrial applications. Featuring single or dual axis operation, single or double pole configuration, gold-plated contacts, and IP67 sealing, this switch operates within a temperature range of -20°C to 50°C (-4°F to 122°F) and handles up to 30V and 6A current. Ideal for precise motion control systems requiring reliable performance in harsh environments.
The APEM FINGERTIP SWITCH - 1000 SERIES delivers a compact, robust solution for precise motion control in industrial automation. Engineered with a single or dual axis design, this switch supports single or double pole configurations and features gold-plated contacts for superior conductivity and durability. Its IP67 sealed construction ensures protection against dust and water immersion, making it suitable for demanding environments. The switch operates within a temperature range of -20°C to 50°C (-4°F to 122°F) and handles up to 30V and 6A current, providing reliable performance in critical motion control applications.
The switch mounts via 22 mm bush or screw mount options, with a bush mount configuration supporting single or dual axis operation. Its robust construction ensures secure installation in industrial environments, while the IP67 sealing protects against environmental factors during operation.
| Feature | Specification |
|---|---|
| Mounting | 22 mm Bush,Poles:Single Pole,Boot:Bush Mount |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Specifications Temperature Range | -20ºC to 50ºC (-4ºF to 122ºF)³ Above Panel Seal (IP): To IP67 (excluding some handle options) |
| Voltage | 30V |
| Current | 6A |
The APEMFINGERTIP SWITCH - 1000 SERIES is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Mounting | 22 mm Bush,Poles:Single Pole,Boot:Bush Mount |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Specifications Temperature Range | -20ºC to 50ºC (-4ºF to 122ºF)³ Above Panel Seal (IP): To IP67 (excluding some handle options) |
| Voltage | 30V |
| Current | 6A |
