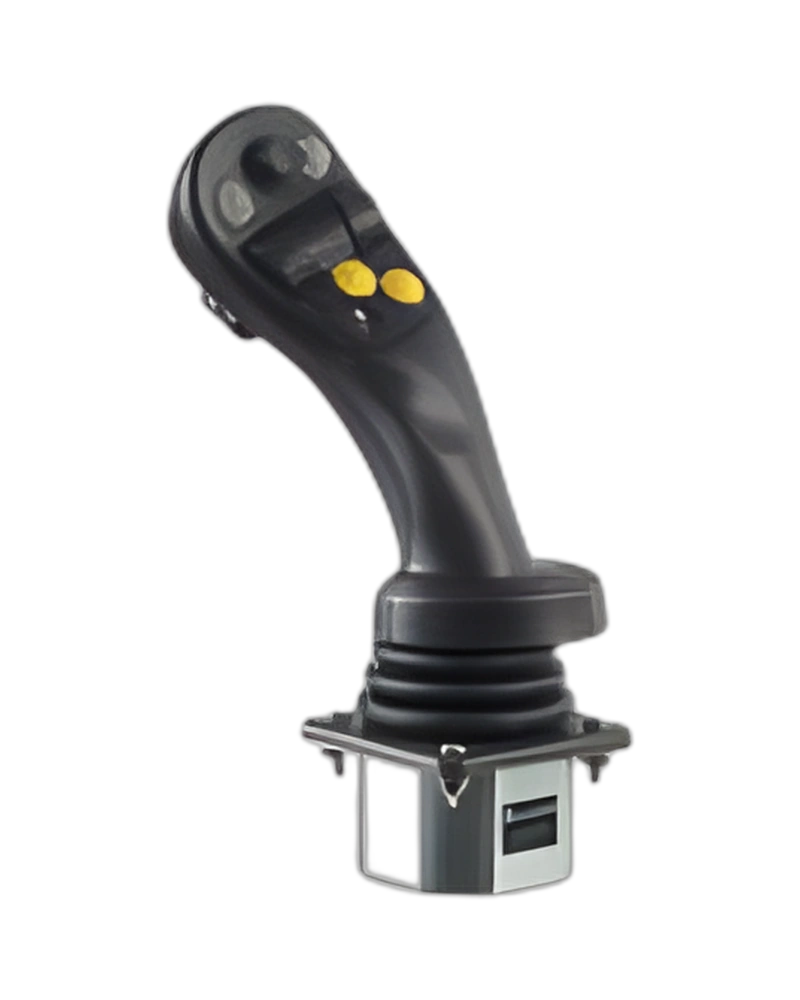

The XD Series joystick stands out with its minimal below-panel depth of just 60 mm, yet it is capable of resisting horizontal loads up to 400 lbf thanks to its sturdy all-metal construction. The joystick handle of the XD series boasts a uni-body construction with modular inserts that enhance design flexibility. These inserts include an index trigger switch, an operator presence paddle, and a customizable faceplate, ensuring IP67 environmental sealing above the panel, which guards against the ingress of dust and liquids.
| Feature | Specification |
|---|---|
| Sealing | Up to IP67 (subject to handleconfiguration) Humidity: IEC 60068-2-38 Thermal shock: SAE J1455 section 4.1.3.2 Salt spray: IEC 60068-2-11 Humidity: IEC 60068-2-38 Thermal shock: SAE J1455 section 4.1.3.2 Salt spray: IEC 6 |
| Operating Force | 1.24NM,Operator Presence Paddle:No.,Face plate:Two Pushbuttons, One Hall Effect Thumbwheel |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) Above Panel |
