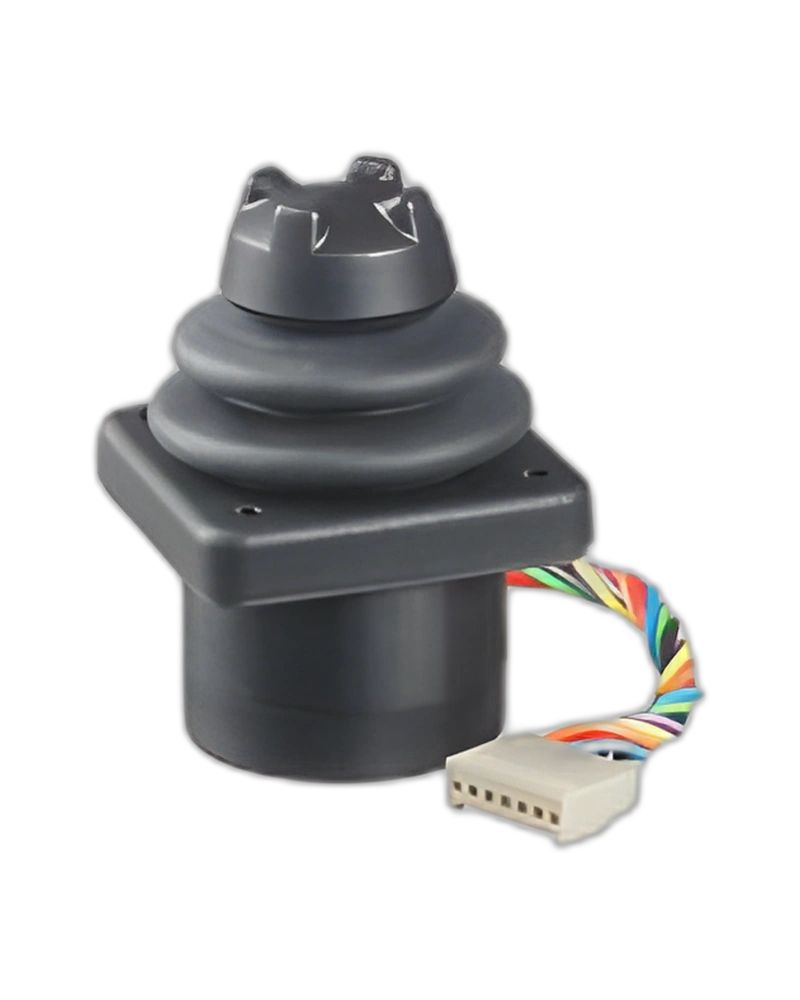

The XS series is a two axis Hall effect joystick featuring a reduced panel height to provide precise fingertip control. Measuring in at less than 45mm, the XS allows for unimpeded access to other devices located on the control panel. This compact, low profile design reduces the risk of inadvertent operation as well as damage when mounted in handheld mobile devices that are prone to accidental drops. The XS series includes redundant Hall effect sensors for more than 10 million operations, and is IP66 above panel sealed, making it the ideal solution for outdoor applications.
| Feature | Specification |
|---|---|
| Sealing | IP66 |
| Operating Temperature | -30 °C to +85 °C |
| Storage Temperature | -40 °C to +110 °C |
