Explore performance details, construction highlights, applications, and technical information in one clear overview.

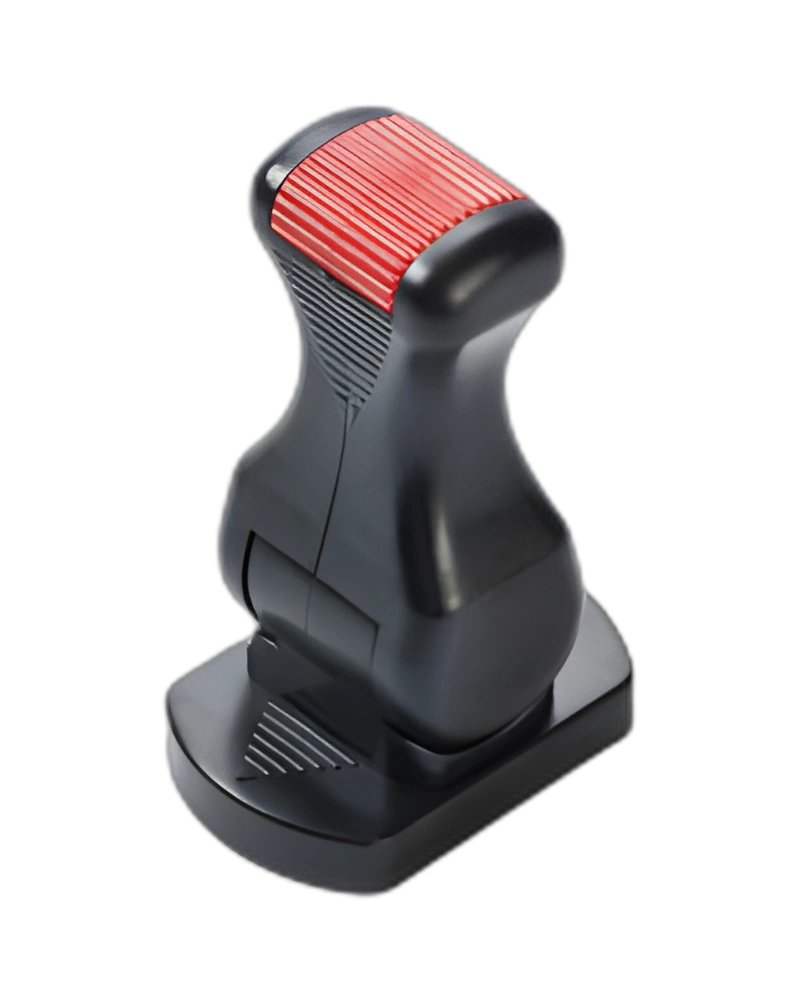

The BF BD series has locked positions with spring back to center. The lever 'clicks' into a number of pre-set positions. When it is released, it springs back to its center position. Concerning the connections, the paddle joystick is, as standard, fitted with an 8-way connector with a 2.54 mm pitch. The BF Series also incorporates internal magnetic shielding to minimize the effect of external magnetic fields. It is not recommended to mount or operate the single axis controller near strong magnetic fields. This industrial joystick is available in two standard handle options: The BF paddle: An ergonomic handle option of 74 mm The BD paddle: A shorter handle option of 50 mm suited to handheld applications which require a minimized height.
| Feature | Specification |
|---|---|
| 1 | 5V |
| 3 | 0V |
| 4 | Analog/PWM output 1 |
| 5 | Analog/PWM output 2 |
| 6 | 0V |
| 8 | 5V |
| Sealing | IP67 |
| Force | 75 N |
| SPECIFICATIONS • Operating Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Deflection Angle | 50 degree |
| weight | 50 g |
| Operating Temperature | -25 °C |
| Voltage Tolerance | V/2 ± (5% x Gain) MECHANICAL |
| Output | Analog or PWM outputs |
| Feature | Specification |
|---|---|
| 1 | 5V |
| 3 | 0V |
| 6 | 0V |
| 8 | 5V |
| Sealing | IP67 |
| SPECIFICATIONS • Operating Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Deflection Angle | 50 degree |
| weight | 50 g |
| Operating Temperature | -25 °C |
| Voltage Tolerance | V/2 ± (5% x Gain) MECHANICAL |
| Output | Analog or PWM outputs |
.webp)
.webp)
