Fingertip Hall Effect - 3000 SERIES – Automation and Controls UAE

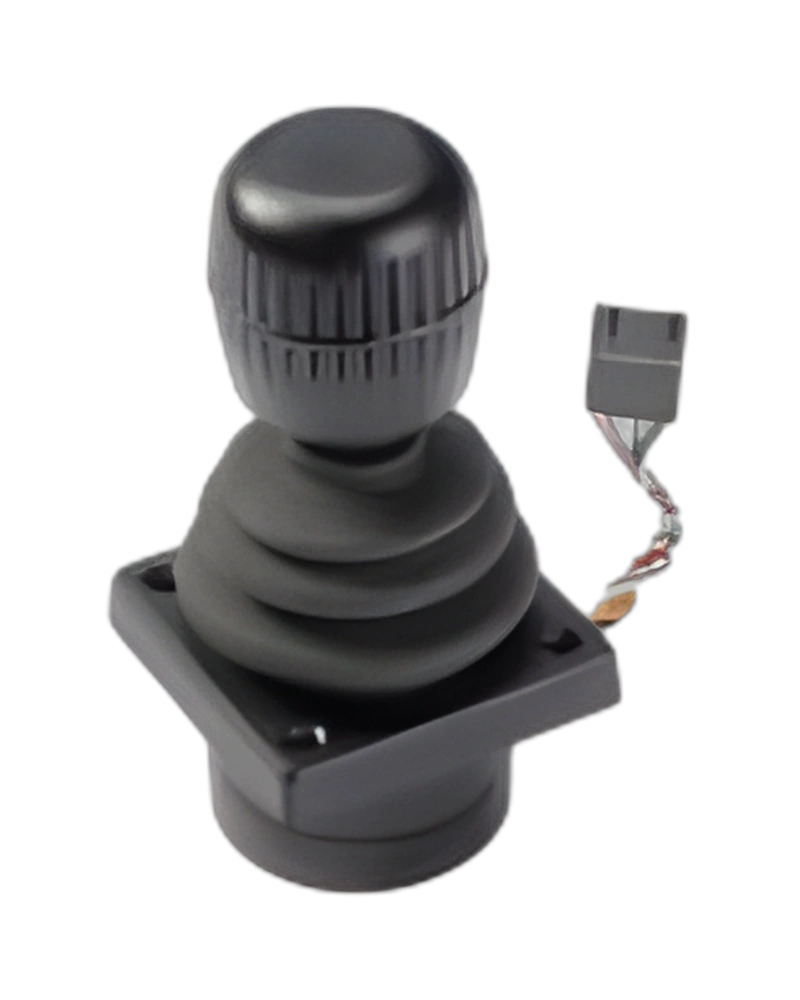

The 3000 Series is the very latest generation in high precision contactless joysticks . With a class leading installed depth of <20mm, it is available in 1,2, or 3 axis formats. Long trouble-free life is assured with the latest Hall effect technology, providing a range of analog signals or custom PWM output options. The 3000 Series also delivers a radically improved mechanism construction that is specifically designed for increased robustness, strength and performance.

Brand APEM
Category Automation and Controls
Subcategory Motion Control

Fingertip Hall Effect - 3000 SERIES

Key Features

One, two or three axis Analog or PWM outputs Low profile less than 20 mm below panel depth 5 V or 3.3 V operation Metal mechanism

Technical Specifications

Feature	Specification
1	Supply power (7 to 35 VDC) Supply power (7 to 35 VDC)
X	Y Z 3.3V 5V 10 25 30 40 50 A C D R S X
(0.39) R10.00 (0.295)R7.50	35.00 (1.38) BK
(1.22) .50 15. 12) (0.	(1.22)
1/1	2 Primary X-axis neutral position status
1/3	2 Primary X-axis left position status
1/5	2 Primary X-axis right position status
1/7 to 2/8	10 Primary X-axis position data
3/1	2 Primary Y-axis neutral position status
3/3	2 Primary Y-axis down position status
3/5	2 Primary Y-axis up position status
3/7 to 4/8	10 Primary Y-axis position data
6/5	2 Button 2 status
6/7	2 Button 1 status
5/1	2 Primary Z-axis neutral position status
5/3	2 Primary Z-axis counter-clockwise position status
5/5	2 Primary Z-axis clockwise position status
5/7 TO 4/8	10 Primary Z-axis position data
CONFIGURATION	CT CD AXIS SUPPLY GAIN LIMITERS ALL HANDLES ALL BEZELS
6	+V Red
Nylon	Aluminum Stainless Steel
ABS	Aluminum Aluminum
Aluminum	Aluminum Nylon
Santoprene over Nylon	Aluminum Aluminum
Black	Black Stainless Steel
Force	400 N
Specifications Operating Temperature	-25ºC to 70ºC (-13ºF to 158ºF)
weight	100 g
Operating Temperature	-25 °C
Output	Analog or PWM outputs
