Explore performance details, construction highlights, applications, and technical information in one clear overview.
A switching frequency of 33 Hz.
The operating voltage is 24..240 VAC/24…240Vcc. No-load supply current is ≤ 2VA.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes. Ingress protection is rated IP67.
Dimensions are 20x44,9x60 mm and the connection is 2 m PVC Cable. Weight is 160 g.
The operating temperature range is -25 °C…+55 °C. EMC compatibility is EN 60947-5-2.

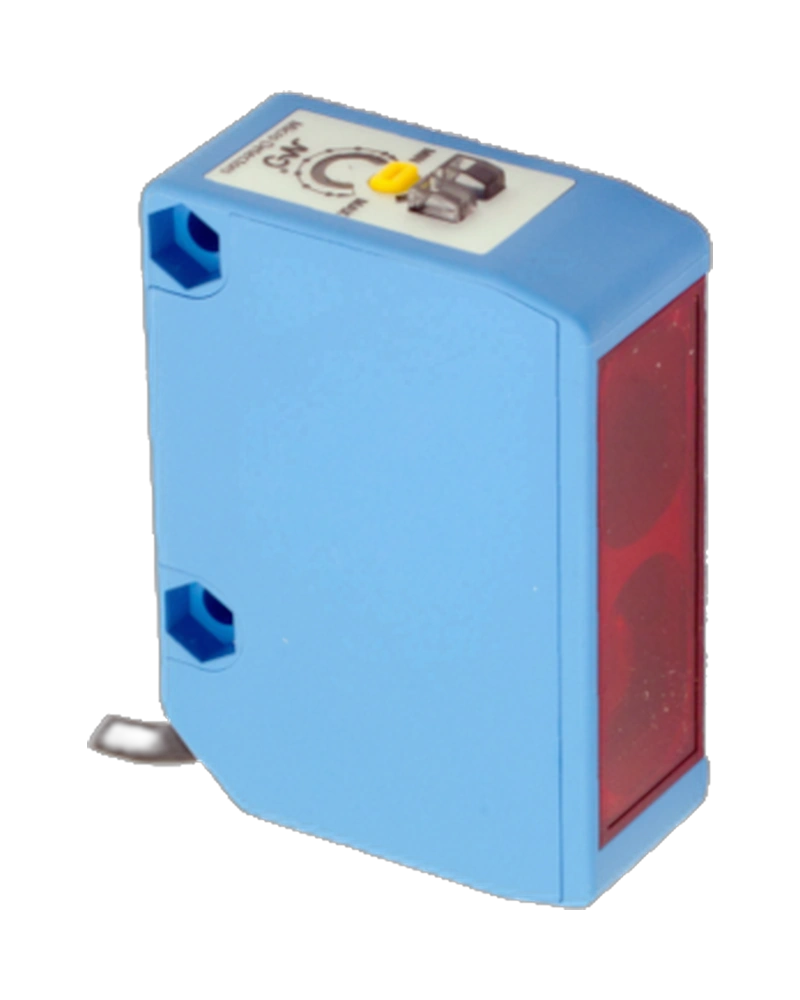

The manufacturer part number is FGRS/DT-0A. This model is manufactured by M.D. Micro Detectors.
| Specification | Details |
|---|---|
| Model | FGRS/DT-0A |
| Manufacturer part number | FGRS/DT-0A |
| Manufacturer | M.D. Micro Detectors |
| Switching frequency | 33 Hz |
| Weight | 160 g |
| Active head material | PMMA |
| Operating temperature | -25 °C…+55 °C |
| Dimensions | 20x44,9x60 mm |
| Connection | 2 m PVC Cable |
| Optical position | Axial |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Operating voltage | 24..240 VAC/24…240Vcc |
| No-load supply current | ≤ 2VA |
