Explore performance details, construction highlights, applications, and technical information in one clear overview.
It uses Polarized sensing.
The sensing principle is Polarized. A switching frequency of 1 kHz.
The output type is PNP,NPN. No-load supply current is 35 mA.
Maximum ripple is 5Vpp. Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP67.
Dimensions are 20x44,9x65 mm and the connection is M12 Connector. Weight is 40 g.
The operating temperature range is -25 °C…+55 °C. EMC compatibility is EN 60947-5-2.

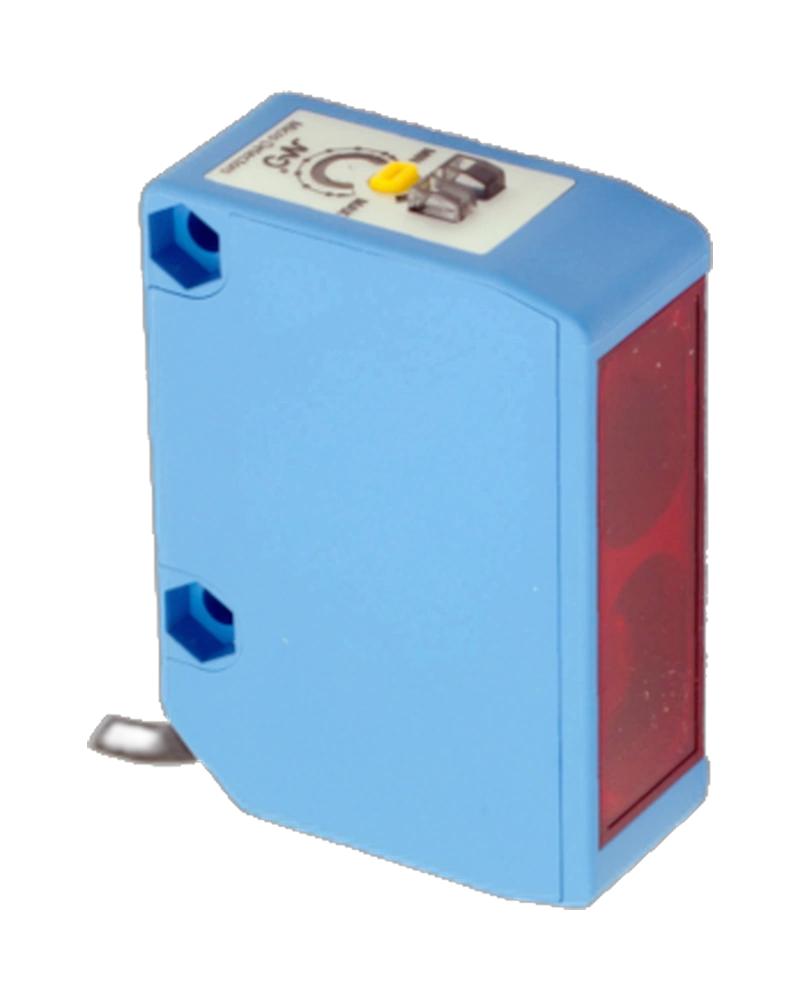

The manufacturer part number is FGRN/0P-0E. This model is manufactured by M.D. Micro Detectors. Axial is Operating principle:.
External-light interference is limited to 3,000 lx (Incandescent lamp), 10,000 (Sunlight).
FGRN/0P-0E uses Polarized sensing. For electrical integration, it provides output type PNP,NPN, switching frequency 1 kHz. The physical configuration includes dimensions 20x44,9x65 mm, M12 Connector connection. It is rated IP67 for an operating temperature range of -25 °C…+55 °C.
| Specification | Details |
|---|---|
| Model | FGRN/0P-0E |
| Manufacturer part number | FGRN/0P-0E |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP,NPN |
| Switching frequency | 1 kHz |
| Weight | 40 g |
| Active head material | PMMA |
| Operating temperature | -25 °C…+55 °C |
| Dimensions | 20x44,9x65 mm |
| Connection | M12 Connector |
| Optical position | Axial |
| Operating principle | Polarized |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | 5Vpp |
| External light interference | 3,000 lx (Incandescent lamp), 10,000 (Sunlight) |
| Load current | ≤ 100 mA |
| No-load supply current | 35 mA |
