The nominal sensing distance is 50 m.
The nominal sensing distance is 50 m. A switching frequency of 1 kHz.
The output type is NPN. No-load supply current is ≤ 35 mA (Emitter), ≤ 20 mA (Receiver).
Maximum ripple is 5Vpp. Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP67.
Dimensions are 20x44,9x60 mm and the connection is 2 m PVC Cable. Weight is 300 g.
The operating temperature range is -25 °C…+55 °C. EMC compatibility is EN 60947-5-2.

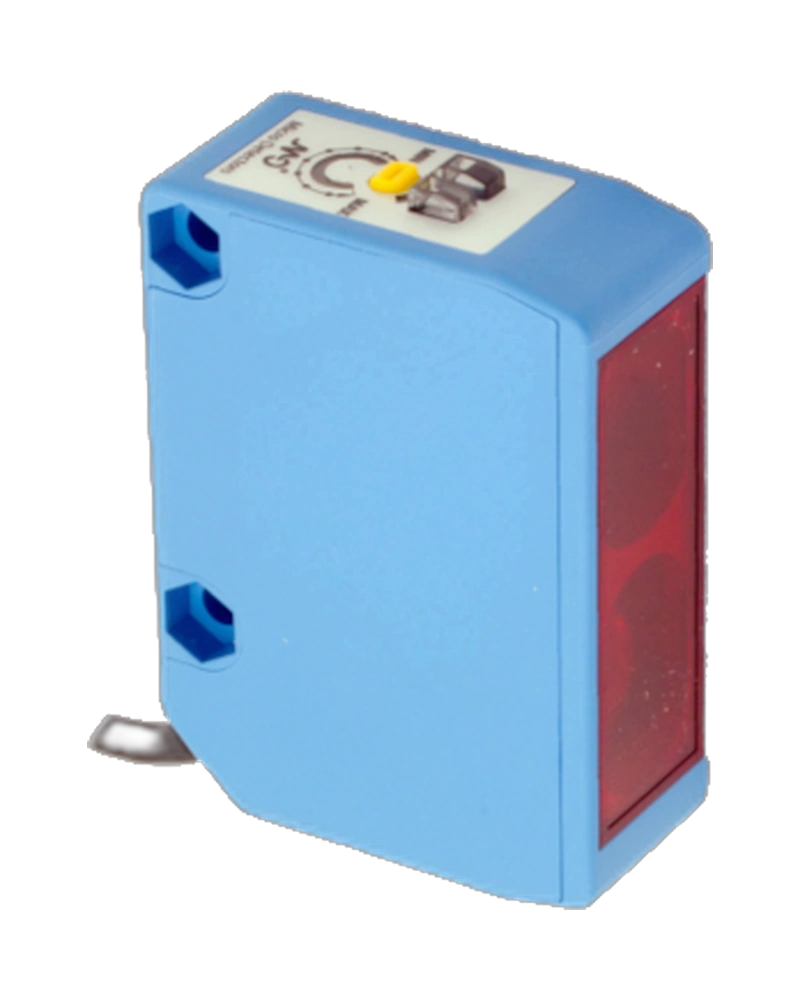

The manufacturer part number is FGRHD/0N-0A. This model is manufactured by M.D. Micro Detectors.
| Specification | Details |
|---|---|
| Model | FGRHD/0N-0A |
| Manufacturer part number | FGRHD/0N-0A |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN |
| Switching frequency | 1 kHz |
| Weight | 300 g |
| Active head material | PMMA |
| Operating temperature | -25 °C…+55 °C |
| Dimensions | 20x44,9x60 mm |
| Connection | 2 m PVC Cable |
| Nominal sensing distance | 50 m |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | 5Vpp |
| Load current | ≤ 100 mA (Receiver) |
| No-load supply current | ≤ 35 mA (Emitter), ≤ 20 mA (Receiver) |
