The nominal sensing distance is 50 mm.
The nominal sensing distance is 50 mm. A switching frequency of 4 kHz.
The output type is NPN. The output function is LO.
The operating voltage is 12-24 VDC, with load current of 100 mA. No-load supply current is ≤ 20 mA.
Maximum ripple is ≤ 10%. Short-circuit protection is Yes. Reverse polarity protection is Yes.
Ingress protection is rated IP67 (EN60529).
Weight is 80 g.
The operating temperature range is - 10 °C…+ 60 °C. EMC compatibility is EN 60947-5-2.
Storage temperature is - 40 °C…+ 80 °C.
Sensitivity adjustment is No.

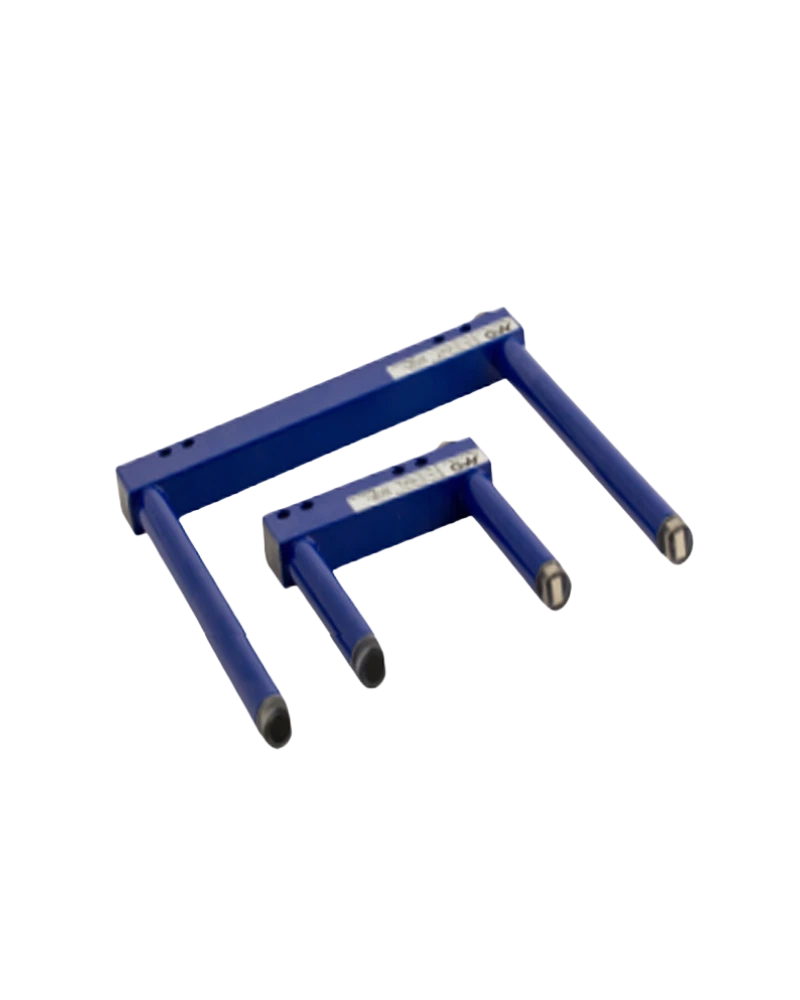

The manufacturer part number is FC5R/LN-0303-1F. This model is manufactured by M.D. Micro Detectors. Time to availability is 150 ms.
External-light interference is limited to 5000 lx (Incandescent lamp), 10000 lx (Sunlight).
For electrical integration, it provides output type NPN, operating voltage 12-24 VDC, switching frequency 4 kHz. It is rated IP67 (EN60529) for an operating temperature range of - 10 °C…+ 60 °C.
| Specification | Details |
|---|---|
| Model | FC5R/LN-0303-1F |
| Manufacturer part number | FC5R/LN-0303-1F |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN |
| Output function | LO |
| Switching frequency | 4 kHz |
| Weight | 80 g |
| Operating temperature | - 10 °C…+ 60 °C |
| Storage temperature | - 40 °C…+ 80 °C |
| Nominal sensing distance | 50 mm |
| Sensitivity adjustment | No |
| Degree of protection | IP67 (EN60529) |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 150 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10% |
| External light interference | 5000 lx (Incandescent lamp), 10000 lx (Sunlight) |
| Operating voltage | 12-24 VDC |
| Load current | 100 mA |
| No-load supply current | ≤ 20 mA |
