The nominal sensing distance is 3 mm.
The nominal sensing distance is 3 mm. A switching frequency of 1.500 Hz.
The output type is NPN/PNP. The operating voltage is 12-24 VDC, with load current of 100 mA.
No-load supply current is ≤ 45 mA. Maximum ripple is ≤ 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP65.
Weight is 160 g.
The operating temperature range is + 5 °C…+ 55 °C. EMC compatibility is EN 60529.
Storage temperature is - 20 °C…+ 70 °C.
Sensitivity adjustment is Yes.

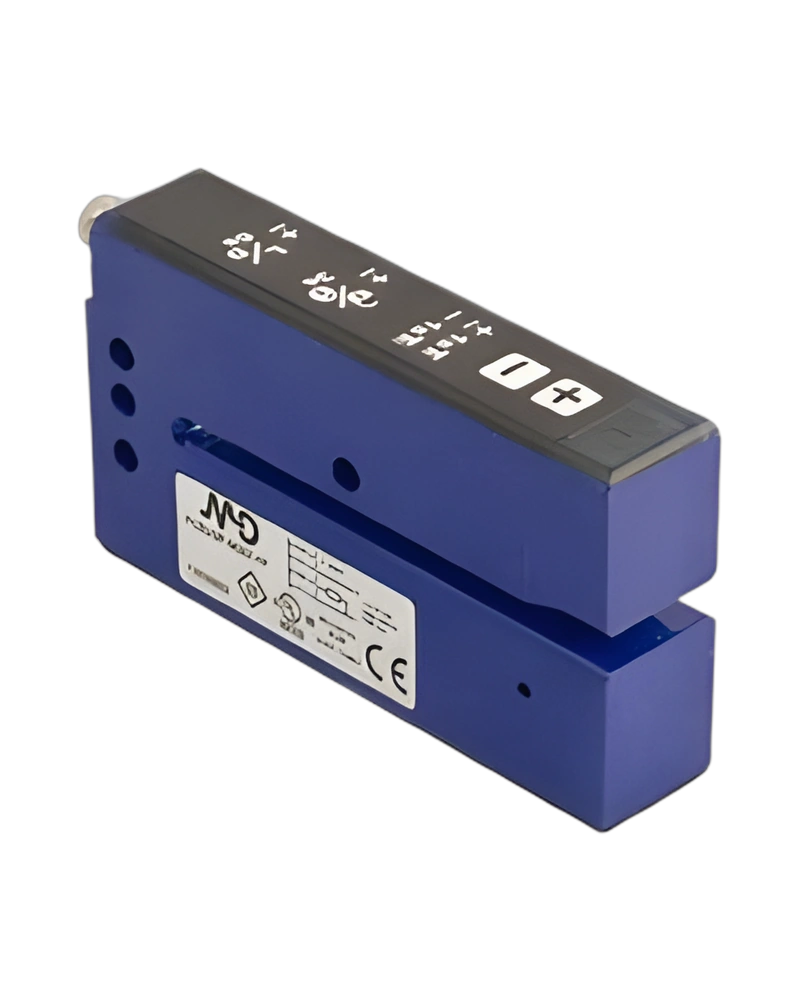

The manufacturer part number is FC8U/0B-M307-1F. This model is manufactured by M.D. Micro Detectors. Time to availability is 300 ms.
| Specification | Details |
|---|---|
| Model | FC8U/0B-M307-1F |
| Manufacturer part number | FC8U/0B-M307-1F |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN/PNP |
| Switching frequency | 1.500 Hz |
| Weight | 160 g |
| Operating temperature | + 5 °C…+ 55 °C |
| Storage temperature | - 20 °C…+ 70 °C |
| Nominal sensing distance | 3 mm |
| Sensitivity adjustment | Yes |
| Degree of protection | IP65 |
| EMC compatibility | EN 60529 |
| Time to availability | 300 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10% |
| Operating voltage | 12-24 VDC |
| Load current | 100 mA |
| No-load supply current | ≤ 45 mA |
