The nominal sensing distance is 3 mm.
The nominal sensing distance is 3 mm. The optical emission is Infrared.
A switching frequency of 10 kHz.
The output type is NPN. The operating voltage is 12-24 VDC, with load current of 100 mA.
No-load supply current is ≤ 35 mA. Maximum ripple is ≤ 10%.
Reverse polarity protection is Yes. Ingress protection is rated IP65.
The housing material is PA. Weight is 35 g.
The operating temperature range is - 20 °C…+ 60 °C. EMC compatibility is EN 60529.
Storage temperature is - 30 °C…+ 80 °C.
Sensitivity adjustment is Yes.

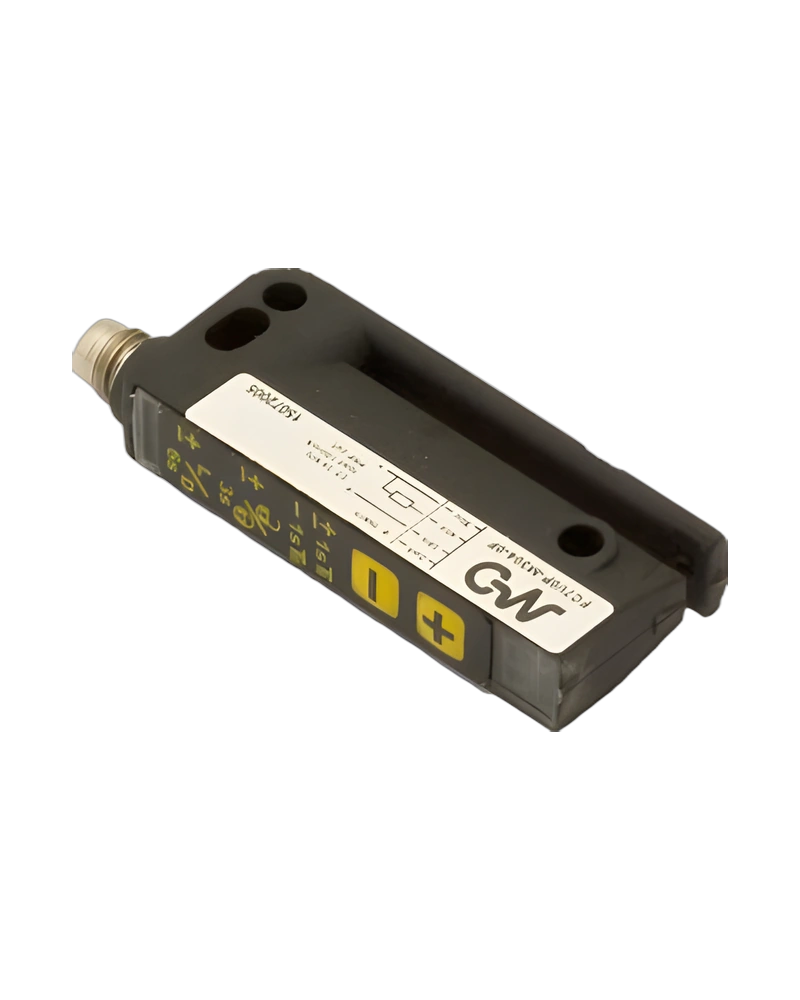

The manufacturer part number is FC7I/0N-M304-0F. This model is manufactured by M.D. Micro Detectors.
| Specification | Details |
|---|---|
| Model | FC7I/0N-M304-0F |
| Manufacturer part number | FC7I/0N-M304-0F |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN |
| Switching frequency | 10 kHz |
| Weight | 35 g |
| Housing material | PA |
| Operating temperature | - 20 °C…+ 60 °C |
| Storage temperature | - 30 °C…+ 80 °C |
| Nominal sensing distance | 3 mm |
| Sensitivity adjustment | Yes |
| Degree of protection | IP65 |
| EMC compatibility | EN 60529 |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10% |
| Operating voltage | 12-24 VDC |
| Load current | 100 mA |
| No-load supply current | ≤ 35 mA |
| Emission | Infrared |
