The nominal sensing distance is 120 mm.
The nominal sensing distance is 120 mm. A switching frequency of 10 kHz.
The output type is NPN - PNP. The operating voltage is 12-24 VDC, with load current of 100 mA.
No-load supply current is 40 mA. Maximum ripple is ≤ 10%.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP65 (EN60529).
Weight is 100 g.
The operating temperature range is - 20 °C…+ 50 °C. EMC compatibility is EN 60947-5-2.
Storage temperature is - 30 °C…+ 80 °C.
Sensitivity adjustment is Yes.

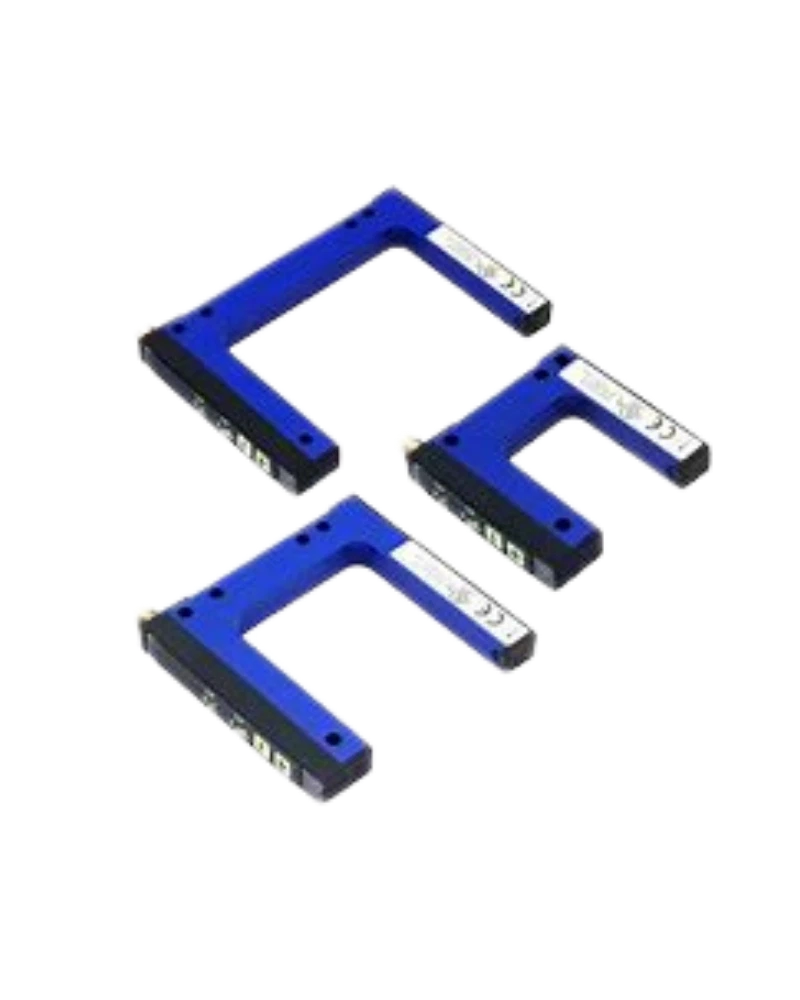

The manufacturer part number is FC6L/0B-1204-1F. This model is manufactured by M.D. Micro Detectors. The external-light interference limit is 5000 lx (Incandescent lamp), 10000 lx (Sunlight).
| Specification | Details |
|---|---|
| Model | FC6L/0B-1204-1F |
| Manufacturer part number | FC6L/0B-1204-1F |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN - PNP |
| Switching frequency | 10 kHz |
| Weight | 100 g |
| Operating temperature | - 20 °C…+ 50 °C |
| Storage temperature | - 30 °C…+ 80 °C |
| Nominal sensing distance | 120 mm |
| Sensitivity adjustment | Yes |
| Degree of protection | IP65 (EN60529) |
| EMC compatibility | EN 60947-5-2 |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10% |
| External light interference | 5000 lx (Incandescent lamp), 10000 lx (Sunlight) |
| Operating voltage | 12-24 VDC |
| Load current | 100 mA |
| No-load supply current | 40 mA |
