The optical emission is Red (680 nm).
The output type is NPN. The operating voltage is 12….24 VDC.
No-load supply current is < 35 mA and leakage current is limited to < 10 µA. Maximum ripple is ≤ 10 %.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Ingress protection is rated IP50 (EN60529).
Dimensions are 10x31.5x64.3 mm and the connection is 2 m PVC Cable.
The operating temperature range is - 25 °C…+ 55 °C (Non-freezing). EMC compatibility is EN 60947-5-2.
Storage temperature is - 30 °C…+ 70 °C (Non-freezing).

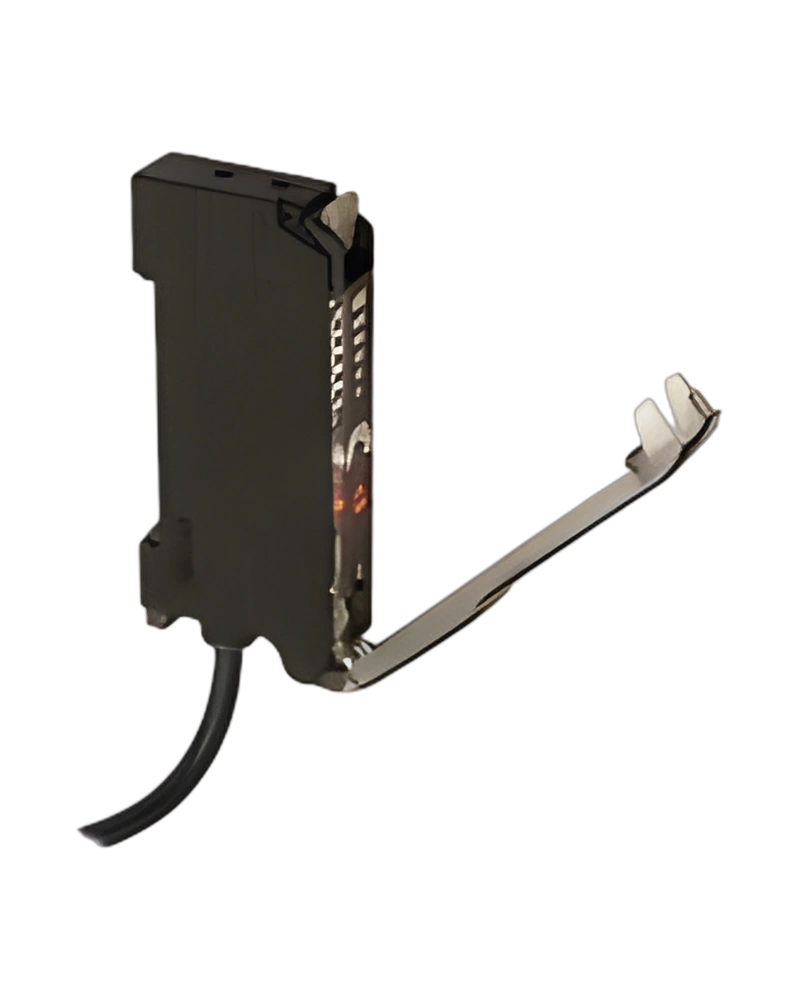

The manufacturer part number is F1R/0N-0A. This model is manufactured by M.D. Micro Detectors. Time to availability is ≤ 200 ms.
External-light interference is limited to 10.000 lx (Incandescent lamp), 20.000 lx (Sunlight).
For electrical integration, it provides output type NPN, operating voltage 12….24 VDC. The physical configuration includes dimensions 10x31.5x64.3 mm, 2 m PVC Cable connection. It is rated IP50 (EN60529) for an operating temperature range of - 25 °C…+ 55 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | F1R/0N-0A |
| Manufacturer part number | F1R/0N-0A |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN |
| Operating temperature | - 25 °C…+ 55 °C (Non-freezing) |
| Dimensions | 10x31.5x64.3 mm |
| Connection | 2 m PVC Cable |
| Storage temperature | - 30 °C…+ 70 °C (Non-freezing) |
| Repeat accuracy | 5% |
| Degree of protection | IP50 (EN60529) |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | ≤ 200 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Maximum ripple | ≤ 10 % |
| External light interference | 10.000 lx (Incandescent lamp), 20.000 lx (Sunlight) |
| Operating voltage | 12….24 VDC |
| No-load supply current | < 35 mA |
| Leakage current | < 10 µA |
| Emission | Red (680 nm) |
