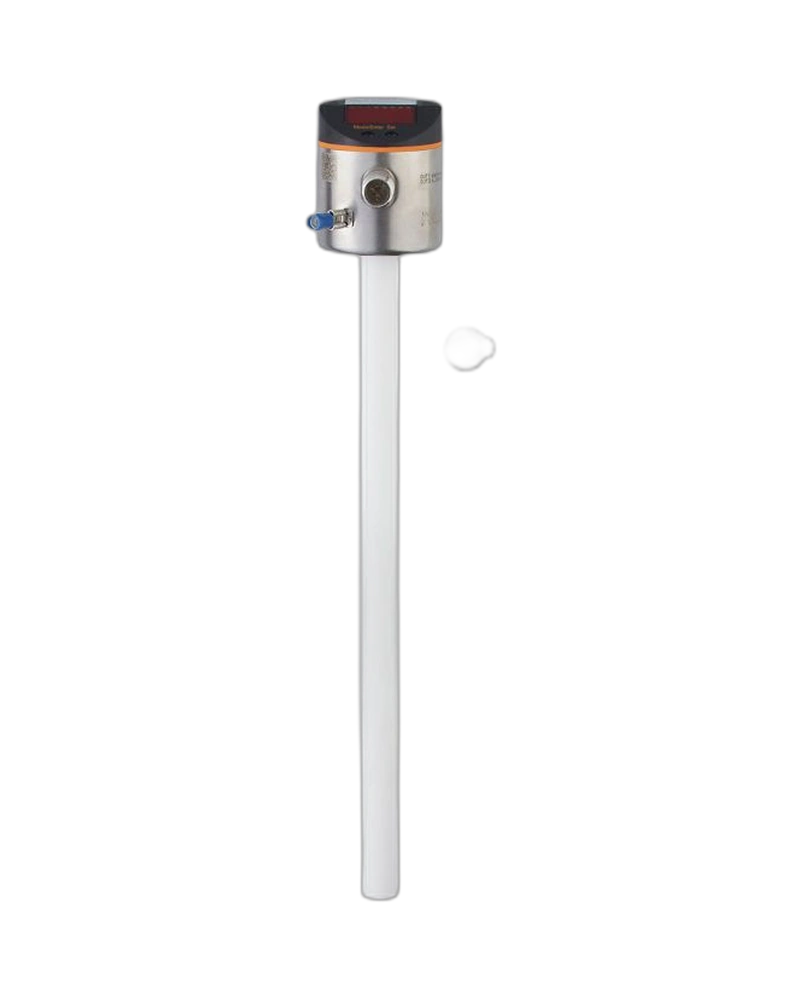

The IFM LT3022 is an electronic level and temperature sensor designed for monitoring liquid levels and temperature in industrial fluid systems. It supports water-based coolants, oils, oil-based media and similar water-based liquids. The sensor combines one switching output with one analogue output and IO-Link communication. Its 264 mm probe provides configurable level monitoring with a 4-digit display for convenient local indication. The LT3022 is suitable for applications requiring simultaneous level and temperature supervision.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The LT3022 provides reliable continuous level measurement using an electronic sensing probe. Its 264 mm probe has an active range of 195 mm for practical tank monitoring. Level set and reset points can be configured in 5 mm increments. The sensor provides a 4–20 mA or 0–10 V analogue signal for integration with control systems. IO-Link enables parameterisation, diagnostics and process-data access.
The sensor also monitors medium temperature over a range of -20 to 90 °C. Temperature switching points can be configured in 0.5 °C increments. The specified temperature switch-point accuracy is ±1.5 K. This allows the LT3022 to combine two important process measurements in one device. It is particularly useful where fluid level and thermal condition need to be monitored together.
The LT3022 operates from 18–30 V DC and uses PNP/NPN output technology. Its switching output supports up to 200 mA, while the analogue output can provide either 4–20 mA or 0–10 V. IO-Link operates using COM2 at 38.4 kBaud with IO-Link revision 1.1. The device supports SIO operation and a minimum process cycle time of 4.5 ms.
264 mm probe length
195 mm active sensing range
Level and temperature measurement
1 digital switching output
1 analogue output
4–20 mA analogue signal
0–10 V analogue signal
PNP/NPN electrical design
IO-Link 1.1 communication
COM2, 38.4 kBaud
4-digit alphanumeric display
18–30 V DC supply
Up to 200 mA switching current
IP67 protection
Reverse polarity protection
Coolant level monitoring
Oil tank level monitoring
Hydraulic fluid monitoring
Machine tool coolant systems
Industrial fluid reservoirs
Temperature monitoring of oils
Water-based process systems
Automated tank management
The four-digit alphanumeric display provides direct process-value and parameter information. Four green LEDs indicate selectable units such as centimetres, inches, °C and °F. Programming buttons are provided directly on the sensor. Parameters include hysteresis, switching logic, analogue output type and level set/reset points. This provides convenient commissioning without requiring a separate display device.
The LT3022 uses stainless-steel and polymer construction suitable for industrial fluid applications. The device has IP67 protection and is designed for ambient temperatures from 0 to 60 °C. It withstands shock up to 15 g and vibration up to 5 g over 10–2000 Hz. A standard four-pin M12 A-coded connector provides the electrical interface.
| Specification | LT3022 |
|---|---|
| Product type | Electronic level and temperature sensor |
| Product code | LT0264B-B-00KLPKG/US |
| Probe length | 264 mm |
| Active range | 195 mm |
| Inactive range I1/I2 | 53 / 16 mm |
| Factory medium | Mineral oils |
| Suitable media | Coolants, oils, water, water-like media |
| Dielectric constant | >2 |
| Level set point | 25–200 mm |
| Level reset point | 20–195 mm |
| Level setting increment | 5 mm |
| Level hysteresis | 2 mm |
| Temperature range | -20…90 °C |
| Temperature SP | -19.5…90 °C |
| Temperature rP | -20…89.5 °C |
| Temperature increment | 0.5 °C |
| Temperature resolution | 0.5 K |
| Operating voltage | 18–30 V DC |
| Current consumption | <50 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Digital outputs | 1 |
| Analogue outputs | 1 |
| Switching current | 200 mA |
| Analogue current | 4–20 mA |
| Analogue voltage | 0–10 V |
| Analogue load | 500 Ω / 2000 Ω minimum |
| IO-Link | Revision 1.1 |
| IO-Link speed | COM2, 38.4 kBaud |
| Minimum cycle time | 4.5 ms |
| Protection rating | IP67 |
| Ambient temperature | 0…60 °C |
| Weight | 290 g |
