IFM E21319 is a fibre optic through-beam sensor designed for reliable industrial object detection. It features an angled M4 sensing head for compact and flexible machine installation. The sensor works with OBF, OCF High Power and OO50 fibre-optic amplifiers. It provides up to 4000 mm fibre-optic range with the OCF High Power amplifier. Its 2 m PMMA fibre, stainless-steel head and PE sheath provide durable performance in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21319 uses the through-beam sensing principle for reliable detection of objects interrupting the optical path. It is compatible with OBF, OCF and OO50 fibre-optic amplifiers. The specified ranges are 210 mm with OBF, 4000 mm with OCF High Power and 600 mm with OO50. These options allow the sensor to be used across different machine configurations. Through-beam sensing is especially useful for reliable object presence and passage detection.

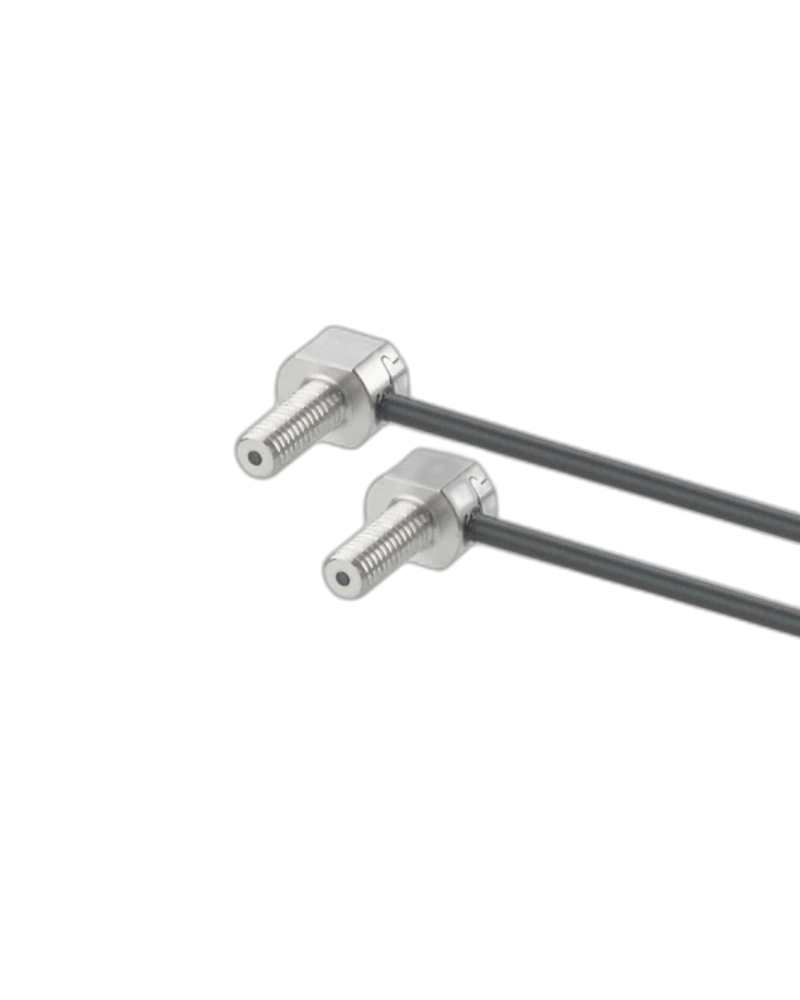

The sensing head is angled and incorporates an M4 thread with a 15.5 mm head length. The threaded interface supports secure installation into machine structures. The angled head allows easier positioning when the sensing location is not directly accessible. This can simplify sensor alignment around conveyors, guides and machine frames. The compact head design also reduces the space required around the sensing point.
E21319 uses a 2000 mm PMMA fibre assembly with a minimum bending radius of 2 mm. The fibre head is manufactured from stainless steel 303 / 1.4305 and the sheath uses PE material. The sensor operates from -40 to 70°C and weighs approximately 48.6 g. Four M4 hexagon nuts and four tooth lock washers are supplied. An E20600 fibre optic cutter is available as an optional accessory.
Through-beam sensing
Angled M4 sensing head
Up to 4000 mm OCF High Power range
600 mm OO50 range
2000 mm fibre length
2 mm minimum bending radius
PMMA fibre
Stainless-steel fibre head
PE sheath
Object detection
Conveyor systems
Packaging machinery
Assembly automation
Production lines
Material handling
Presence detection
Industrial automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21319 |
| Product Type | Fibre Optic Through-Beam Sensor |
| Product Designation | FE-11-EPV-O4/F1x1/2m |
| Function Principle | Through-beam sensor |
| Application | Industrial environments |
| Amplifier Compatibility | OBF / OCF / OO50 |
| OBF Range | 210 mm |
| OCF High Power Range | 4000 mm |
| OO50 Range | 600 mm |
| Ambient Temperature | -40...70°C |
| Weight | 48.6 g |
| Sensing Head Version | Angled |
| Sensing Head Thread | M4 |
| Sensing Head Length | 15.5 mm |
| Total Fibre Length | 2000 mm |
| Minimum Bending Radius | 2 mm |
| Core Diameter | 1 mm |
| Fibre Material | PMMA |
| Fibre Head Material | Stainless steel 303 / 1.4305 |
| Fibre Sheath Material | PE |
| Supplied Nuts | 4 × M4 |
| Supplied Washers | 4 × tooth lock washers |
| Optional Accessory | Fibre optic cutter E20600 |
| Pack Quantity | 1 pc |
