IFM E21317 is a fibre optic through-beam sensor designed for industrial object detection. It features an angled M6 sensing head that provides a secure and flexible mounting arrangement. The sensor works with OBF, OCF High Power and OO50 fibre-optic amplifiers. It provides up to 4000 mm fibre-optic range with the OCF High Power amplifier. The 2 m PMMA fibre and stainless-steel sensing head are suitable for demanding automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21317 uses a through-beam sensing principle for reliable object interruption detection. The fibre assembly can be connected to OBF, OCF and OO50 fibre-optic amplifiers. It provides 210 mm range with OBF, 4000 mm with OCF High Power and 600 mm with OO50. This makes it suitable for applications requiring different detection distances. The through-beam configuration is particularly useful for reliable presence and passage detection.

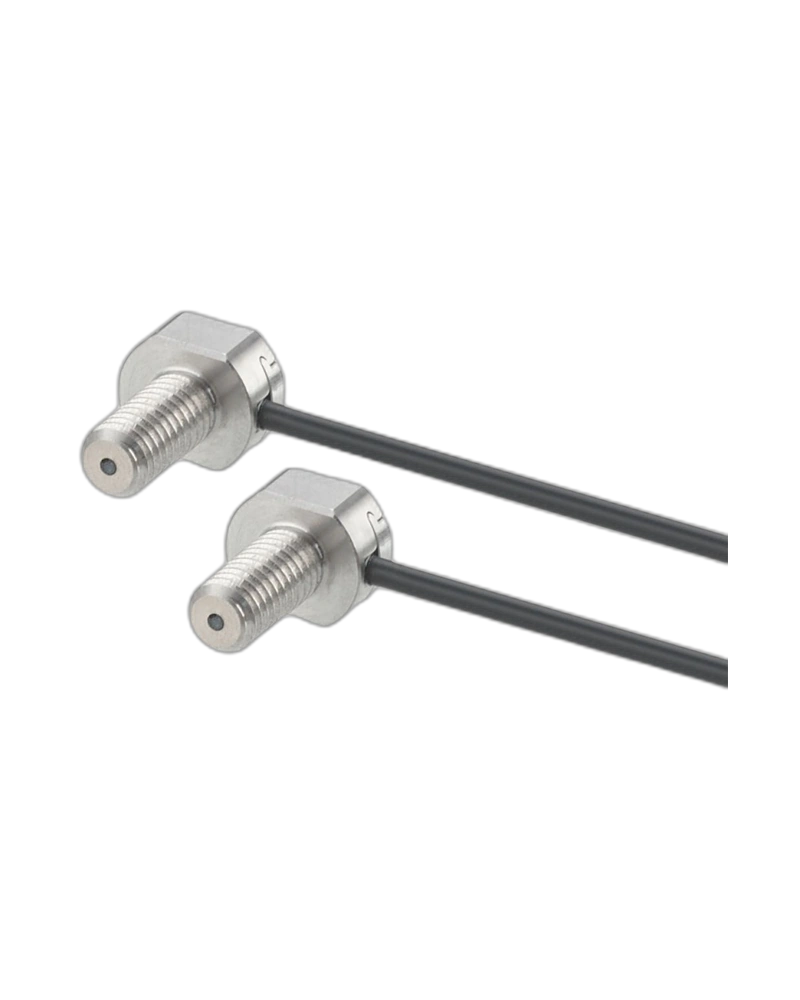

The sensor uses an angled sensing head with an M6 thread and 17.5 mm head length. The threaded head provides a secure mechanical interface for machine mounting. Its angled construction allows the sensing direction to be positioned according to the machine layout. This is useful where straight fibre mounting is difficult or where the sensing point is located near machine structures. The M6 design also supports robust industrial installation.
The total fibre length is 2000 mm and the minimum bending radius is 2 mm. This allows the fibre to be routed through compact machine assemblies and around obstacles. The fibre uses PMMA material with a stainless-steel 303 / 1.4305 fibre head and PE sheath. Four M6 hexagon nuts and four tooth lock washers are supplied. An E20600 cutter is available for fibre preparation.
Through-beam sensing
Angled M6 sensing head
Up to 4000 mm OCF High Power range
210 mm OBF range
600 mm OO50 range
2 m fibre length
2 mm minimum bending radius
PMMA fibre
Stainless-steel fibre head
Long-range object detection
Conveyor systems
Industrial automation
Packaging machinery
Assembly lines
Material handling
Machine monitoring
Production equipment
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21317 |
| Product Type | Fibre Optic Through-Beam Sensor |
| Product Designation | FE-11-EPV-O6/F1x1/2m |
| Function Principle | Through-beam sensor |
| Application | Industrial environments |
| Amplifier Compatibility | OBF / OCF / OO50 |
| OBF Range | 210 mm |
| OCF High Power Range | 4000 mm |
| OO50 Range | 600 mm |
| Ambient Temperature | -40...70°C |
| Weight | 56.4 g |
| Sensing Head Version | Angled |
| Sensing Head Thread | M6 |
| Sensing Head Length | 17.5 mm |
| Total Fibre Length | 2000 mm |
| Minimum Bending Radius | 2 mm |
| Core Diameter | 1 mm |
| Fibre Material | PMMA |
| Fibre Head Material | Stainless steel 303 / 1.4305 |
| Fibre Sheath Material | PE |
| Supplied Nuts | 4 × M6 |
| Supplied Washers | 4 × tooth lock washers |
| Optional Accessory | Fibre optic cutter E20600 |
| Pack Quantity | 1 pc |
