IFM E21316 is a fibre optic diffuse reflection sensor with an angled M6 sensing head designed for industrial automation. It provides compact object detection where conventional sensor installation may be difficult. The sensor is compatible with OBF, OCF High Power and OO50 fibre-optic amplifiers. Its fibre-optic range reaches 980 mm with the OCF High Power amplifier. The 2 m PMMA fibre and stainless-steel sensing head provide flexible and durable installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21316 operates using the diffuse reflection sensing principle. It detects objects by receiving reflected optical energy from the target through the fibre optic. The sensor is compatible with OBF, OCF and OO50 amplifiers. Its specified ranges are 70 mm with OBF, 980 mm with OCF High Power and 150 mm with OO50. This provides flexibility for different industrial sensing distances.

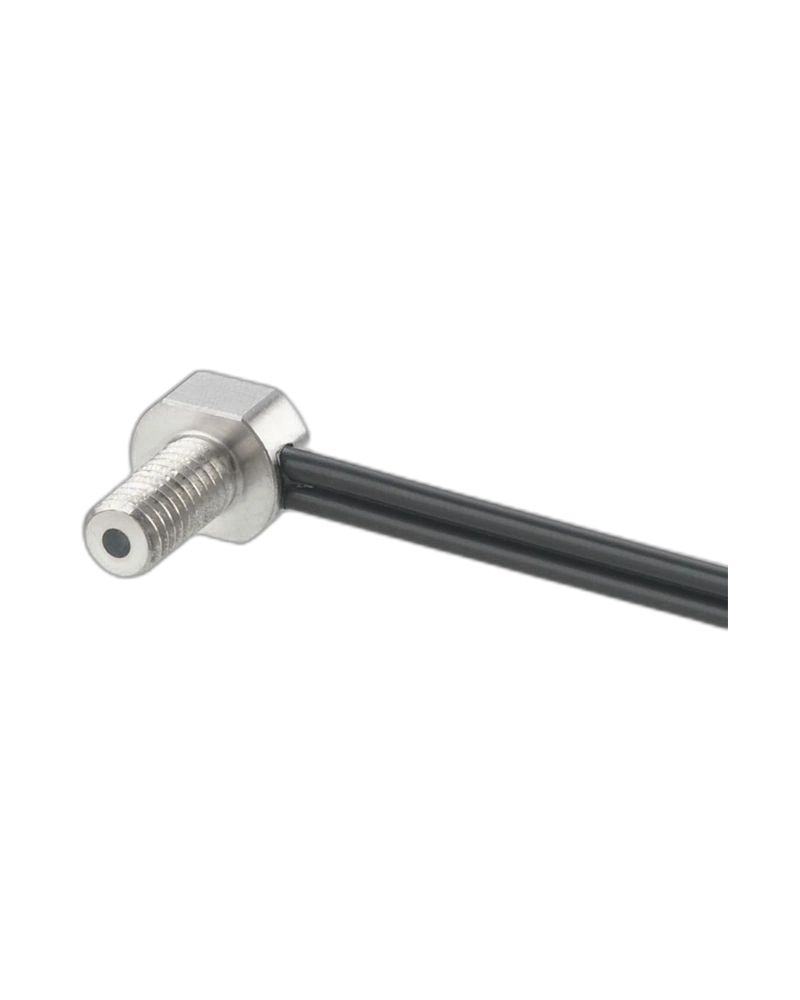

The sensing head uses an angled configuration with an M6 thread and 17.5 mm head length. The threaded head provides a secure mechanical mounting interface for industrial installations. Its angled orientation can simplify positioning around machine components. The design is useful where the sensing point is difficult to approach with a straight fibre head. The M6 interface also provides a robust mounting arrangement.
The sensor uses PMMA optical fibre, a stainless-steel 303 / 1.4305 fibre head and PE sheath. Its total fibre length is 2000 mm with a minimum bending radius of 2 mm. The product weighs approximately 50 g and operates from -40 to 70°C. Two M6 hexagon nuts and two tooth lock washers are supplied. The E20600 fibre cutter is available as an optional accessory.
Diffuse reflection principle
M6 angled sensing head
980 mm OCF High Power range
2000 mm fibre length
2 mm minimum bending radius
PMMA fibre
Stainless-steel fibre head
PE sheath
M6 mounting hardware included
Industrial object detection
Machine automation
Presence sensing
Packaging machinery
Conveyor systems
Assembly equipment
Material handling
Compact sensing installations
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21316 |
| Product Type | Fibre Optic Diffuse Reflection Sensor |
| Product Designation | FT-11-EPV-O6/FHx1/2m |
| Function Principle | Diffuse reflection sensor |
| Application | Industrial environments |
| Amplifier Compatibility | OBF / OCF / OO50 |
| OBF Range | 70 mm |
| OCF High Power Range | 980 mm |
| OO50 Range | 150 mm |
| Ambient Temperature | -40...70°C |
| Weight | 50 g |
| Sensing Head Version | Angled |
| Sensing Head Thread | M6 |
| Sensing Head Length | 17.5 mm |
| Total Fibre Length | 2000 mm |
| Minimum Bending Radius | 2 mm |
| Core Diameter | 1 mm |
| Fibre Material | PMMA |
| Fibre Head Material | Stainless steel 303 / 1.4305 |
| Fibre Sheath Material | PE |
| Supplied Nuts | 2 × M6 |
| Supplied Washers | 2 × tooth lock washers |
| Optional Accessory | Fibre optic cutter E20600 |
| Pack Quantity | 1 pc |
