IFM E21314 is a fibre optic diffuse reflection sensor designed for compact industrial object detection. Its flat rectangular construction makes it suitable for installations with limited access or restricted mounting space. The sensor works with OBF, OCF and OO50 fibre-optic amplifiers. Depending on the amplifier, the fibre-optic range is 25 mm, 620 mm or 50 mm. Its angled 3 x 11 x 15 mm sensing head and 2 m fibre provide flexible installation options.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E21314 uses diffuse reflection sensing to detect objects through reflected optical energy. The sensor can be combined with OBF, OCF and OO50 fibre-optic amplifiers. The available ranges are 25 mm with OBF, 620 mm with OCF High Power and 50 mm with OO50. This makes the product suitable for short-range and compact sensing applications. The arrangement eliminates the need for a separate receiver fibre at the sensing point.

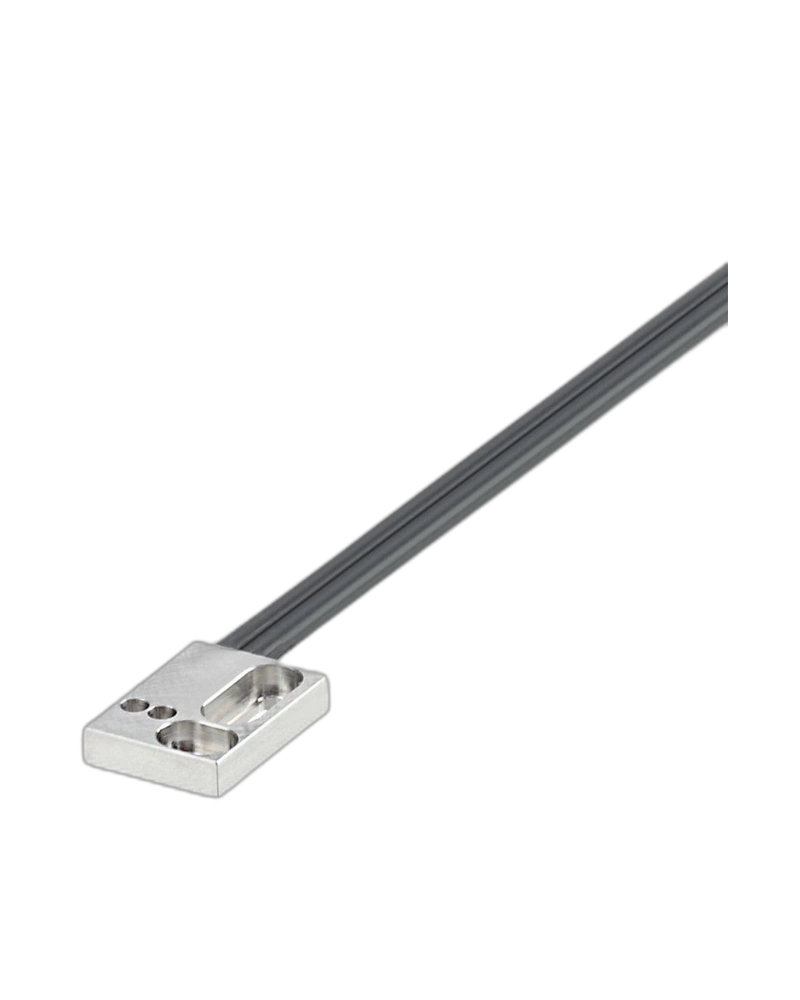

The sensing head is angled and has dimensions of 3 x 11 x 15 mm. This compact arrangement allows the sensor head to be positioned close to machine components and targets. The angled configuration can simplify installation where straight access is difficult. The flat rectangular design is particularly useful in space-constrained automation systems. It supports practical integration into compact machinery.
The fibre assembly has a total length of 2000 mm and a minimum bending radius of 2 mm. This allows the fibre to be routed around machine frames and other components. PMMA fibre provides the optical transmission path while the stainless-steel fibre head and PE sheath provide mechanical protection. The sensor operates from -40 to 70°C. Two M2 stainless-steel hexagon nuts are supplied for mounting.
Diffuse reflection sensing
OBF / OCF / OO50 compatibility
620 mm OCF High Power range
Angled sensing head
3 x 11 x 15 mm probe
2000 mm fibre length
2 mm minimum bending radius
PMMA fibre
Stainless-steel fibre head
Short-range object detection
Presence detection
Assembly machinery
Packaging systems
Conveyor automation
Component detection
Industrial inspection
Machine automation
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | E21314 |
| Product Type | Fibre Optic Diffuse Reflection Sensor |
| Product Designation | FT-11-EPV-Q3/F2x1/2m |
| Function Principle | Diffuse reflection sensor |
| Application | Industrial environments |
| Amplifier Compatibility | OBF / OCF / OO50 |
| OBF Range | 25 mm |
| OCF High Power Range | 620 mm |
| OO50 Range | 50 mm |
| Ambient Temperature | -40...70°C |
| Weight | 45 g |
| Sensing Head Version | Angled |
| Sensing Head Height | 3 mm |
| Sensing Head Width | 11 mm |
| Sensing Head Length | 15 mm |
| Probe Dimensions | 3 x 11 x 15 mm |
| Total Fibre Length | 2000 mm |
| Minimum Bending Radius | 2 mm |
| Core Diameter | 1 mm |
| Fibre Material | PMMA |
| Fibre Head Material | Stainless steel 303 / 1.4305 |
| Fibre Sheath Material | PE |
| Supplied Hardware | 2 × M2 hexagon nuts |
| Nut Material | Stainless steel |
| Optional Accessory | Fibre optic cutter E20600 |
| Pack Quantity | 1 pc |
