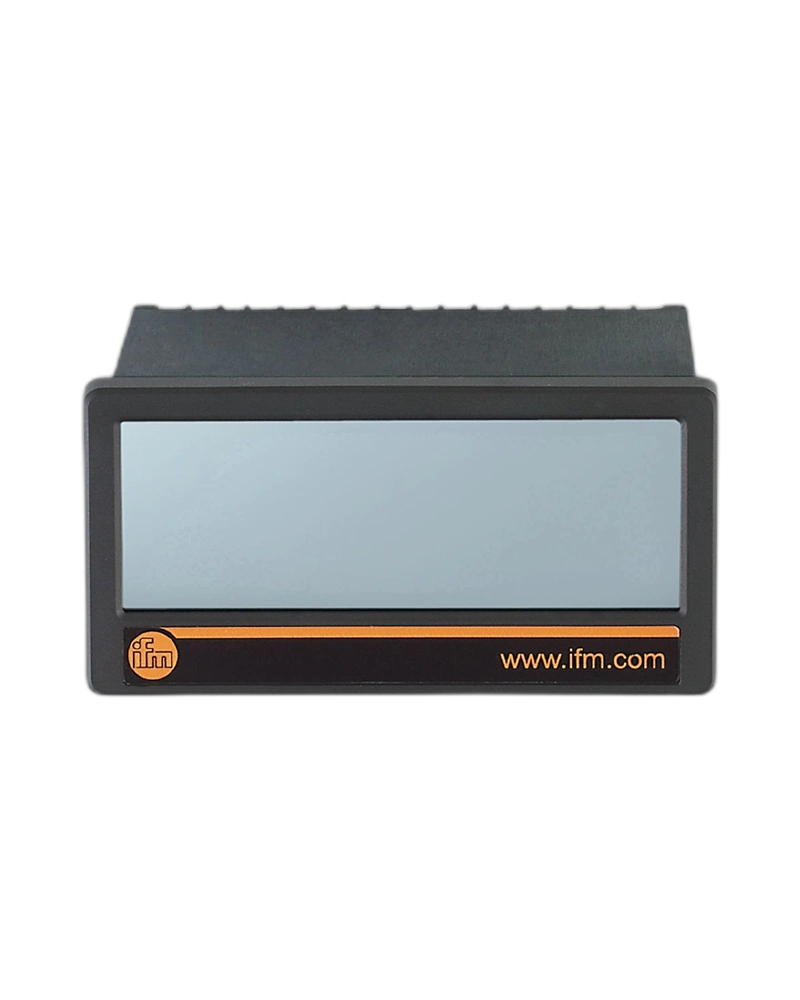

The IFM DX2032 is a DC-powered FX460 multifunction display for monitoring revolution, speed and time with analogue output functionality. It provides clear visualisation of machine-motion parameters and can exchange analogue signals with automation equipment. The device is suitable for rotating machinery, production equipment and industrial control panels requiring flexible monitoring and signal integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DX2032 is an industrial multifunction display designed to monitor revolution, speed and time. It provides analogue output functionality in addition to its visual display capability. This allows measured information to be transmitted to connected automation equipment. The unit is designed for panel installation and can support machine-control and process-monitoring applications.
The device processes signals from sensors or encoders and displays motion-related values. Its analogue output provides a standard signal interface for controllers or monitoring equipment. IFM documentation for the FX460 family identifies analogue voltage/current output capabilities for the DX2032. The panel-mount design provides a convenient operator interface.
The DX2032 is suitable for machines where speed or revolution information needs to be both displayed locally and provided to another automation device. The analogue output can support integration with control systems, recorders or additional monitoring equipment. This makes the display useful for production machinery, rotating equipment, conveyors and process applications requiring continuous motion information.
The DX2032 combines multifunction visualisation with analogue signal output. This makes it more versatile than a display-only device when machine data must also be transferred to a controller. Its FX460 design, panel installation and configurable monitoring functions make it suitable for industrial automation and equipment where motion values need to be monitored and integrated.
FX460 multifunction display
DC supply
Revolution monitoring
Speed monitoring
Time monitoring
Analogue output
Voltage/current output capability
Sensor and encoder compatibility
Panel mounting
Industrial automation integration
Speed monitoring
Motor control
Rotating machinery
Conveyor systems
Production equipment
Machine control panels
Process monitoring
Industrial automation
Motion control
Equipment performance monitoring
| Specification | Details |
|---|---|
| Product | DX2032 |
| Display family | FX460 |
| Function | Revolution, speed and time |
| Supply | DC |
| Analogue output | Yes |
| Voltage output | -10...10 V / 0...10 V |
| Current output | 0...20 mA / 4...20 mA |
| Resolution | 16 bit |
| Accuracy | ±0.1 % |
| Mounting | Panel |
| Manufacturer | IFM |
