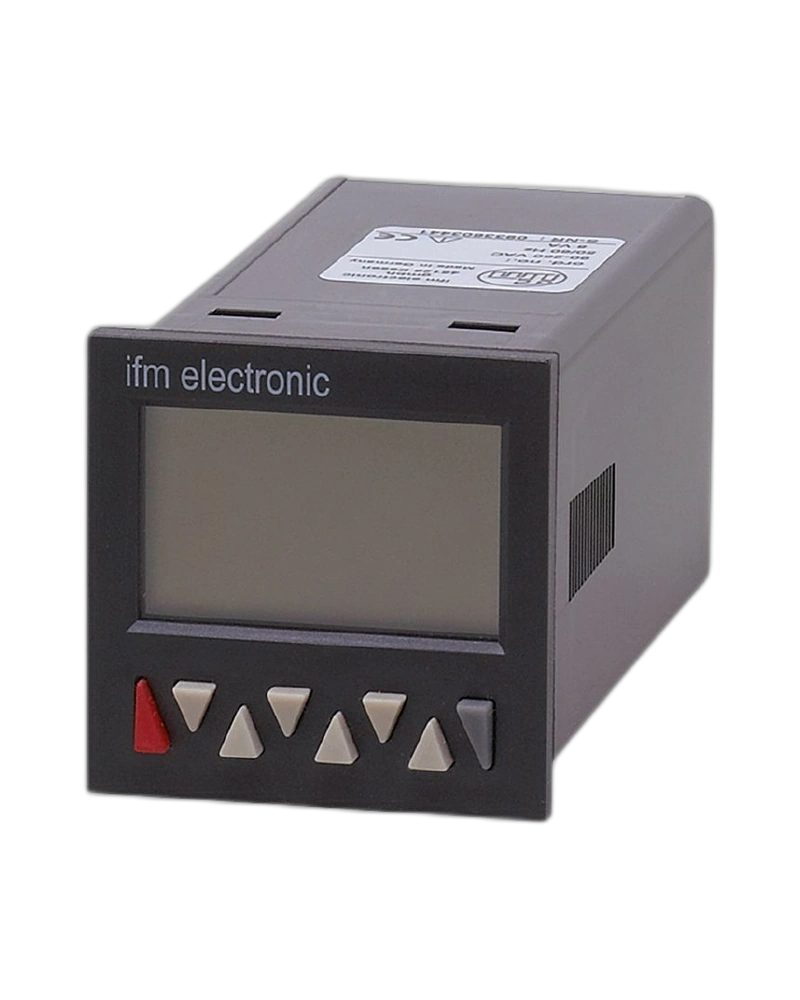

E89005 is a preset counter designed for monitoring and evaluating sensor switching signals in industrial applications. It features a clearly visible two-line, six-digit LCD display with green backlighting. The counter can be used for pulse, frequency, time and operating-hour measurement. Two digital inputs and two relay outputs provide flexible control and monitoring capabilities
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
E89005 is an industrial preset counter with two configurable presets. It is designed for evaluating switching signals from sensors and displaying measured values clearly to the operator.
Display and Operation
The unit features a two-line, six-digit LCD display with green backlighting. Eight front-mounted pushbuttons allow convenient parameter configuration and operation.
Counting Functions
E89005 can be used for pulse, frequency, time and operating-hour counting. Two pulse inputs support adding and subtracting functions, providing flexibility for different counting applications.
Industrial Applications
The counter can be integrated into machines and control panels for production counting, machine monitoring, process measurement and operating-hour monitoring.
Key Features
Preset counter with two presets
Two digital inputs
Two relay outputs
Two-line LCD display
Six-digit green backlit display
Eight front-panel pushbuttons
Pulse counting
Frequency counting
Time counting
Operating-hour counting
24 V DC sensor auxiliary supply
IP65 protection on front
Panel mounting
Applications
Production counting
Machine monitoring
Pulse evaluation
Frequency monitoring
Operating-hour measurement
Process control
Sensor signal evaluation
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E89005 |
| Model | COUNTER/210/LCD |
| Product Type | Preset counter |
| Application | Preset counter with 2 presets |
| Nominal Voltage | 90–260 V AC |
| Frequency | 50–60 Hz |
| Sensor Auxiliary Supply | 24 V DC ±15%, 80 mA |
| Digital Inputs | 2 |
| Relay Outputs | 2 |
| Display | 2 × 7-segment LCD, 6-digit |
| Operating Elements | 8 pushbuttons |
| Dimensions | 48 × 48 × 107 mm |
| Panel Cutout | 45 × 45 mm |
| Ambient Temperature | -20 to +65 °C |
| Front Protection | IP65 |
| Weight | 214.5 g |
| Housing Material | PC black |
| Pack Quantity | 1 piece |
