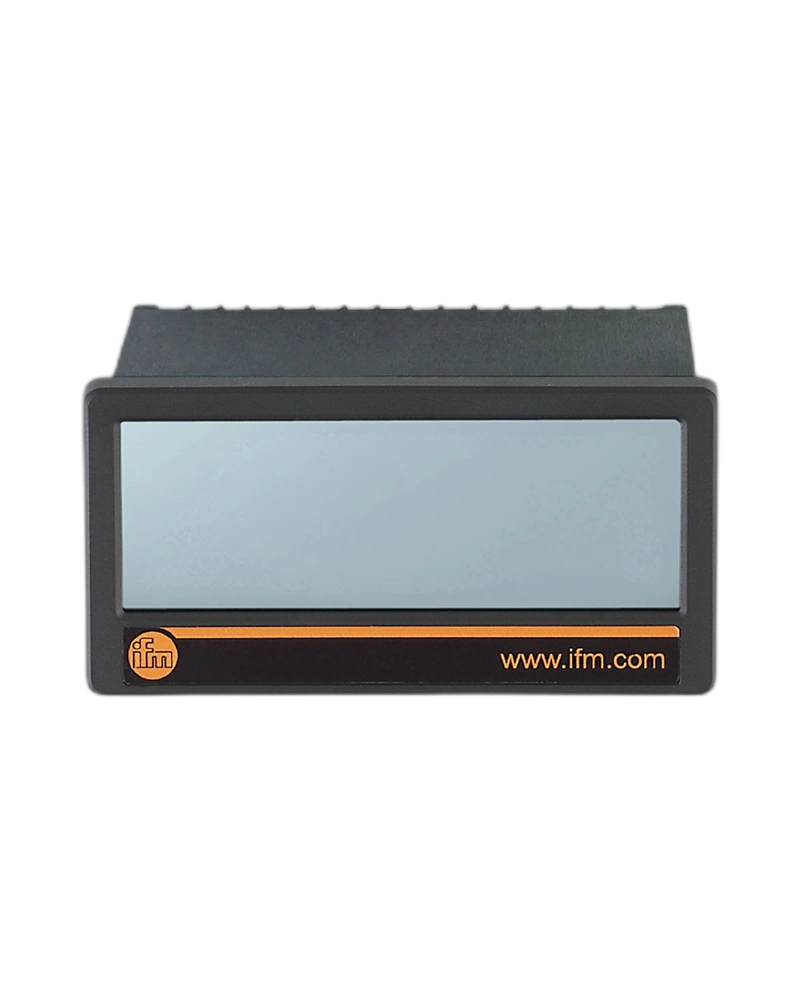

The IFM DX2055 is a multifunction display designed for monitoring analogue standard signals in industrial automation systems. With two analogue inputs, four digital outputs and IO-Link communication, it provides clear signal visualization and convenient process monitoring for pressure, temperature, flow and other analogue measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM DX2055 multifunction display provides a practical solution for displaying and monitoring analogue standard signals in industrial environments. It supports two analogue inputs for current and voltage signals and communicates through IO-Link. The clear display and flexible configuration make it suitable for integrating process values into modern automation systems while providing operators with direct and convenient access to important measurement information.
The unit is designed to monitor analogue signals such as 0...20 mA and -10...10 V. Its 16-bit analogue input resolution enables detailed signal processing and display. Four digital outputs provide additional switching capabilities for process control, signalling or alarm functions, making the device suitable for applications where measurement visualization and control functions are required in the same installation.
IO-Link communication enables the DX2055 to exchange process and diagnostic information with an IO-Link master. The device supports IO-Link version 1.1 and COM3 communication. This allows the display to become part of an intelligent automation architecture, supporting centralized parameterization, process-data communication and easier integration into industrial control systems.
The DX2055 can be used for displaying and monitoring values from pressure sensors, temperature sensors, flow sensors and other analogue devices. Its compact rectangular housing and DC power supply make it suitable for control panels and industrial installations where reliable signal visualization and convenient process monitoring are required.
Multifunction display for analogue standard signals
Two analogue inputs
Supports current and voltage signal inputs
0...20 mA current input
-10...10 V voltage input
16-bit analogue input resolution
Four digital outputs
IO-Link communication interface
IO-Link version 1.1 with COM3
Compact 48 × 112 × 116 mm housing
Pressure signal monitoring
Temperature measurement display
Flow measurement monitoring
Industrial process monitoring
Control panel instrumentation
Machine automation
Analogue sensor value visualization
Alarm and switching applications
| Specification | Details |
|---|---|
| Product code | DX2055 |
| Product type | Multifunction display |
| Communication | IO-Link |
| Operating voltage | 18...30 V DC |
| Analogue inputs | 2 |
| Current input | 0...20 mA |
| Voltage input | -10...10 V |
| Analogue resolution | 16 bit |
| Digital outputs | 4 |
| Maximum output current | 200 mA per output |
| Housing dimensions | 48 × 112 × 116 mm |
| IO-Link revision | 1.1 |
| Transmission type | COM3 |
| Brand | IFM |
