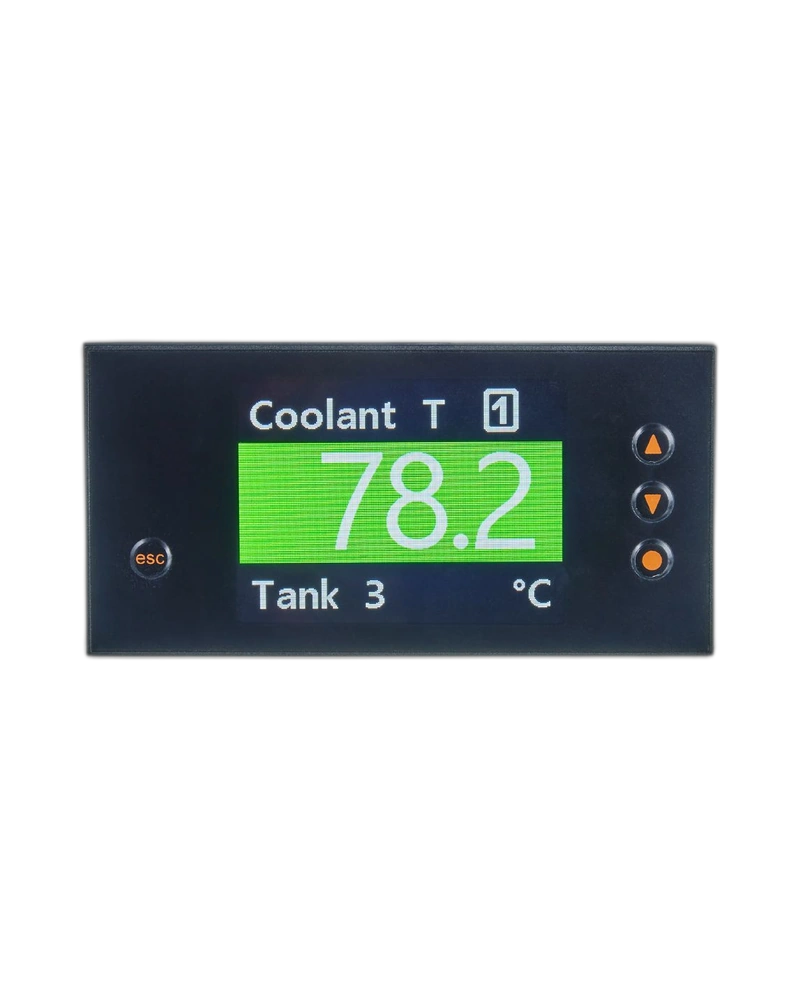

The IFM DX1063 is a multifunction display designed for monitoring analogue standard signals. Its universal input supports current, voltage and resistance-based measurements, including PT100/PT1000 sensors and thermocouples. The unit provides a clear panel display with programmable functions and relay outputs, making it suitable for process monitoring, measurement and industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DX1063 is a multifunction industrial display for monitoring analogue signals. Its universal input architecture allows different signal types to be processed, providing flexibility for measurement applications. Depending on the connected sensor or transmitter, the device can monitor current, voltage, resistance, temperature and frequency-related signals. This makes it useful for applications requiring a versatile local monitoring interface.
The display provides a universal input capable of handling analogue current and voltage signals as well as PT100/PT1000 resistance measurements. It supports configurable measurement ranges and provides relay outputs for monitoring functions. Its panel-mount housing is designed for control cabinets and machine panels. The device combines measurement, visualisation and control functions in one compact unit.
The DX1063 is suited to industrial processes where different analogue signals must be displayed and monitored. It can accept 0...22 mA current signals, 0...12 V voltage signals and PT100/PT1000 inputs. Its high-resolution input processing supports accurate measurement, while relay outputs can be used for monitoring or switching tasks. This makes it useful for versatile process instrumentation.
The DX1063 reduces the need for separate display devices for different analogue signal types. Its universal input supports several measurement technologies, while relay outputs provide additional monitoring capability. The compact panel-mount format is suitable for control cabinets and operator panels. It is a practical solution for industrial applications requiring flexible analogue signal monitoring.
Universal analogue input
0...22 mA current input
0...12 V voltage input
PT100/PT1000 input
14-bit resolution
High measurement accuracy
Two relay outputs
Panel-mount design
Compact 48 x 109 x 42 mm housing
Industrial process monitoring
Temperature monitoring
Analogue signal monitoring
Process instrumentation
Control panels
Machine monitoring
Industrial measurement
Heating and cooling systems
Process automation
Equipment monitoring
Industrial control systems
| Specification | Details |
|---|---|
| Product | DX1063 |
| Function | Multifunction analogue display |
| Supply | 21.6...26.4 V DC |
| Current consumption | <65 mA |
| Current input | 0...22 mA |
| Current input resistance | 125 Ω |
| Voltage input | 0...12 V |
| Voltage input resistance | >100 kΩ |
| Resolution | 14 bit |
| Current/voltage accuracy | 0.2 % ±1 digit |
| PT100/PT1000 range | -200...850 °C |
| Relay outputs | 2 |
| Dimensions | 48 x 109 x 42 mm |
| Panel cutout | 92 x 45 mm |
| Manufacturer | IFM |
