The IFM DW2503 is a programmable frequency-to-current converter designed to convert pulse or frequency signals into analogue standard signals. It features a DIN-rail mounting housing, OLED display and programming buttons for convenient configuration. With an analogue 4...20 mA output and relay output, it can be used for signal conversion and monitoring in industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

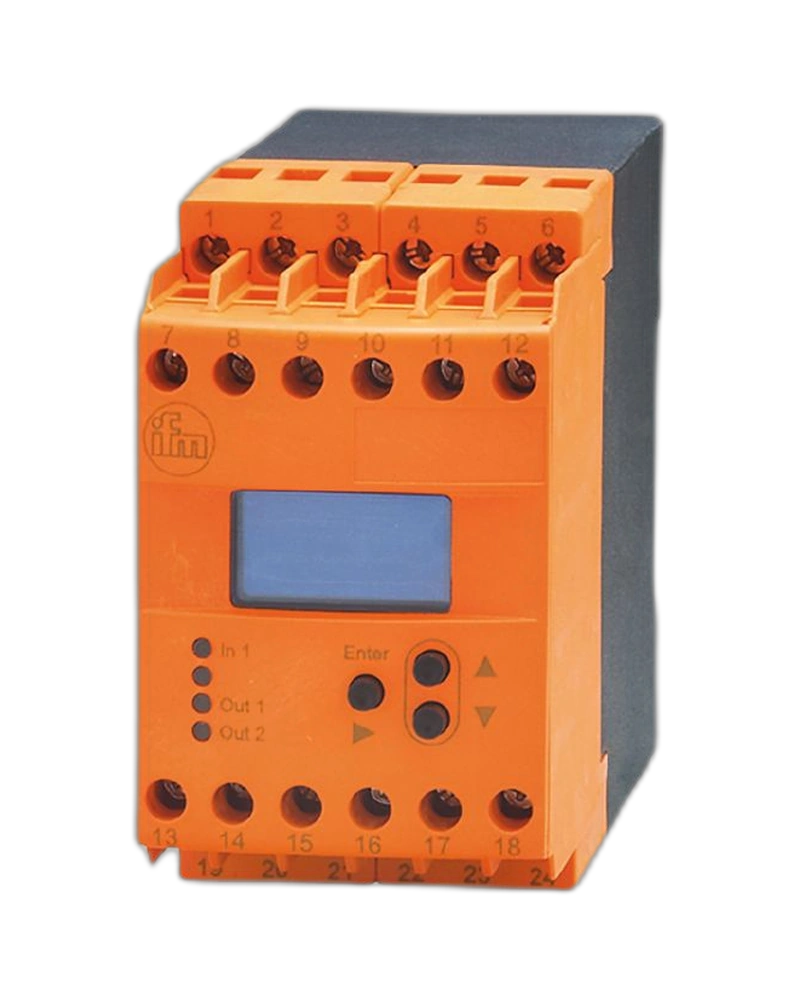

The DW2503 is a programmable frequency-to-current converter designed for industrial signal processing. It converts pulse sequences into analogue standard signals and provides a user interface consisting of an OLED display and programming buttons. The unit is housed in a rectangular DIN-rail mounting enclosure, making it suitable for control cabinets and industrial automation installations.
The device accepts frequency or pulse information and converts it into an analogue current output. It provides one analogue output and one relay output for integration with automation systems. The OLED display provides convenient access to operating and configuration information, while programming buttons simplify parameter adjustment. Its DIN-rail mounting design supports installation inside electrical control cabinets.
The DW2503 is useful when a pulse or frequency signal must be converted into a standard analogue signal for PLCs, controllers or monitoring systems. The 4...20 mA output is suitable for transmitting converted process information over industrial control wiring. The relay output can provide switching functionality for monitoring conditions, while the programmable design allows adaptation to different signal-processing requirements.
The DW2503 combines frequency conversion, analogue output and relay switching in a compact DIN-rail device. Its programmable design provides flexibility, while the OLED display and buttons simplify setup. The 4...20 mA output makes it suitable for integration with standard automation equipment. IFM lists the DW2503 as an archived article and identifies DW3003 as an alternative; technical data may differ between the two.
Programmable frequency-to-current conversion
DIN-rail mounting
OLED display
Programming buttons
LED status indicators
One analogue output
4...20 mA analogue output
One relay output
100...240 V AC/DC supply
Compact control-cabinet design
Frequency signal conversion
Pulse signal processing
Analogue signal generation
PLC signal interfacing
Industrial process monitoring
Control cabinet installations
Automation signal conditioning
Machine control systems
Process instrumentation
Industrial measurement systems
| Specification | Details |
|---|---|
| Product | DW2503 |
| Function | Frequency-to-current conversion |
| Mounting | DIN rail |
| Display | OLED |
| Programming | Push buttons |
| Analogue outputs | 1 |
| Analogue output | 4...20 mA |
| Relay outputs | 1 |
| Supply voltage AC | 110...240 V AC |
| Supply voltage DC | 27 V DC |
| Housing dimensions | 78 x 45 x 124.7 mm |
| Status | Archived |
