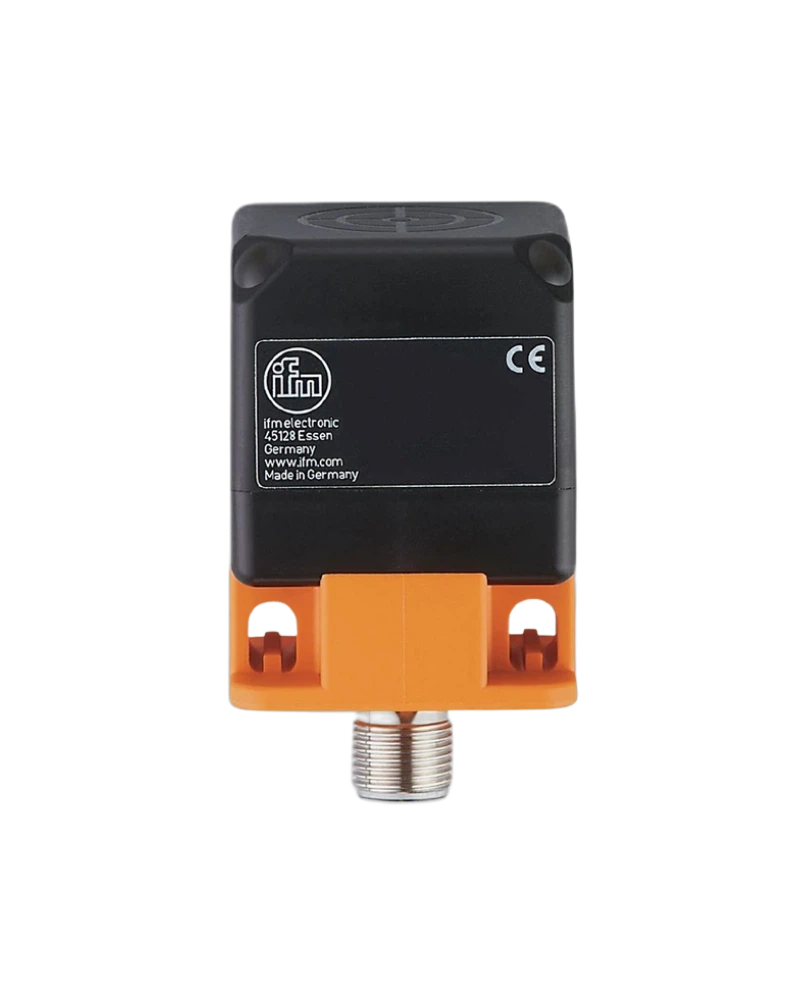

IFM DI5034 is a compact evaluation unit for reliable speed monitoring in industrial machines. It uses an inductive measuring principle and provides configurable switching functionality. The unit supports a sensing range of 24 mm and a setting range of 5 to 9600 pulses/min according to the IFM datasheet. It also provides IO-Link communication for parameterisation and diagnostics. The unit is designed for demanding industrial environments with IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The DI5034 combines sensing and evaluation in one compact industrial device. It is designed to monitor rotating machine components and detect speed deviations. The switching output can be configured as normally open or normally closed. PNP/NPN electrical output functionality provides flexibility for control-system integration. Short-circuit and overload protection improve operational reliability.
The device provides a configurable setting range from 5 to 9600 impulses/min. Its maximum damping frequency is specified as 12000 impulses/min. The start-up delay can be adjusted from 0 to 30 seconds. The device uses inductive measurement for dependable metallic target detection. These features make it suitable for monitoring machine shafts, drives and rotating equipment.
The DI5034 supports IO-Link communication with COM2 transmission at 38.4 kBaud. IO-Link functions include device identification, process-data variables, diagnosis, multiple switching signals and teach functionality. The minimum process cycle time is specified as 3.2 ms. The unit has an IP67 protection rating and an ambient temperature range of -40 to 85°C.
Compact speed evaluation unit
Inductive measuring principle
24 mm sensing range
5–9600 impulses/min setting range
12000 impulses/min maximum damping frequency
PNP/NPN output design
Configurable NO/NC output
Short-circuit protection
Overload protection
IO-Link communication
Device diagnosis
Teach functionality
IP67 protection
Wide operating temperature range
Rotational speed monitoring
Conveyor speed monitoring
Motor monitoring
Machine shaft monitoring
Drive monitoring
Industrial production machinery
Material handling systems
Machine protection
Automation equipment
Condition monitoring
The DI5034 combines sensing and evaluation in one compact industrial device. It is designed to monitor rotating machine components and detect speed deviations. The switching output can be configured as normally open or normally closed. PNP/NPN electrical output functionality provides flexibility for control-system integration. Short-circuit and overload protection improve operational reliability.
The device provides a configurable setting range from 5 to 9600 impulses/min. Its maximum damping frequency is specified as 12000 impulses/min. The start-up delay can be adjusted from 0 to 30 seconds. The device uses inductive measurement for dependable metallic target detection. These features make it suitable for monitoring machine shafts, drives and rotating equipment.
The DI5034 supports IO-Link communication with COM2 transmission at 38.4 kBaud. IO-Link functions include device identification, process-data variables, diagnosis, multiple switching signals and teach functionality. The minimum process cycle time is specified as 3.2 ms. The unit has an IP67 protection rating and an ambient temperature range of -40 to 85°C.
Compact speed evaluation unit
Inductive measuring principle
24 mm sensing range
5–9600 impulses/min setting range
12000 impulses/min maximum damping frequency
PNP/NPN output design
Configurable NO/NC output
Short-circuit protection
Overload protection
IO-Link communication
Device diagnosis
Teach functionality
IP67 protection
Wide operating temperature range
Rotational speed monitoring
Conveyor speed monitoring
Motor monitoring
Machine shaft monitoring
Drive monitoring
Industrial production machinery
Material handling systems
Machine protection
Automation equipment
Condition monitoring
