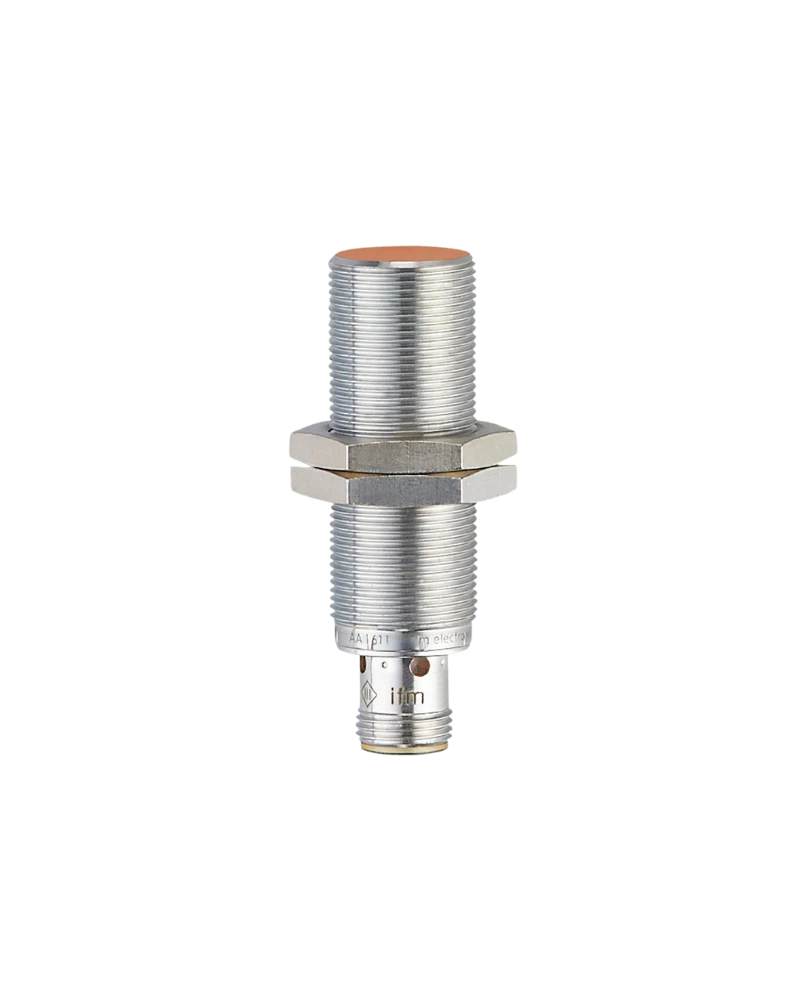

IFM DI5029 is a compact speed monitoring unit designed for monitoring rotating and linear machine movements. It uses an inductive sensing principle with a 7 mm sensing range. The device supports PNP/NPN operation and configurable normally open or normally closed output functions. IO-Link communication provides digital connectivity for device monitoring and parameterization. The product operates from a 10–30 V DC supply and supports a 5–24,000 Imp/min setting range. Its M18 × 1 threaded housing and IP-rated construction make it suitable for industrial machine environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
DI5029 continuously evaluates movement to identify underspeed and blocking conditions. The inductive sensing principle allows non-contact monitoring of suitable metallic targets. Its 7 mm sensing range supports practical machine installation. The wide setting range allows configuration for different rotational speeds. The switching output can provide direct feedback to a control system. This makes the unit suitable for machine protection and process monitoring.
The IO-Link interface provides digital communication with compatible automation systems. It can support device identification, configuration and diagnostics. Digital communication can improve maintenance efficiency. Operators can access device information without manually inspecting the sensor. The device can therefore be integrated into connected factory architectures. IO-Link also supports more flexible parameter management.
DI5029 uses an M18 × 1 threaded housing with a 60 mm length. Its construction is designed for industrial machine environments. The housing uses coated brass with suitable polymer components. The product includes visual LED indication for operating conditions. A standard M12 electrical connection supports industrial wiring. The design provides a compact and robust solution for speed monitoring.
Compact M18 speed monitor
DGK3007BWRKG/IO/US
7 mm sensing range
10–30 V DC operation
PNP/NPN configurable
NO/NC configurable
IO-Link communication
5–24,000 Imp/min setting range
Inductive sensing
Underspeed monitoring
Blocking detection
Short-circuit protection
Overload protection
M18 × 1 housing
Industrial LED indication
Conveyors
Rotating shafts
Gear systems
Motor monitoring
Pump monitoring
Fan monitoring
Machine protection
Industrial automation
| Specification | Details |
|---|---|
| Product Code | DI5029 |
| Product Type | Compact speed monitor |
| Model | DGK3007BWRKG/IO/US |
| Measuring Principle | Inductive |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC configurable |
| Sensing Range | 7 mm |
| Operating Distance | 0–5.67 mm |
| Nominal Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Output Current | 100 mA |
| Voltage Drop | 2.5 V max. |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Setting Range | 5–24,000 Imp/min |
| IO-Link | Yes |
| Communication | COM2 |
| Housing | M18 × 1 |
| Length | 60 mm |
| Mounting | Threaded |
| Electrical Connection | M12 |
| Protection | Refer to exact datasheet |
| Pack Quantity | 1 piece |
