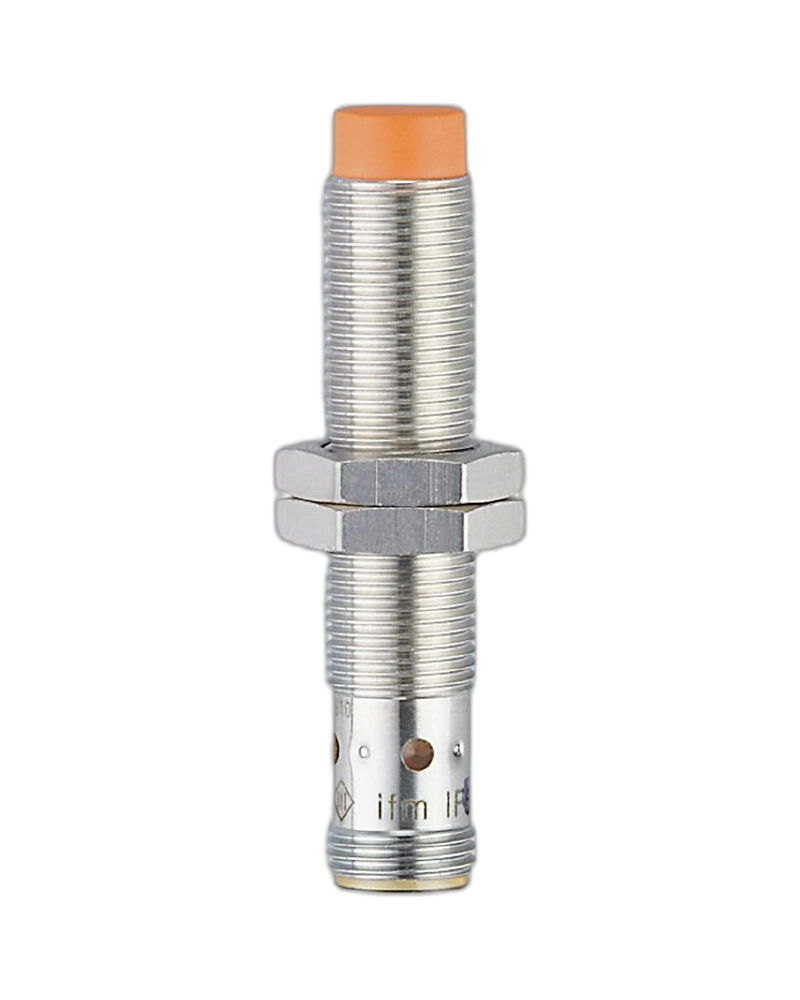

IFM DI5028 is a compact IO-Link-enabled speed monitoring unit designed for industrial rotating and linear movement applications. It uses inductive sensing to detect suitable metallic targets. The unit supports PNP/NPN operation with configurable normally open or normally closed switching. It provides a wide speed setting range suitable for demanding machine monitoring applications. The device uses an M12 × 1 threaded housing with a 60 mm length. Verified technical information specifies IO-Link communication, IP66/IP67/IP68/IP69K protection and a 5–30,000 Imp/min setting range.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
DI5028 is designed to detect underspeed and blocking conditions. Its inductive sensing principle provides non-contact target detection. The device can monitor rotating shafts, gears and other suitable machine components. A wide setting range provides flexibility for different operating speeds. The unit can be integrated into machine control systems through its switching output. It is suitable for continuous industrial speed monitoring.
IO-Link communication provides digital access to the sensor. It supports device identification, diagnostics and parameter-related functions. This helps simplify commissioning and maintenance. The communication interface can also provide process information to the control system. Digital integration is useful for smart manufacturing applications. DI5028 combines compact sensing with intelligent communication.
DI5028 provides a compact M12 × 1 threaded housing. Its high protection rating makes it suitable for demanding industrial environments. The housing uses coated brass and industrial polymer materials. The device can withstand specified shock and vibration conditions. Its compact size makes it suitable for installations with limited space. This combination supports dependable machine monitoring.
Compact M12 speed monitor
DFK36.5-WRKG/IO/US
Inductive sensing
PNP/NPN output
NO/NC configurable
IO-Link interface
Wide speed setting range
Underspeed detection
Blocking detection
IP66/IP67/IP68/IP69K protection
M12 × 1 housing
60 mm length
Digital diagnostics
Industrial construction
Machine monitoring
Rotating machinery
Conveyor systems
Gear monitoring
Motor systems
Pump monitoring
Fan monitoring
Machine protection
Industrial automation
| Specification | Details |
|---|---|
| Product Code | DI5028 |
| Product Type | Compact speed monitoring unit |
| Model | DFK36.5-WRKG/IO/US |
| Measuring Principle | Inductive |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC configurable |
| Sensing Range | Refer to exact datasheet |
| Nominal Voltage | 10–30 V DC class |
| Current Consumption | Refer to datasheet |
| Protection Class | III |
| Reverse Polarity | Yes |
| Output Current | Refer to datasheet |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Setting Range | Up to 30,000 Imp/min class |
| IO-Link | Yes |
| Transmission | COM2 |
| Process Cycle | 3.2 ms |
| Housing | M12 × 1 |
| Length | 60 mm |
| Mounting | Threaded |
| Protection Rating | IP66/IP67/IP68/IP69K |
| Ambient Temperature | -40 to 85 °C class |
| Materials | Coated brass / industrial polymers |
| Pack Quantity | 1 piece |
