IFM DI5026 is a compact evaluation unit designed for monitoring rotational and linear movement. It uses an inductive sensing principle and supports IO-Link communication. The unit operates from a 10–36 V DC supply and has a sensing range of 10 mm. Its PNP/NPN output can be configured for normally open or normally closed operation. The device supports speed setting through a multiturn potentiometer or IO-Link. Verified specifications include a 0–30 second start-up delay, 18,000 Imp/min maximum damping frequency and IP65/IP67 protection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
DI5026 provides speed monitoring for rotating and linear movement. It is designed to detect underspeed and blocking conditions. The inductive sensing principle allows non-contact monitoring. The 10 mm sensing range provides practical installation flexibility. The device can be configured according to machine requirements. This makes it suitable for a wide range of industrial automation applications.
IO-Link allows DI5026 to communicate with a compatible IO-Link master. The interface supports device identification, process data, diagnostics and parameter-related functions. The switch point can be adjusted through IO-Link or the integrated multiturn potentiometer. This provides flexibility during commissioning. Digital communication also supports maintenance and troubleshooting. DI5026 is suitable for smart factory environments where connected sensors are preferred.

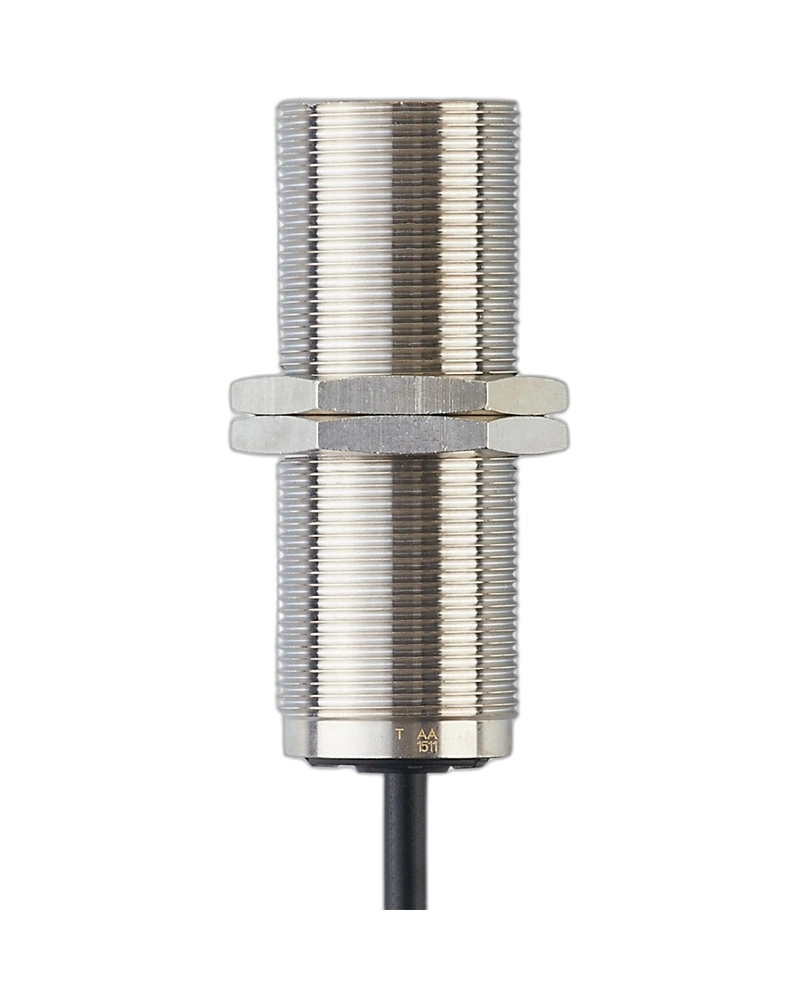

DI5026 uses an M30 × 1.5 threaded housing with an 80 mm length. It is flush mountable and has IP65/IP67 protection. The device supports ambient temperatures from -25 to 80 °C. A green LED indicates switching status. The housing uses brass with a special coating along with PA and TPE-U components. The specified tightening torque is 50 Nm.
10 mm sensing range
10–36 V DC supply
PNP/NPN configurable output
Normally open/closed configuration
IO-Link communication
COM2 communication
Multiturn potentiometer
0–30 s start-up delay
5–18,000 Imp/min monitoring capability range
Inductive sensing
IP65/IP67 protection
M30 × 1.5 housing
Green status LED
Digital diagnostics
Smart Sensor functionality
Conveyor speed monitoring
Motor speed monitoring
Rotating shaft monitoring
Pump monitoring
Fan monitoring
Gear monitoring
Blocking detection
Industrial automation
| Specification | Details |
|---|---|
| Product Code | DI5026 |
| Product Type | Compact speed evaluation unit |
| Model | DIA3010-WRKG/IO |
| Measuring Principle | Inductive |
| Electrical Design | PNP/NPN |
| Output Function | NO/NC configurable |
| Sensing Range | 10 mm |
| Operating Distance | 0–8.1 mm |
| Nominal Voltage | 10–36 V DC |
| Current Consumption | <22 mA |
| Protection Class | III |
| Reverse Polarity | Yes |
| Output Current | 250 mA |
| Voltage Drop | 2.5 V max. |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Setting Adjustment | Potentiometer / IO-Link |
| IO-Link | Yes |
| Transmission | COM2, 38.4 kBaud |
| Process Cycle | 3.2 ms |
| Start-Up Delay | 0–30 s |
| Max. Damping Frequency | 18,000 Imp/min |
| Housing | M30 × 1.5 threaded |
| Protection | IP65 / IP67 |
| Temperature | -25 to 80 °C |
