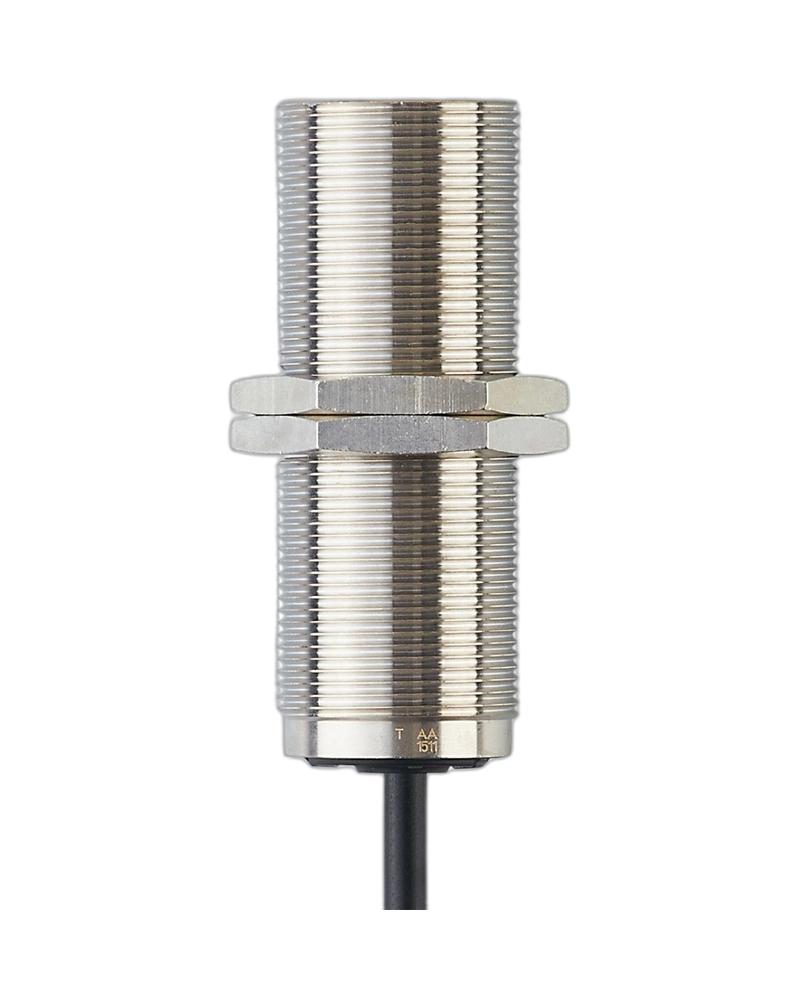

IFM DI5022 is a compact evaluation unit for monitoring speed in rotating and linear machine movements. It uses an inductive sensing principle to detect suitable metallic targets without physical contact. The device is designed for industrial automation applications involving underspeed and blocking detection. Its 10 mm nominal sensing range provides practical target detection for machine mechanisms. The unit operates within a low-voltage DC automation environment and provides a switching output. Its compact threaded construction supports integration into industrial machines and control systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
DI5022 continuously monitors movement and compares the detected speed against the configured monitoring condition. It can be used to identify underspeed situations before they affect the process. Blocking detection can also indicate when a rotating component has stopped unexpectedly. Non-contact sensing reduces mechanical wear. The device is suitable for continuous monitoring. This makes it useful in machine safety and maintenance-oriented applications.
The threaded housing provides convenient installation near a rotating target. Correct sensor alignment helps achieve reliable detection. The compact construction supports installation in areas where space is limited. Electrical protection features help support stable industrial operation. The switching output can be connected to PLC or control system inputs. This enables automatic machine responses to abnormal speed conditions.
DI5022 can reduce the need for separate speed monitoring hardware in suitable applications. Its compact construction simplifies machine integration. The inductive sensing principle provides reliable target detection. Configurable monitoring allows adaptation to machine operating requirements. Status indication supports commissioning and troubleshooting. It is therefore suitable for industrial automation systems requiring practical speed supervision.
Compact speed monitor
DIA3010-ZPKG configuration
Inductive detection
10 mm nominal sensing range
Speed monitoring
Underspeed detection
Blocking detection
Non-contact sensing
Industrial threaded housing
Switching output
Low-voltage DC operation
Protection features
Status indication
Compact installation
Machine monitoring capability
Conveyors
Rotating shafts
Fans
Pumps
Motors
Gear mechanisms
Machine blocking detection
Industrial automation
| Specification | Details |
|---|---|
| Product Code | DI5022 |
| Product Type | Compact evaluation unit |
| Model | DIA3010-ZPKG |
| Application | Speed monitoring |
| Measuring Principle | Inductive |
| Sensing Range | 10 mm |
| Nominal Voltage | 10–36 V DC |
| Electrical Design | Variant dependent |
| Output | Switching output |
| Output Function | Variant dependent |
| Protection Class | III |
| Reverse Polarity | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Setting Range | Refer to datasheet |
| Operating Distance | Refer to datasheet |
| Hysteresis | Refer to datasheet |
| Start-Up Delay | Refer to datasheet |
| Housing | Threaded |
| Mounting | Flush mountable |
| Thread | M30 × 1.5 class |
| Connection | Refer to datasheet |
| Protection Rating | IP65/IP67 class |
| Temperature Range | Refer to datasheet |
| Pack Quantity | 1 piece |
