Explore performance details, construction highlights, applications, and technical information in one clear overview.
It uses Through-beam sensing. The nominal sensing distance is 60 m.
The sensing principle is Through-beam. The nominal sensing distance is 60 m.
The optical emission is Infrared.
Ingress protection is rated IP67.
Dimensions are Ø 10 mm x 46 mm and the connection is Cable 15 m.
The operating temperature range is -20 °C … +60 °C.

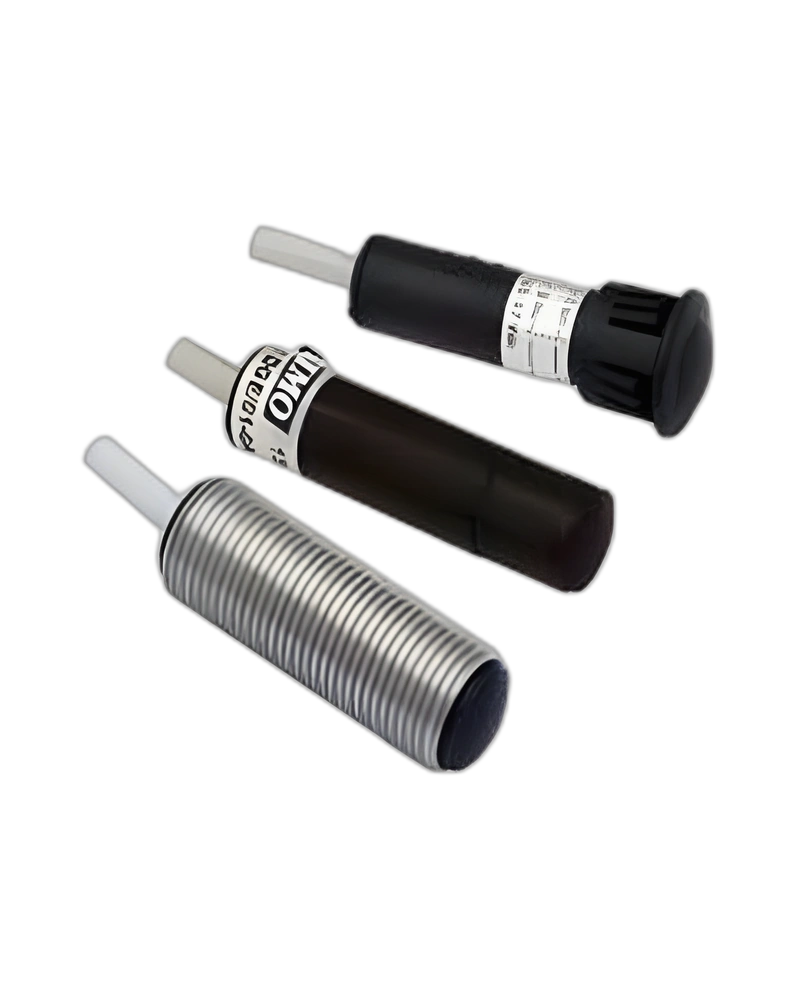

The model is part of the Cylindrical photoelectric sensors family.
The manufacturer part number is DGE/00-1C. This model is manufactured by M.D. Micro Detectors. The external-light interference limit is 20000 lx.
| Specification | Details |
|---|---|
| Model | DGE/00-1C |
| Manufacturer part number | DGE/00-1C |
| Manufacturer | M.D. Micro Detectors |
| Operating temperature | -20 °C … +60 °C |
| Dimensions | Ø 10 mm x 46 mm |
| Connection | Cable 15 m |
| Operating principle | Through-beam |
| Product family | Cylindrical photoelectric sensors |
| Nominal sensing distance | 60 m |
| Degree of protection | IP67 |
| External light interference | 20000 lx |
| Emission | Infrared |
