Product Overview

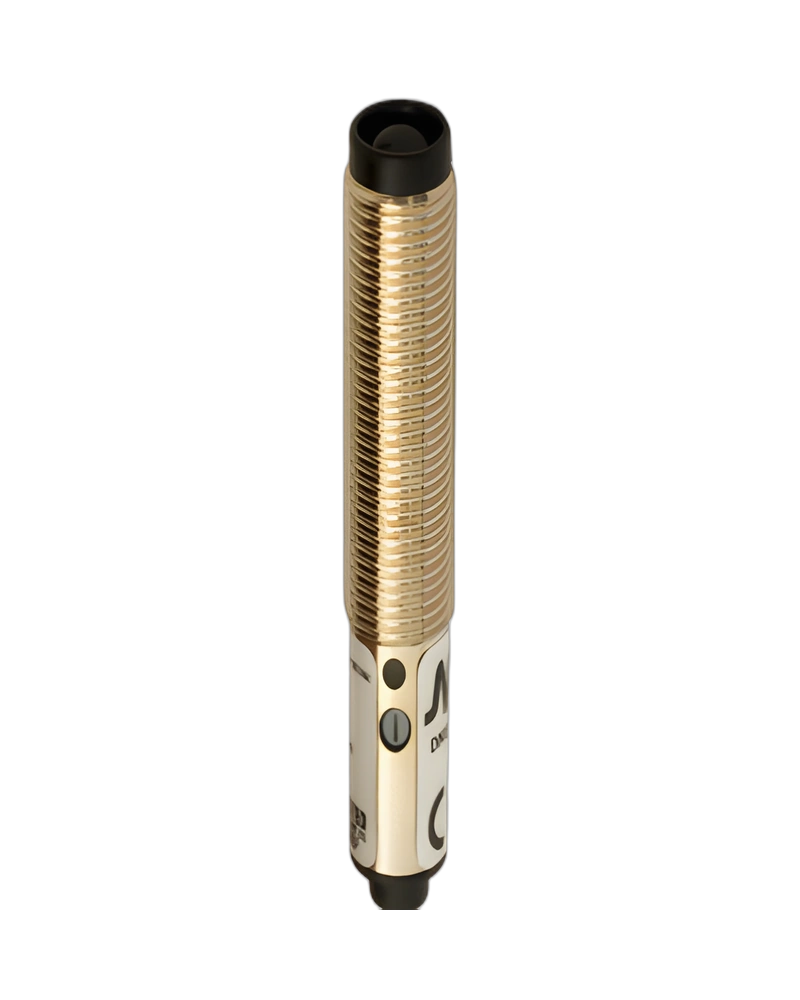

SSZ/DN-1E is a photoelectric sensor for object presence and position detection. It uses through-beam receiver as its sensing or measurement method. The specified operating range or reference distance is 14 m. The output is NPN. The supply is 10…30 VDC. The connection is M12 plug. The housing is nickel-plated brass.

Sensing and Technical Performance

The optical function is through-beam receiver. The operating range is 14 m.

The specified value of 14 m gives the reference distance or measurement envelope for the device. The through-beam receiver arrangement determines how the device responds to the target or measures distance.

Electrical and Interface Details

The supply is 10…30 VDC. The output is NPN. The maximum load current is 100 mA max.

The supply of 10…30 VDC defines the required operating voltage. The NPN output defines the switching or signal arrangement.

Mechanical and Environmental Characteristics

The housing is nickel-plated brass. The connection is M12 plug. Protection is rated IP67. The operating temperature range is -25…+75 °C.

The nickel-plated brass housing provides the specified mechanical format. The M12 plug connection provides the stated physical interface. Protection is rated IP67. The operating temperature range is -25…+75 °C.

Key Product Features

• Optical function: through-beam receiver
• Typical sensing range: 14 m
• Output: NPN
• Supply voltage: 10…30 VDC
• Load current: 100 mA max.
• Connection: M12 plug
• Housing: nickel-plated brass
• Protection: IP67
• Operating temperature: -25…+75 °C

Technical Details

The optical function is through-beam receiver. The operating range is 14 m. The output is NPN. The supply is 10…30 VDC. The maximum load current is 100 mA max. Protection is rated IP67. The operating temperature range is -25…+75 °C. The connection is M12 plug. The housing is nickel-plated brass.

Technical Information

SSZ/DN-1E combines the photoelectric sensor characteristics given in the product specification. The optical function is through-beam receiver. The output is NPN. The supply is 10…30 VDC. The connection is M12 plug. The housing is nickel-plated brass. Protection is rated IP67. These technical values describe the sensing, electrical and mechanical properties of SSZ/DN-1E.
