Product Overview

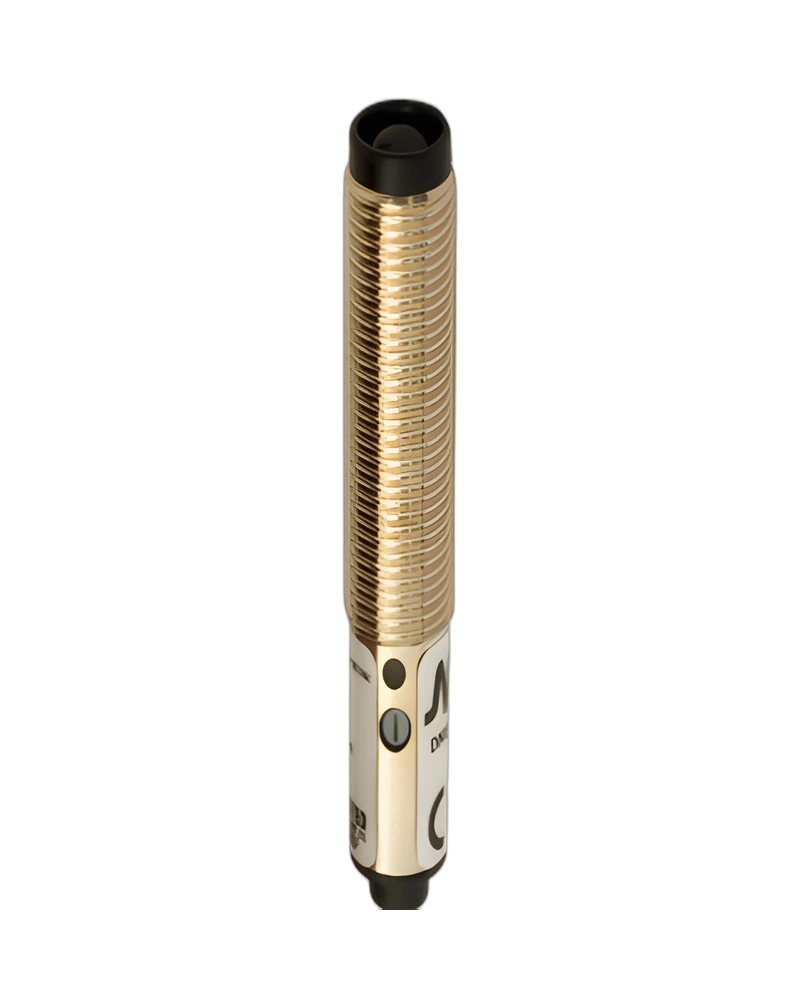

FALS/BP-1E is an m18 cylindrical laser diffuse photoelectric sensor for object presence and position detection. The specified operating range or reference distance is Axial 30…100 mm; radial 30…80 mm. The output is PNP. The supply is 10…30 VDC. The connection is M12 connector. The housing is M18 cylindrical.

Sensing and Technical Performance

The operating range is Axial 30…100 mm; radial 30…80 mm. Emission is Red laser, 650 nm, Class 1. The Adjustment is Sensitivity trimmer.

The specified value of Axial 30…100 mm; radial 30…80 mm gives the reference distance or measurement envelope for the device.

Electrical and Interface Details

The supply is 10…30 VDC. The output is PNP. The maximum load current is 100 mA max.

The supply of 10…30 VDC defines the required operating voltage. The PNP output defines the switching or signal arrangement.

Mechanical and Environmental Characteristics

The housing is M18 cylindrical. The connection is M12 connector. Protection is rated IP67. The specified version is 77 where encoded.

The M18 cylindrical housing provides the specified mechanical format. The M12 connector connection provides the stated physical interface. Protection is rated IP67.

Key Product Features

• Sensor type: M18 cylindrical laser diffuse photoelectric sensor
• Nominal range: Axial 30…100 mm; radial 30…80 mm
• Emission: Red laser, 650 nm, Class 1
• Output: PNP
• Supply: 10…30 VDC
• Load current: 100 mA max.
• Adjustment: Sensitivity trimmer
• Connection: M12 connector
• Housing: M18 cylindrical
• Protection: IP67
• Special version: 77 where encoded

Technical Details

The sensor type is M18 cylindrical laser diffuse photoelectric sensor. Emission is Red laser, 650 nm, Class 1. The operating range is Axial 30…100 mm; radial 30…80 mm. The output is PNP. The supply is 10…30 VDC. The maximum load current is 100 mA max. The Adjustment is Sensitivity trimmer. Protection is rated IP67. The connection is M12 connector. The housing is M18 cylindrical.

Technical Information

FALS/BP-1E combines the m18 cylindrical laser diffuse photoelectric sensor characteristics given in the product specification. The sensor type is M18 cylindrical laser diffuse photoelectric sensor. The operating range is Axial 30…100 mm; radial 30…80 mm. The output is PNP. The supply is 10…30 VDC. The connection is M12 connector. The housing is M18 cylindrical. These technical values describe the sensing, electrical and mechanical properties of FALS/BP-1E.
