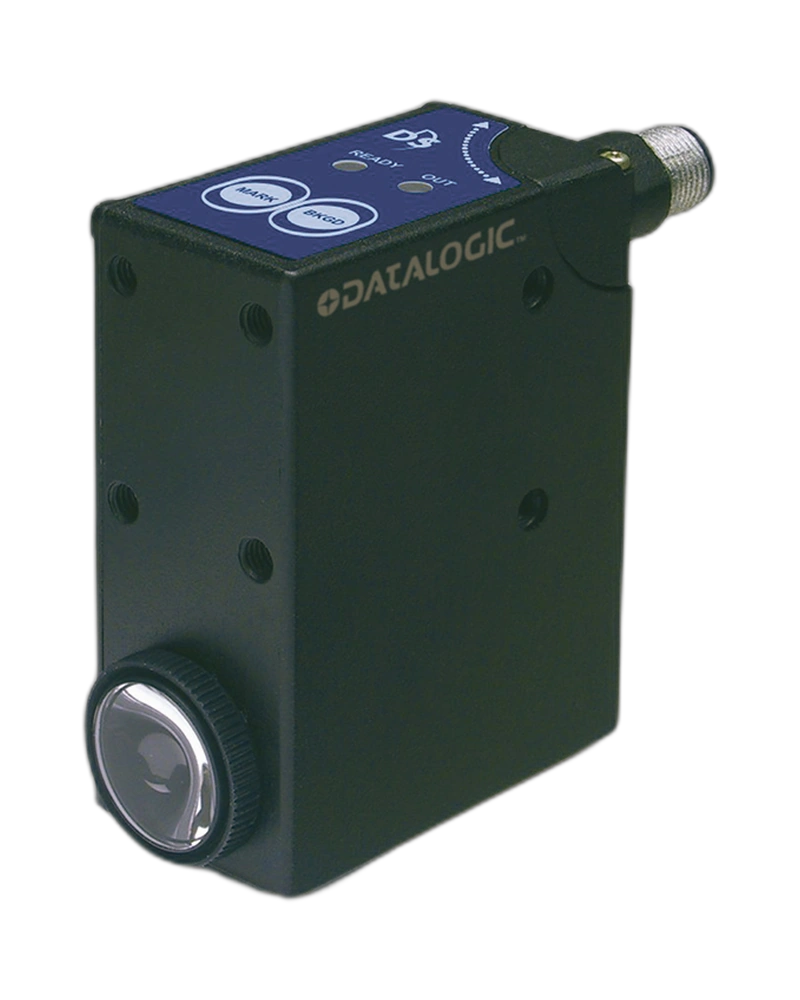

The Contrast Sensors - TLU - 954151440 is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing TLU 954151440 contrast sensor delivers precise optical detection with a spot dimension of Ø3 mm and a response time of 20 kHz. Designed for industrial environments, it operates within a temperature range of -10°C to 55°C and supports voltages from 10 to 30 VDC.
These sensors feature teach-in and remote settings for flexible configuration in industrial automation systems. The TLU 954151440 ensures reliable performance in harsh conditions with its robust IP67 rating and precise optical characteristics.
The documented configuration includes Response time: 0,025 (20 kHz); Nominal sensing distance: 3 | 10mm; Emission: LED White; Contrast mark detection: Contrast mark detection.
The documented configuration includes Output voltage drop: ≤2V; Output type: PNP L/D selectable; Operating Voltage: 10…30VDC; No-Load supply current: ≤ 80mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance; Output Function: L/D selectable; Output type: Output Function.
The documented configuration includes Spot dimension: Ø 3 mm; Dimensions: 31x58x82; Storage temperature: - 20°C…+70°C; Operating Temperature: -10°C ... 55°C; Mechanical Protection: IP67; Storage temperature: 20°C…+70°C; Operating Temperature: 10°C ... 55°C; Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing.
The documented configuration includes Short-circuit protection: YES; Reverse Polarity Protection: Yes; Housing material: Metal - Zamak; Active Head Material: Glass; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Contrast mark detection; Functions: Contrast mark detection; Application: Function Principle.
The documented configuration includes Connections: 2m cable; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6); 3: 10mm.
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V |
| Spot dimension | Ø 3 mm |
| Output type | PNP L/D selectable |
| Response time | 0,025 (20 kHz) |
| Operating Voltage | 10…30VDC |
| Dimensions | 31x58x82 |
| Connections | 2m cable |
| Storage temperature | - 20°C…+70°C |
| Operating Temperature | -10°C ... 55°C |
| Mechanical Protection | IP67 |
| Storage temperature | 20°C…+70°C |
| Operating Temperature | 10°C ... 55°C |
| Nominal sensing distance | 3 | 10mm |
| No-Load supply current | ≤ 80mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| 3 | 10mm |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Output Function | L/D selectable |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | Metal - Zamak |
| Active Head Material | Glass |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Contrast mark detection |
| Functions | Contrast mark detection |
| Emission | LED White |
| Application | Function Principle |
| Contrast mark detection | Contrast mark detection |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
