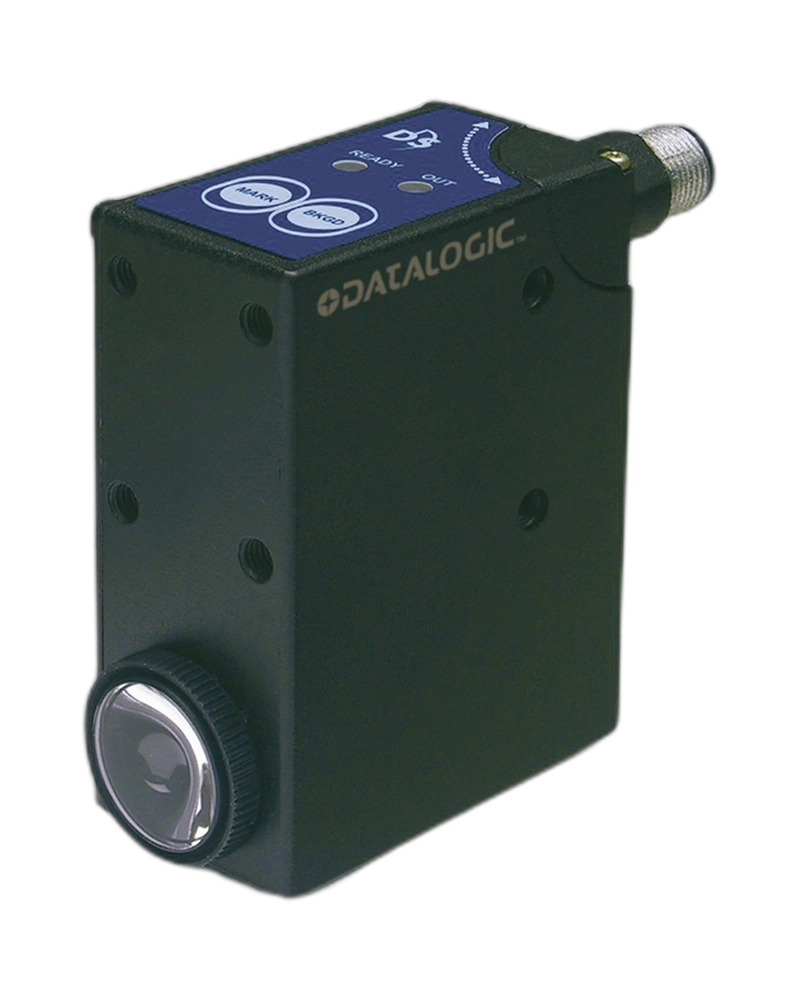

The Contrast Sensors - TLU - 954151360 is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The Datasensing Contrast Sensors TLU 954151360 is a precision optical sensor designed for industrial environments. It features a compact Ø3mm spot dimension and delivers reliable PNP output with L/D selectable configuration. The sensor operates within a wide voltage range of 10–30VDC and maintains performance across -10°C to 55°C operating temperatures.
Engineers and technicians select this sensor for its robust performance in demanding industrial settings. The TLU 954151360 supports teach-in and remote settings for flexible configuration without compromising reliability.
The documented configuration includes Response time: 0,025 (20 kHz); Nominal sensing distance: 9mm; Emission: LED White; Contrast mark detection: Contrast mark detection.
The documented configuration includes Output voltage drop: ≤2V; Output type: PNP L/D selectable; Operating Voltage: 10…30VDC; No-Load supply current: ≤ 80mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance; Output Function: L/D selectable; Output type: Output Function.
The documented configuration includes Spot dimension: Ø 3 mm; Dimensions: 31x58x82; Storage temperature: - 20°C…+70°C; Operating Temperature: -10°C ... 55°C; Mechanical Protection: IP67; Storage temperature: 20°C…+70°C; Operating Temperature: 10°C ... 55°C; Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing.
The documented configuration includes Short-circuit protection: YES; Reverse Polarity Protection: Yes; Housing material: Metal - Zamak; Active Head Material: Glass; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Contrast mark detection; Functions: Contrast mark detection; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6).
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V |
| Spot dimension | Ø 3 mm |
| Output type | PNP L/D selectable |
| Response time | 0,025 (20 kHz) |
| Operating Voltage | 10…30VDC |
| Dimensions | 31x58x82 |
| Connections | M12 plug |
| Storage temperature | - 20°C…+70°C |
| Operating Temperature | -10°C ... 55°C |
| Mechanical Protection | IP67 |
| Storage temperature | 20°C…+70°C |
| Operating Temperature | 10°C ... 55°C |
| Nominal sensing distance | 9mm |
| No-Load supply current | ≤ 80mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Output Function | L/D selectable |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | Metal - Zamak |
| Active Head Material | Glass |
| Diameter/Dimension | Cubic |
| Output type | Output Function |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Contrast mark detection |
| Functions | Contrast mark detection |
| Emission | LED White |
| Application | Function Principle |
| Contrast mark detection | Contrast mark detection |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
