The Contrast Sensors - TLU - 954151230 is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.

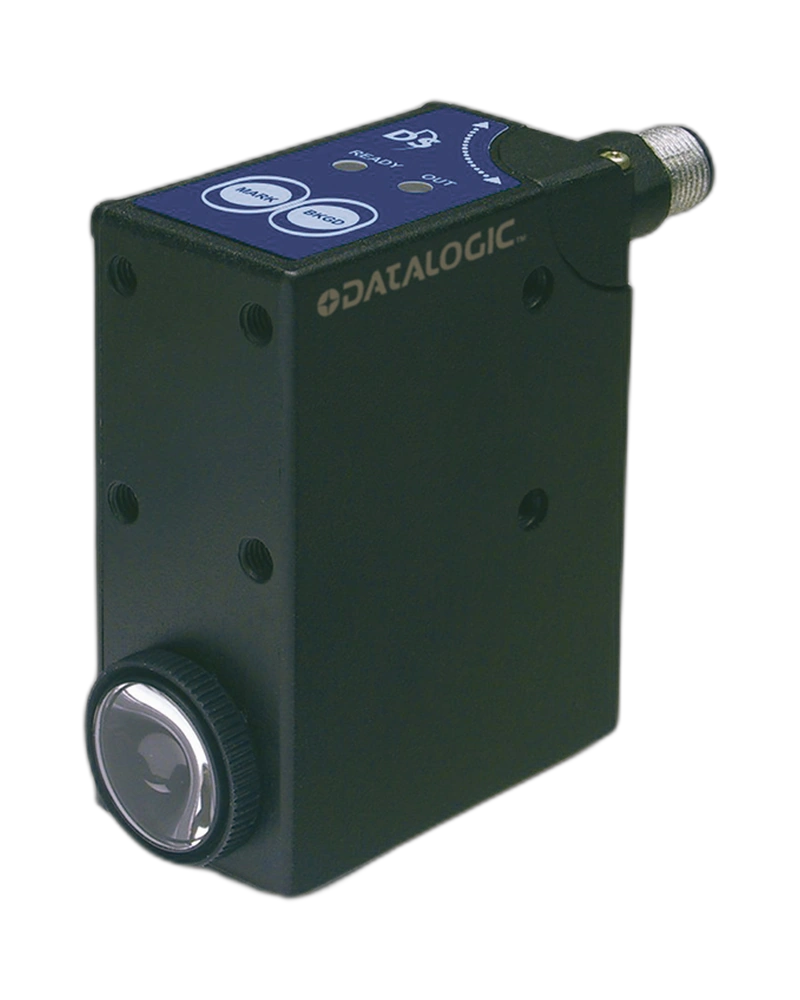

The Datasensing Contrast Sensors - TLU - 954151230 are high-precision optical sensors designed for demanding industrial environments. They feature a compact 31x58x82mm form factor with an M12 plug connection for reliable installation.
These sensors deliver precise detection capabilities in industrial automation systems while maintaining robust performance across extreme temperature ranges and harsh environments.
The documented configuration includes Response time: 0,05 (10kHz); Nominal sensing distance: 18mm; Emission: LED RGB; Contrast mark detection: Contrast mark detection.
The documented configuration includes Output voltage drop: ≤2V; Output type: NPN/PNP push-pull; Operating Voltage: 10…30VDC; No-Load supply current: ≤ 80mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance; Output type: Response time.
The documented configuration includes Spot dimension: 2 x 7mm; Dimensions: 31x58x82; Storage temperature: - 20°C…+70°C; Operating Temperature: -10°C ... 55°C; Mechanical Protection: IP67; Storage temperature: 20°C…+70°C; Operating Temperature: 10°C ... 55°C; Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing.
The documented configuration includes Short-circuit protection: YES; Reverse Polarity Protection: Yes; Housing material: Metal - Zamak; Active Head Material: Glass; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature.
The documented configuration includes >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Contrast mark detection; Functions: Contrast mark detection; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6).
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V |
| Spot dimension | 2 x 7mm |
| Output type | NPN/PNP push-pull |
| Response time | 0,05 (10kHz) |
| Operating Voltage | 10…30VDC |
| Dimensions | 31x58x82 |
| Connections | M12 plug |
| Storage temperature | - 20°C…+70°C |
| Operating Temperature | -10°C ... 55°C |
| Mechanical Protection | IP67 |
| Storage temperature | 20°C…+70°C |
| Operating Temperature | 10°C ... 55°C |
| Nominal sensing distance | 18mm |
| No-Load supply current | ≤ 80mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | Metal - Zamak |
| Active Head Material | Glass |
| Diameter/Dimension | Cubic |
| Output type | Response time |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Contrast mark detection |
| Functions | Contrast mark detection |
| Emission | LED RGB |
| Application | Function Principle |
| Contrast mark detection | Contrast mark detection |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
