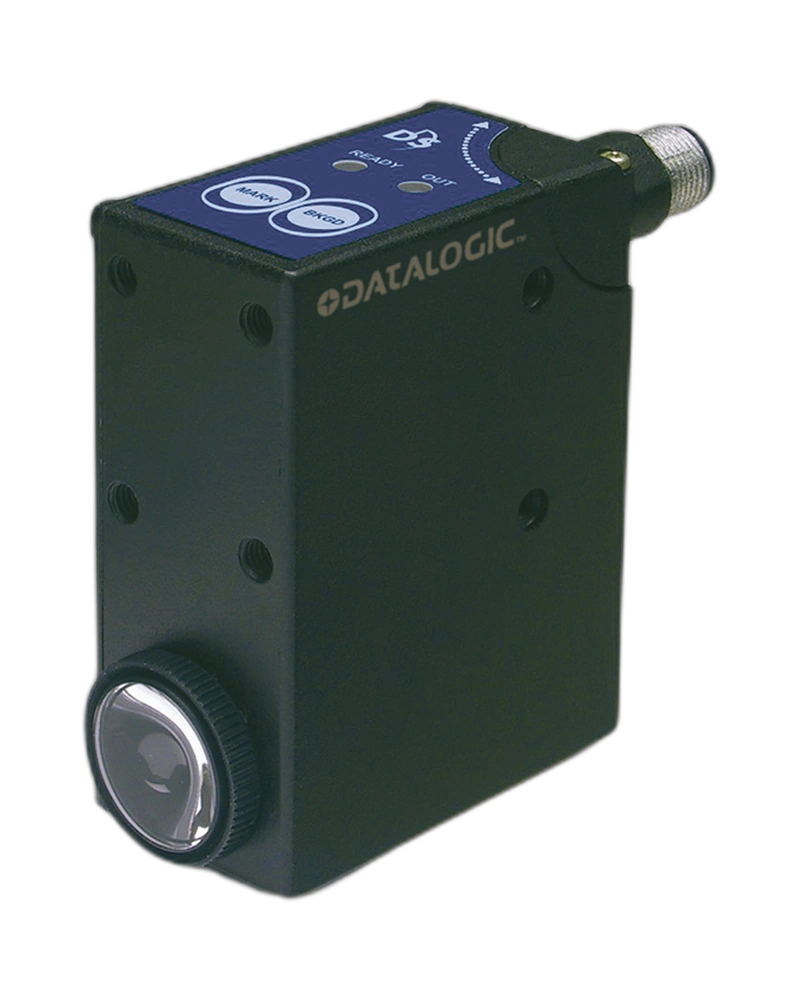

The Contrast Sensors - TLU - 954151220 is a industrial product from Datasensing. The documented values above identify the exact configuration and are the basis for technical selection and system integration.
The documented configuration includes Response time: 0,05 (10kHz); Nominal sensing distance: 22mm; Emission: LED RGB; Contrast mark detection: Contrast mark detection.
The documented configuration includes Output voltage drop: ≤2V; Output type: NPN/PNP push-pull; Operating Voltage: 10…30VDC; No-Load supply current: ≤ 80mA; Impulsive Overvoltage Protection: Yes; Impulsive Overvoltage Protection: Insulation resistance; Output type: Response time.
The documented configuration includes Dimensions: 31x58x82; Storage temperature: - 20°C…+70°C; Operating Temperature: -10°C ... 55°C; Mechanical Protection: IP67; Storage temperature: 20°C…+70°C; Operating Temperature: 10°C ... 55°C; Insulation resistance: >20 MΩ 500 Vdc, between electronics and housing; Short-circuit protection: YES.
The documented configuration includes Reverse Polarity Protection: Yes; Housing material: Metal - Zamak; Active Head Material: Glass; Diameter/Dimension: Cubic; Short-circuit protection: Reverse Polarity Protection; Material: Housing material; Active Head Material: Storage temperature; >20 MΩ 500 Vdc, between electronics and housing: Contact resistance.
The documented configuration includes Function Principle: Contrast mark detection; Functions: Contrast mark detection; Application: Function Principle.
The documented configuration includes Connections: M12 plug; Interference to external light: according to EN 60947-5-2 : 2020; Contact resistance: 500 Vac 1 min., between electronics and housing; Shocks and vibrations: 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6).
| Feature | Specification |
|---|---|
| Output voltage drop | ≤2V |
| Output type | NPN/PNP push-pull |
| Response time | 0,05 (10kHz) |
| Operating Voltage | 10…30VDC |
| Dimensions | 31x58x82 |
| Connections | M12 plug |
| Storage temperature | - 20°C…+70°C |
| Operating Temperature | -10°C ... 55°C |
| Mechanical Protection | IP67 |
| Storage temperature | 20°C…+70°C |
| Operating Temperature | 10°C ... 55°C |
| Nominal sensing distance | 22mm |
| No-Load supply current | ≤ 80mA |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Impulsive Overvoltage Protection | Yes |
| Impulsive Overvoltage Protection | Insulation resistance |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Housing material | Metal - Zamak |
| Active Head Material | Glass |
| Diameter/Dimension | Cubic |
| Output type | Response time |
| Short-circuit protection | Reverse Polarity Protection |
| Material | Housing material |
| Active Head Material | Storage temperature |
| Function Principle | Contrast mark detection |
| Functions | Contrast mark detection |
| Emission | LED RGB |
| Application | Function Principle |
| Contrast mark detection | Contrast mark detection |
| >20 MΩ 500 Vdc, between electronics and housing | Contact resistance |
